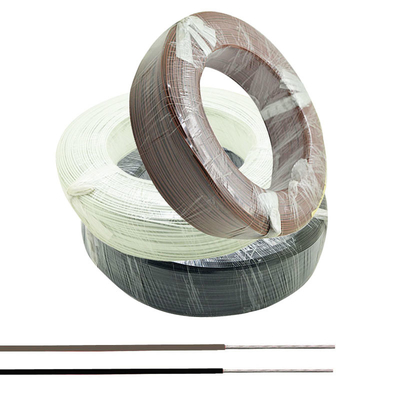

High Voltage PFA Insulated Wires

100m
MOQ
Negotiation
Price
High Voltage PFA Insulated Wires
Features Gallery Product Description Request A Quote
Features
Specifications
Insulated: PFA
Conductor: Silver Coated Stranded Copper
Working Temperature: -65 ~+250 ℃
Rated Voltage: 250V Or 600V
Wire Gauge: 18AWG, 20AWG, 22AWG, 24AWG, 26AWG, 28AWG..
Available Color: Red, Yellow, White, Black, Purple, Brown, Blue...
Service: OEM ODM Accept
High Light:

PFA Insulated Wires 24 Gauge

,

High Voltage PFA Insulated Wires

,

18AWG PFA Insulated Wires

Basic Infomation
Place of Origin: China
Brand Name: SANCO
Certification: ISO9001
Model Number: AFK-250
Payment & Shipping Terms
Packaging Details: Cable tray or Packing in roll with carton box
Delivery Time: 3~8days
Supply Ability: 250000M/Per Month
Product Description

18 20 22 24 Gauge High Voltage high temperature PFA Coated Heater Wire



About PFA wire

1. High and low temperature resistance: PFA wire long-term working temperature range is -80-+250℃, does not affect its insulation characteristics.
It is flexibility at low temperature.
In high temperature which can reach 300℃ in a short time, with non-combustion characteristics
2. Excellent corrosion resistance:PFA is almost insoluble in any solvent
3. Excellent weather resistance: PFA does not absorb moisture and not burn, it is extremely stable to oxygen and ultraviolet light



Applications

Used for Household appliances,Precision equipment,PTC thermistors,Temperature sensor,automotive internal connection, electronic and electrical appliances etc.



Using Condition

1. Rated voltage: 250V and 600V
2. Max. working temperature of the wire core: 200℃ and 250℃

3. In the ambient temperature not less than -65℃ conditions still maintain the winding

4. Insulation resistance is not less than 1x103MΩ
5. Wire relative humidity: 95%±3.
6. Test Voltage: (Under AC 50Hz )2000V/5min





Specification:

Insulated: PFA Insulated

Conductor Material: Silver Plated Copper or Tinned Plated Copper

Conductor Type: Stranded or Solid

Core Number: One Core, Two Cores, Three Cores, Four Cores..

Available Colors: Green, Red, Black, White, Yellow, Brown, Purple, Blue and etc...





pfa wire.jpg



type Name
AFK-250 PFA insulated silver plated copper high temperature wire
AFKP-250 PFA insulated silver plated copper shielded high temperature wire



Section area
(mm2)
Wire gauge
AWG
Conductor construction
piece/diameter
(mm)
Insulation thickness
(mm)
Outer diameter
(mm)
Max. Conductor resistance at 20
(Ω/Km)
0.05mm2 30AWG 7/0.1mm 0.2mm 0.7mm 376.2
0.2mm2 24AWG 7/0.2mm 0.30 1.2mm 83.5
0.35mm2 22AWG 19/0.16mm 0.35mm 1.4mm 49.5
0.5mm2 20AWG 19/0.18mm 0.35mm 1.6mm 36.7
1mm2 18AWG 19/0.26mm 0.35mm 2mm 19
1.2mm2 16AWG 19/0.28mm 0.35mm 2.1mm 15.3
2mm2 14AWG 19/0.37mm 0.4mm 2.65mm 9.45
8mm2 8AWG 133/0.28mm 0.5mm 5.2mm 2.16
20mm2 4AWG 133/0.45mm 0.6mm 8.0mm 0.886

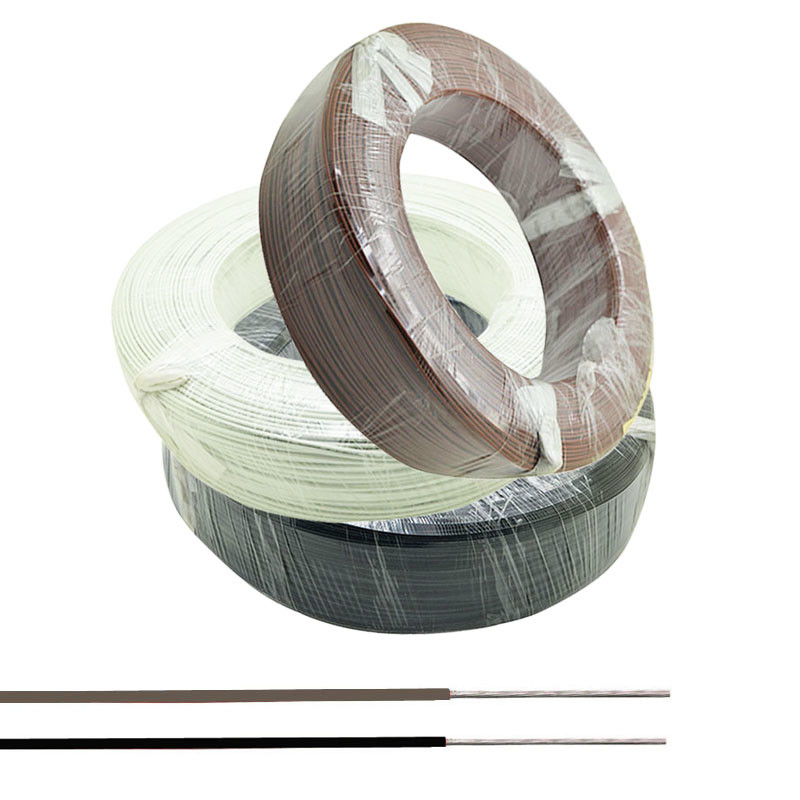

High Voltage PFA Insulated Wires 1

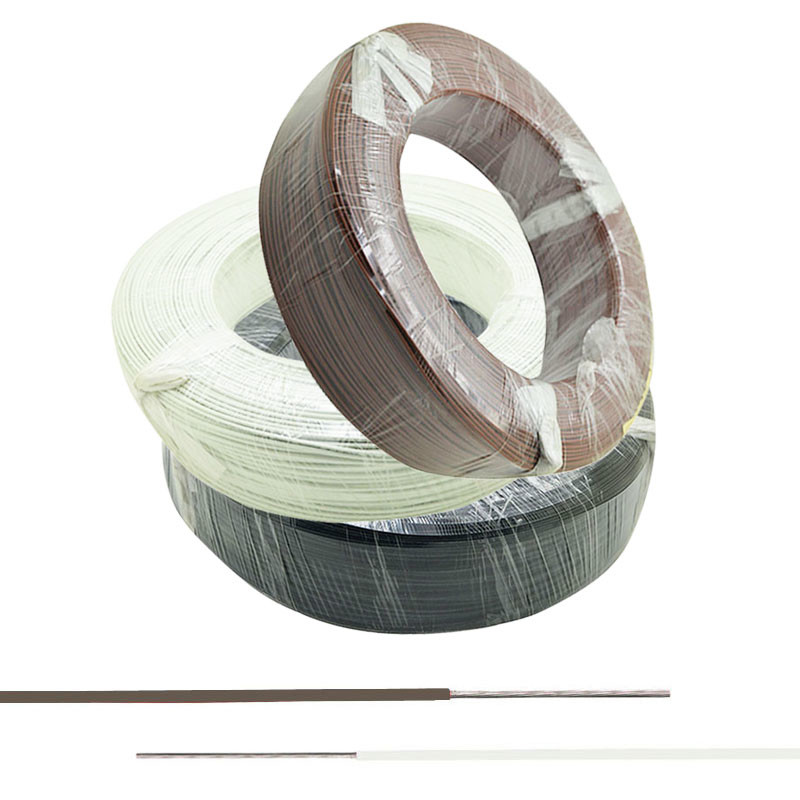

High Voltage PFA Insulated Wires 2














High Voltage PFA Insulated Wires 3High Voltage PFA Insulated Wires 4
