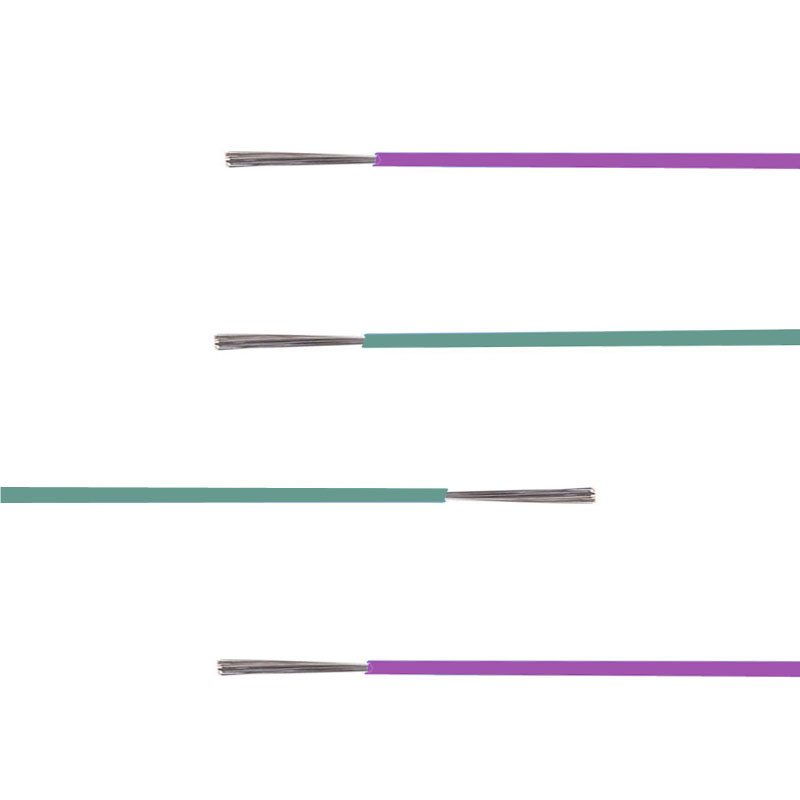

19 Strand Resistance to High Temperature high temperature Etfe Insulation Wire
Application:
ETFE insulated wires for household appliances, lighting fixtures, electronic equipment, temperature sensors, etc
Features:
1. Small diameter saves space
2. Excellent electric characteristics,mechanical strength heat resistance, chemical resistance, and flame resistance, low temperature characteristics.
3. High specific dielectric strength
4. Excellent corrosion resistance, almost insoluble in any organic solvent, oil resistance, strong acid, strong alkali, strong oxidant.
Properties:
Insulated: Etfe high temperature Insulation
Conductor: Tinned Copper or Bare Copper
Operating Temperature: -65℃ ~ +150℃/200℃
Voltage Rating: 600V or Lower
Insulation Resistance(at 20℃): ≥100MΩ.km
Available Colors: Purple, Red, Green, Brown, Grey, Blue, White, Yellow, Black and etc..
Cross-section area (mm²) |
Conductor (mm) |
Reference OD (mm) |
Reference weight kg/km |
Max.DC resistance at 20℃ (Ω/Km) |
FF40-1 | FF40-1 | |||
0.14 | 19/0.1 | 1.02 | 2.66 | 136.0 |
0.2 | 19/0.12 | 1.14 | 3.82 | 90.4 |
0.4/0.3 | 19/0.16 | 1.32 | 5.48 | 53.1 |
0.6/0.5 | 19/0.2 | 1.52 | 7.98 | 32.4 |
0.75 | 19/0.23 | 1.70 | 9.99 | 24.6 |
1.0 | 19/0.26 | 1.80 | 11.70 | 20.4 |
1.2 | 19/0.28 | 2.01 | 14.80 | 16.6 |
1.5 | 19/0.32 | 2.25 | 18.20 | 12.7 |
2.0 | 19/0.36 | 2.36 | 22.20 | 10.0 |
2.5 | 37/0.3 | 2.78 | 30.40 | 7.43 |
3.0 | 37/0.32 | 2.90 | 33.60 | 6.63 |
4.0 | 37/0.37 | 3.38 | 45.40 | 4.88 |
5.0 | 37/0.4 | 3.53 | 52.20 | 4.13 |
6.0 | 37/0.45 | 4.05 | 65.60 | 3.30 |
