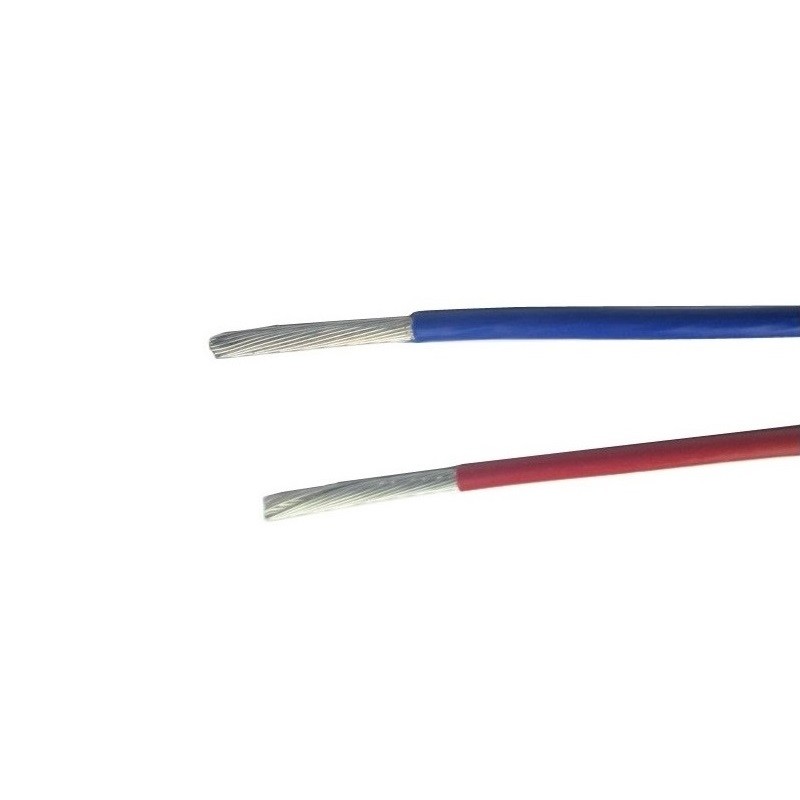

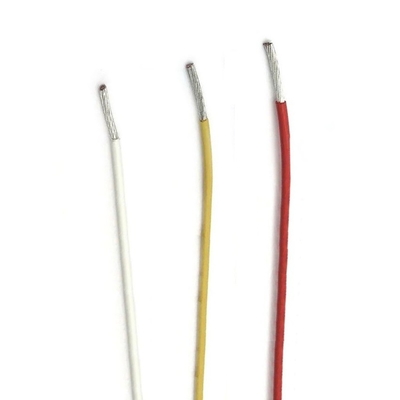

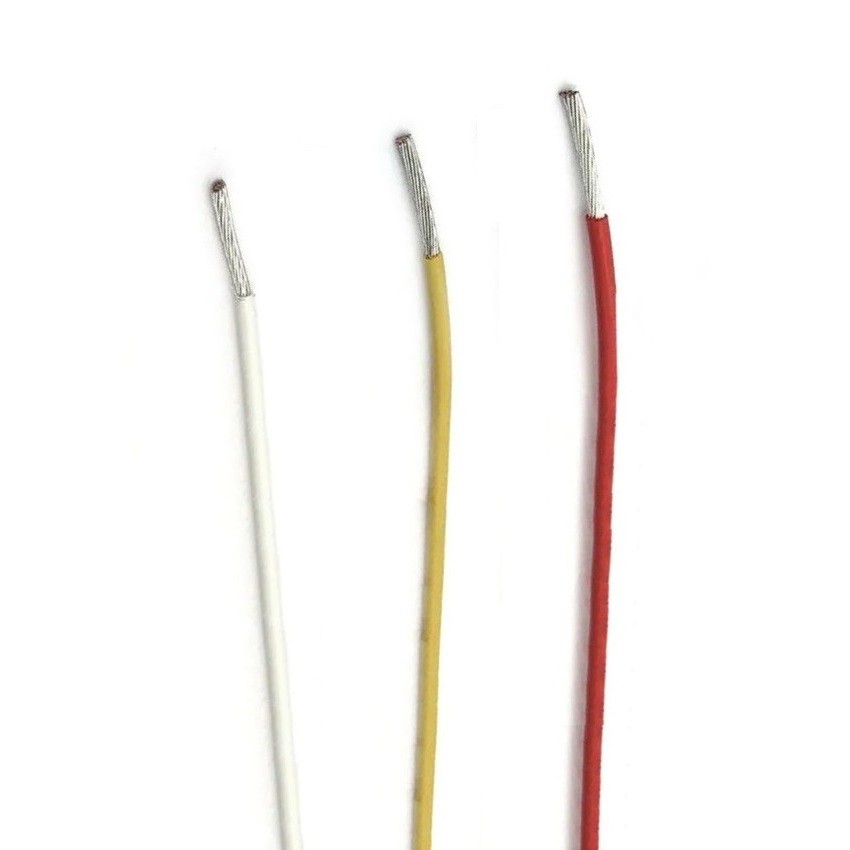

High Temp Resistant high temperature Tinned Stranded Copper Fep Lead Wire
1. FEP lead wire has excellent electrical insulation performance, high voltage resistance, low frequency loss, no moisture absorption, large insulation resistance; excellent flame resistance and resistance.
2. It has excellent corrosion resistance, oil resistance, strong acid, strong alkali resistance, strong oxidant, etc.;
3. The wire has excellent aging performance and long service life.
Applications of FEP lead wire
1. Aviation Wiring
2. Aerospace Wiring
3. Electronics Wiring
4. Medical Wiring
5. Appliance Wiring
6. Lighting Industry
7. Military Applications
8. Oil and Gas Industry Applications
9. Chemical Industry Applications
Properties of FEP lead wire
1. Rated voltage: AC600V or below
2. Working temperature: -65 ° C ~ +200 ° C
3. Conductor:tinned or silver plated copper wire, solid core or stranded
4. Insulated: FEP insulated
5. Color: red,yellow,blue,white,black,yellow green,brown etc.
| Type | Name |
| AF-200 | FEP insulation Silver plated copper conductor lead wire |
| AF-200-1 | FEP insulation Tinned copper conductor lead wire |
| AFP-200 | FEP insulation Tinned or silver coated copper conductor shielding lead wire |
| AFS-200 | FEP insulation Tinned or silver coated stranded copper twisted lead wire |
| AFSP-200 | FEP insulation Tinned or silver coated stranded copper twisted shield lead wire |
|
Wire gauge |
Cross-section area |
Conductor structure |
Max.resistance at 20℃ |
Max. OD of cable | Reference weight | |||||||
| AF-200 AF-200-1 |
AFP-200 | AF-200 AF-200-1 |
AFP-200 | |||||||||
| AWG | mm2 | mm | Tinned | Silver plalted | 250V | 600V | 250V | 600V | 250V | 600V | 250V | 600V |
| 36AWG | 0.013 | 7/0.05 | 1480 | 1450 | 0.65 | 0.85 | 1.1 | 1.3 | 0.6 | 1.04 | 2.9 | 3.96 |
| 32AWG | 0.035 | 7/0.08 | 590 | 580 | 0.75 | 0.95 | 1.2 | 1.4 | 0.9 | 1.41 | 3.5 | 4.61 |
| 30AWG | 0.05 | 7/0.10 | 390 | 380 | 0.85 | 1.05 | 1.35 | 1.6 | 1.17 | 1.71 | 4.64 | 5.92 |
| 28AWG | 0.07 | 7/0.12 | 280 | 260 | 0.9 | 1.1 | 1.4 | 1.65 | 1.48 | 2.1 | 5.17 | 6.5 |
| - | 0.1 | 7/0.14 | 210 | 180 | 1 | 1.2 | 1.55 | 1.75 | 1.82 | 2.44 | 5.73 | 7.1 |
| 26AWG | 0.14 | 7/0.16 | 138 | 130 | 1.1 | 1.3 | 1.65 | 1.95 | 2.2 | 2.86 | 6.33 | 7.73 |
| 24AWG | 0.2 | 19/0.12 | 100 | 84.5 | 1.2 | 1.4 | 1.75 | 1.98 | 3.08 | 3.8 | 7.65 | 9.13 |
| - | 0.3 | 7/0.23 | 63 | 61 | 1.25 | 1.48 | 1.8 | 2.05 | 4.8 | 5.6 | 9 | 10.3 |
| 22AWG | 0.35/0.40 | 19/0.16 | 58 | 49.5 | 1.4 | 1.6 | 1.95 | 2.2 | 4.82 | 5.7 | 10.1 | 11.7 |
| 20AWG | 0.5 | 19/0.18 | 41.3 | 37.1 | 1.6 | 1.8 | 2.2 | 2.4 | 6.3 | 7.3 | 12.2 | 14.1 |
| - | 0.6 | 19/0.20 | 32.5 | 30.1 | 1.75 | 1.98 | 2.3 | 2.5 | 9.3 | 10.6 | 15 | 16 |
| - | 0.75/0.80 | 19/0.23 | 26.2 | 22.7 | 1.8 | 2.1 | 2.4 | 2.6 | 9.5 | 10.7 | 16.5 | 18.4 |
| 18AWG | 1 | 19/0.26 | 20.5 | 19 | 2 | 2.2 | 2.6 | 2.9 | 11.7 | 13.1 | 19.3 | 21.3 |
| 16AWG | 1.2 | 19/0.28 | 18.3 | 15.3 | 2.2 | 2.4 | 2.8 | 3.1 | 13.4 | 14.7 | 21.2 | 23.4 |
| - | 1.5 | 19/0.32 | 13.6 | 11.7 | 2.4 | 2.6 | 3.1 | 3.3 | 22.9 | 19.3 | 26.7 | 29 |
| 14AWG | 2 | 19/0.37 | 10.2 | 9.45 | 2.7 | 2.9 | 3.4 | 3.6 | 24.6 | 32.8 | 35.3 | |
| - | 2.5 | 37/0.30 | 8 | 7.4 | 3.4 | 3.6 | 4.2 | 4.4 | 30 | 32.5 | 42.1 | 44.8 |
| 12AWG | 3 | 37/0.32 | 6.53 | 6.03 | 3.6 | 3.8 | 4.4 | 4.6 | 34.1 | 36.3 | 46.2 | 49.1 |
| - | 4 | 37/0.37 | 5.1 | 5 | 4 | 4.2 | 4.8 | 5.1 | 44.2 | 46.5 | 61.2 | 64.5 |
| 10AWG | 5 | 37/0.41 | 4.2 | 4.1 | 4.5 | 4.7 | 5.3 | 5.6 | 55.7 | 58.4 | 74.9 | 78.6 |
| - | 6 | 37/0.45 | 3.35 | 3.3 | 4.8 | 5 | 5.7 | 5.9 | 65.8 | 68.6 | 86.3 | 90.1 |
| 8AWG | 8 | 133/0.28 | 2.37 | 2.19 | 6 | 6.5 | 6.8 | 7.3 | 107 | 117.7 | 132.5 | 145 |
Noted:Specification and core no. are not limited to above regulation,they could be customized.
