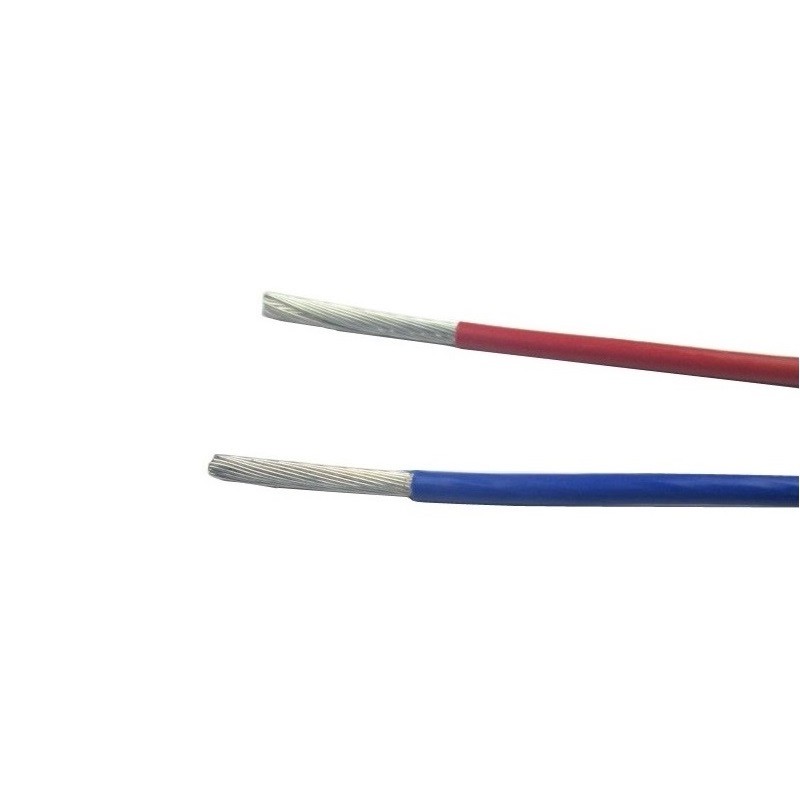

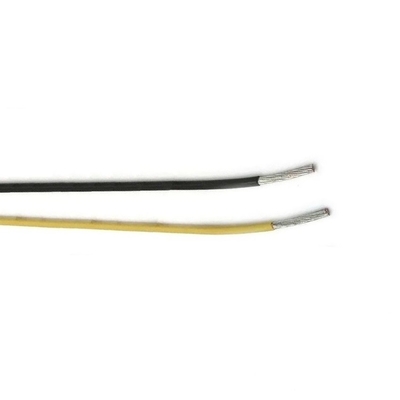

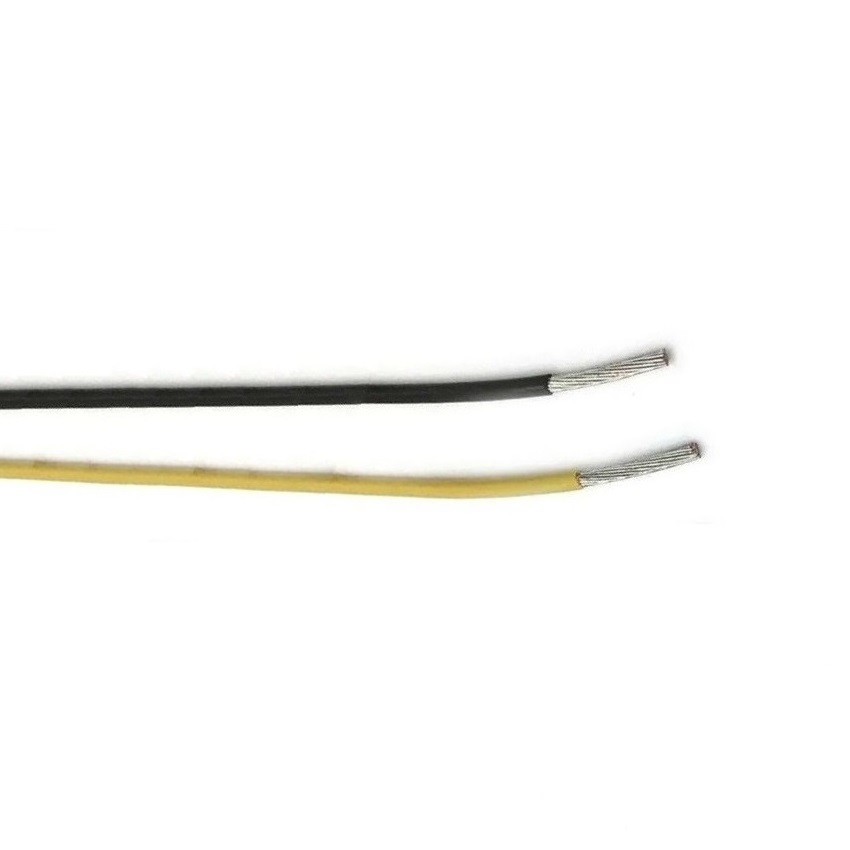

High Temperature Resistant Fep Insulated Special Electrical Wire
Applications of FEP insulated wire
1. Aviation Wiring
2. Aerospace Wiring
3. Electronics Wiring
4. Medical Wiring
5. Appliance Wiring
6. Lighting Industry
7. Military Applications
8. Oil and Gas Industry Applications
9. Chemical Industry Applications
Features
1. It has excellent corrosion resistance, oil resistance, strong acid, strong alkali resistance, strong oxidant, etc.;
2. It has excellent electrical insulation performance, high voltage resistance, low frequency loss, no moisture absorption, large insulation resistance; excellent flame resistance and resistance.
3. It has excellent aging performance and long service life.
Properties of FEP insulated wire
1. Insulation:FEP insulated
2. Working Temperature:-65~200℃
3. Conductor Materials:Tinned or Silver plated copper
4. Wire Gauge:36AWG~10AWG,stranded or solid conductor.
5. Rated voltage:3
00V/600V
| Type | Name |
| AF-200 | FEP insulation Silver plated copper conductor lead wire |
| AF-200-1 | FEP insulation Tinned copper conductor lead wire |
| AFP-200 | FEP insulation Tinned or silver coated copper conductor shielding lead wire |
| AFS-200 | FEP insulation Tinned or silver coated stranded copper twisted lead wire |
| AFSP-200 | FEP insulation Tinned or silver coated stranded copper twisted shield lead wire |
| Section area (mm2) |
Conductor construction piece/diameter (mm) |
Insulation thickness (mm) |
Outer diameter (mm) |
Max. Conductor resistance at 20℃ (Ω/Km) |
Packing length (m) |
| 0.014mm2 | 7/0.05 | 0.15 | 0.45 | 1454 | 500 |
| 0.035mm2 | 7/0.08 | 0.15 | 0.6 | 568 | 500 |
| 0.05mm2 | 7/0.1 | 0.15 | 0.6 | 356 | 500 |
| 0.08mm2 | 7/0.12 | 0.2 | 0.76 | 245 | 500 |
| 0.12mm2 | 7/0.15 | 0.25 | 0.85 | 163 | 500 |
| 0.2mm2 | 7/0.2 | 0.25 | 1.1 | 90.4 | 200 |
| 0.35mm2 | 19/0.16 | 0.25 | 1.3 | 53.1 | 200 |
| 0.5mm2 | 19/0.18 | 0.25 | 1.4 | 40.1 | 200 |
| 0.75mm2 | 19/0.23 | 0.25 | 1.7 | 24.6 | 200 |
| 1mm2 | 19/0.26 | 0.25 | 1.8 | 20.4 | 200 |
| 1.2mm2 | 19/0.28 | 0.3 | 2 | 16.6 | 200 |
| 1.5mm2 | 19/0.32 | 0.3 | 2.2 | 12.7 | 200 |
| 2mm2 | 19/0.37 | 0.3 | 2.45 | 10 | 100 |
| 2.5mm2 | 19/0.41 | 0.4 | 2.95 | 7.43 | 100 |
| 4mm2 | 37/0.37 | 0.4 | 3.4 | 4.88 | 100 |
| 6mm2 | 37/0.45 | 0.5 | 4.2 | 3.3 | 100 |
| 8mm2 | 133/0.28 | 0.5 | 5.2 | 2.3 | 100 |
| 10mm2 | 133/0.32 | 0.5 | 5.8 | 1.82 | 100 |
| 16mm2 | 133/0.39 | 0.6 | 7 | 1.22 | 100 |
| 20mm2 | 133/0.45 | 0.6 | 8 | 0.919 | 100 |
| 25mm2 | 196/0.4 | 0.6 | 8.8 | 0.795 | 100 |
| 35mm2 | 494/0.3 | 0.7 | 10.4 | 0.565 | 100 |
| 50mm2 | 396/0.4 | 0.8 | 12.2 | 0.393 | 100 |
| 70mm2 | 551/0.4 | 1 | 14.6 | 0.277 | 100 |
| 95mm2 | 760/0.4 | 1.2 | 17.2 | 0.21 | 100 |
Noted:Specification and core no. are not limited to above regulation,they could be customized.
