Stranded FEP Insulated Wire FEP Cable Temperature Resistant

100m
MOQ
Negotiation
Price
Stranded FEP Insulated Wire FEP Cable Temperature Resistant
Features Gallery Product Description Request A Quote
Features
Specifications
Insulated: FEP High Temperature Insulated
Temperature Range: -65℃~200℃
Core: Single Core Or Multi Cores
Gauge: 10 ~ 24AWG
Conductor Materials: Silver Plated Or Tinned Plated Copper
Rated Voltage: AC 600V Or Lower
Colors: Blue, Yellow, Red, White, Yellow, Purple, Green..
Conductor Type: Stranded
Warranty: One Year
Customized Service: Yes
High Light:

Temperature Resistant FEP Insulated Wire

,

Stranded FEP Insulated Wire

,

Stranded FEP cable

Basic Infomation
Place of Origin: China
Brand Name: SANCO
Certification: ISO9001
Model Number: AF-200
Payment & Shipping Terms
Packaging Details: Cable tray or Packing in roll with carton box
Delivery Time: 3~8days
Supply Ability: 250000M/Per Month
Product Description

 FEP Insulated Tinned Copper Conductor Temperature Resistant Wire



Performance:

Excellent corrosion resistance, almost insoluble in any organic solvent, resistant to oil, strong acid, strong alkali, strong oxidant, etc.; excellent electrical insulation FEP wire. FEP wire can withstand high AC 600V voltage, low frequency loss, no moisture absorption, large insulation resistance; excellent flame resistance, aging resistance and long service life.



Application:
Widely used in the electronics industry, it can be used for temperature compensation wires, low temperature resistant wires, high temperature heating wires, aging resistant wires and flame retardant wires; in the household appliance industry, it can be used in air conditioners, microwave ovens, electronic disinfection cabinets, rice cookers, electronic hot water bottles, Internal wiring of electric heaters, electric ovens, electric woks, lighting fixtures, etc.



Properties:

1. Rated voltage: 600V or lower
2. Working temperature: -65 ~ +200 Degree

3. Conductor Type: Stranded
4. Conductor Materials: Silver Plated Copper
5. Insulated: FEP Insulation

6. AWG: 10AWG~24AWG..
7. Color: Yellow, Blue, White, Black, Red, Purple, Blue, Green...



Type
FEP Insulated Silver plated copper conductor lead wire
FEP Insulated Tinned copper conductor lead wire
FEP Insulated Tinned or silver coated copper conductor shielding lead wire
FEP Insulated Tinned or silver coated stranded copper twisted lead wire
FEP Insulated Tinned or silver coated stranded copper twisted shield lead wire

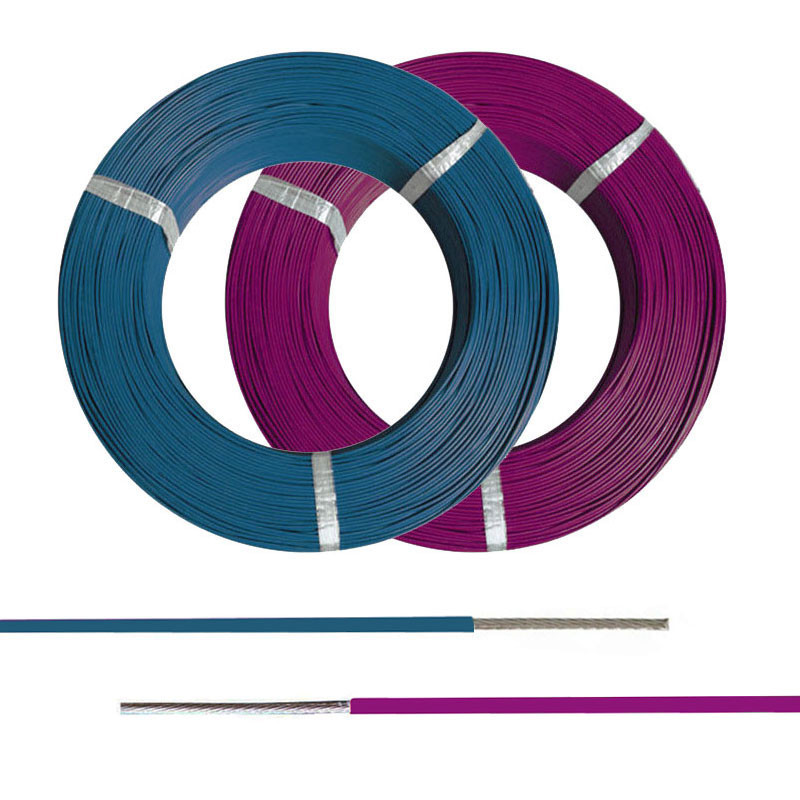

Stranded FEP Insulated Wire FEP Cable Temperature Resistant 0

Wire gauge
(AWG)
Section area
(mm2)
Conductor construction
piece/diameter
(mm)
Insulation thickness
(mm)
Outer diameter
(mm)
Max. Conductor resistance at 20
(Ω/Km)
Packing length
(m)
10awg 5mm2 37x0.43mm 0.33mm 3.67 3.546 305
12awg 3mm2 19x0.49mm 0.33mm 3.11 5.64 305
14awg 2mm2 19x0.37mm 0.33mm 2.51 8.96 305
16awg 1.2mm2 19x0.3mm 0.33mm 2.16 14.6 305
17awg   19x0.26mm 0.33mm 1.96 18.3 305
18awg 1mm2 19x0.23mm 0.33mm 1.81 23.2 305
20awg 0.5mm2 19x0.2mm 0.33mm 1.61 36.7 305
1x0.8mm 0.33mm 1.46 35.2 305
22awg 0.3mm2 19x0.16mm 0.33mm 1.46 59.4 610
1x0.65mm 0.33mm 1.31 56.4 610
24awg 0.2mm2 7x0.2mm 0.33mm 1.26 94.2 610
1x0.5mm 0.33mm 1.16 89.3 610
26awg 0.12mm2 7x0.16mm 0.33mm 1.14 150 610
1x0.4mm 0.33mm 1.06 143 610
28awg 0.08mm2 7x0.12mm 0.33mm 1.02 239 610
1x0.32mm 0.33mm 0.98 227 610
30awg 0.06mm2 7x0.1mm 0.33mm 0.96 381 610
1x0.254mm 0.33mm 0.914 361 610
32awg 0.035mm2 7x0.08mm 0.41mm 1.06 664.8 610
1x0.2mm 0.41mm 1.02 588.3 610

Noted: Specification and core no. are not limited to above regulation, they could be customized.

Stranded FEP Insulated Wire FEP Cable Temperature Resistant 1





Stranded FEP Insulated Wire FEP Cable Temperature Resistant 2
