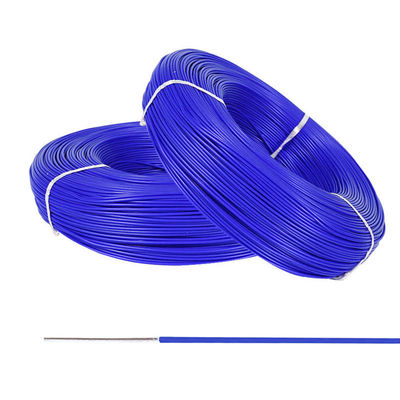

18AWG Single Core Tin Plated Copper FEP Fluoroplatic Heating Wire
Performance:
1. Excellent corrosion resistance, oil resistance, strong acid resistance, strong alkali resistance, strong oxidant, etc.
2. Excellent electrical insulation performance, high voltage resistance, high frequency loss, no moisture absorption, large insulation resistance.
3. Excellent flame resistance, aging resistance, long service life.
Application:
It can be used for the internal wiring of air conditioner, microwave oven, electronic disinfection cabinet, electronic hot water bottle, oven, frying pan, lamps and lanterns, etc.
Properties:
1. Rated voltage: 600V or below
2. Working temperature: -65 ° C ~ +200 ° C
3. Conductor: Tin Plated Stranded Copper
4. Insulated: FEP high temperature
5. Wire Gauge: 18AWG, 20AWG, 22AWG, 24AWG..
6. Color: Yellow, Blue, White, Black, Red, Purple, Blue, Green, Brown, Transparent...
Type |
FEP Insulation Silver plated copper conductor lead wire |
FEP Insulation Tinned copper conductor lead wire |
FEP Insulation Tinned or silver plated copper conductor shielding lead wire |
FEP Insulation Tinned or silver plated stranded copper twisted lead wire |
FEP Insulation Tinned or silver plated stranded copper twisted shield lead wire |
Wire gauge (AWG) |
Section area (mm2) |
Conductor construction piece/diameter (mm) |
Insulation thickness (mm) |
Outer diameter (mm) |
Max. Conductor resistance at 20℃ (Ω/Km) |
Packing length (m) |
10awg | 5mm2 | 37x0.43mm | 0.33mm | 3.67 | 3.546 | 305 |
12awg | 3mm2 | 19x0.49mm | 0.33mm | 3.11 | 5.64 | 305 |
14awg | 2mm2 | 19x0.37mm | 0.33mm | 2.51 | 8.96 | 305 |
16awg | 1.2mm2 | 19x0.3mm | 0.33mm | 2.16 | 14.6 | 305 |
17awg | 19x0.26mm | 0.33mm | 1.96 | 18.3 | 305 | |
18awg | 1mm2 | 19x0.23mm | 0.33mm | 1.81 | 23.2 | 305 |
20awg | 0.5mm2 | 19x0.2mm | 0.33mm | 1.61 | 36.7 | 305 |
1x0.8mm | 0.33mm | 1.46 | 35.2 | 305 | ||
22awg | 0.3mm2 | 19x0.16mm | 0.33mm | 1.46 | 59.4 | 610 |
1x0.65mm | 0.33mm | 1.31 | 56.4 | 610 | ||
24awg | 0.2mm2 | 7x0.2mm | 0.33mm | 1.26 | 94.2 | 610 |
1x0.5mm | 0.33mm | 1.16 | 89.3 | 610 | ||
26awg | 0.12mm2 | 7x0.16mm | 0.33mm | 1.14 | 150 | 610 |
1x0.4mm | 0.33mm | 1.06 | 143 | 610 | ||
28awg | 0.08mm2 | 7x0.12mm | 0.33mm | 1.02 | 239 | 610 |
1x0.32mm | 0.33mm | 0.98 | 227 | 610 | ||
30awg | 0.06mm2 | 7x0.1mm | 0.33mm | 0.96 | 381 | 610 |
1x0.254mm | 0.33mm | 0.914 | 361 | 610 | ||
32awg | 0.035mm2 | 7x0.08mm | 0.41mm | 1.06 | 664.8 | 610 |
1x0.2mm | 0.41mm | 1.02 | 588.3 | 610 |
Noted:Specification and core no. are not limited to above regulation,they could be customized.
