PFA PTFE FEP ETFE High Temperature Wires Silver Coated high temperature Wire

100m
MOQ
Negotiation
Price
PFA PTFE FEP ETFE High Temperature Wires Silver Coated high temperature Wire
Features Gallery Product Description Request A Quote
Features
Specifications
Features: High Temp Resistance
Insulation: PFA PTFE FEP ETFE
Max. Working Temperature: -65℃~+250℃
Conductor: Silver Coated
Wire Gauge: 32awg To 10awg
Color: 9 Basic Colors
Rated Voltage: AC 600V 250V
Shelf Life: One Year
Service: OEM ODM Accept
Customized Product: Available As Per Technical Data
High Light:

PTFE High Temperature Wires

,

PFA High Temperature Wires

,

Silver ptfe high temperature stranded wire

Basic Infomation
Place of Origin: China
Brand Name: SANCO
Certification: ISO9001
Model Number: AFR-250,AF-200,AFK-250
Payment & Shipping Terms
Packaging Details: Cable tray or Packing in roll with carton box
Delivery Time: 3~8days
Supply Ability: 250000M/Per Month
Product Description

Ptfe Fep Pfa high temperature Insulated Two Core Tinned Copper Wire Supplier



These wiring kinds usually consist of a conductor (tinned copper, silver plated, nickel-coated copper )and insulation. They may also have an extra jacket that consists of a fibreglass material.



A high temperature wire, is often defined as a wire that can tolerate 125 ℃ or higher temperatures. It can also mean they can manage not just heat but also the cold. High temp wires can also handle ratings as low as 90 ℃. From its conductor to its insulator, high temperature wire constructions are rated 125, 150, 200, 250 ℃.



Sanco cable can provide standard off-the-shelf high temperature wire or cable as well as design a product that will suit any high temperature environment or application. Common high temperature applications include:

1. Aviation Wiring
2. Aerospace Wiring
3. Electronics Wiring
4. Medical Wiring
5. Appliance Wiring
6. Lighting Industry
7. Military Applications
8. Oil and Gas Industry Applications
9. Chemical Industry Applications





Wire gauge Section area
(mm2)
Conductor construction
piece/diameter
(mm)
Insulation thickness
(mm)
Reference OD
(mm)
Max. Conductor resistance at 20
(Ω/Km)
28awg 0.08mm2 7/0.12 0.15 0.66 239
26awg 0.14mm2 7/0.16 0.15 0.78 239
24awg 0.2mm2 7/0.2 0.15 0.9 150
22awg 0.4/0.3mm2 19/0.16 0.15 1.1 94.2
20awg 0.6/0.5mm2 19/0.2 0.15 1.3 32.4
18awg 1mm2 19/0.26 0.2 1.7 20.4
16awg 1.2mm2 19/0.28 0.2 1.8 16.6
14awg 2mm2 19/0.36 0.33 2.46 10
12awg 3mm2 37/0.32 0.33 2.9 6.63
10awg 5mm2 37/0.4 0.33 3.46 4.13

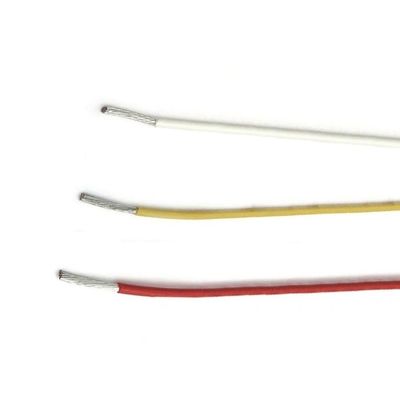

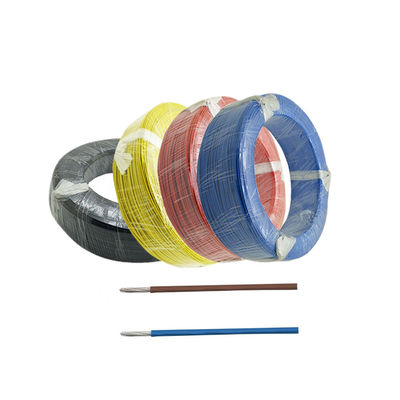

PFA PTFE FEP ETFE High Temperature Wires Silver Coated high temperature Wire 0PFA PTFE FEP ETFE High Temperature Wires Silver Coated high temperature Wire 1
