125V 300V 600V PTFE Insulated Wires high temperature Coated Copper Wire

100m
MOQ
Negotiation
Price
125V 300V 600V PTFE Insulated Wires high temperature Coated Copper Wire
Features Gallery Product Description Request A Quote
Features
Specifications
Features: High Temperature Resistant
Application: Electrical Connection
Insulation: High Temperature Covered Copper Wire
Condouctor: Silver-plated Copper Wire
Max. Temperature: -60~+250℃
Wire Gauge: 32awg~10awg
Color: 9 Colors
Rated Voltage: 125V, 300V, 600V
Shelf Life: 1 Year
Service: OEM ODM Accept
Customized Product: Available As Per Detailed Technical Data
High Light:

125V PTFE Insulated Wires

,

high temperature coated PTFE Insulated Wires

,

300V high temperature coated copper wire

Basic Infomation
Place of Origin: China
Brand Name: SANCO
Certification: ISO9001
Model Number: AFR-250
Payment & Shipping Terms
Packaging Details: Cable tray / Packing in roll with carton box
Delivery Time: 3~8days
Payment Terms: T/T, L/C
Supply Ability: 250000M/Per Month
Product Description

Ptfe High Temperature Stranded Wire,high temperature Covered Copper Wire



It has excellent corrosion resistance, oil resistance, strong acid, strong alkali resistance, strong oxidant, etc. Excellent electrical insulation performance, high voltage resistance, low loss at high frequency, no moisture absorption, large insulation resistance; It has excellent fire resistance, aging resistance and long service life.



Application:

1. In the electronic industry, can be used for temperature compensation wire, low temperature resistance wire, high temperature heating wire, aging resistance wire and flame retardant wire;
2. In household appliance industry, it can be used for internal wiring of air conditioner, microwave oven, electronic disinfection cabinet, electric rice fort, electronic hot water bottle, electric heater, electric oven, electric frying pan, lamps and lanterns, etc.



Property:

1. Rated voltage: 125V, 300V, 600V
2. Working temperature: -60 ~ 250℃, short-term temperature 350℃
3. Conductor bare copper stranded, silver plated copper stranded or nickel plated copper stranded
4. Insulation: PTFE film (PTFE film wrapped insulation)
5. Color: red/yellow/blue/white/black/gray/brown/purple/green etc.
6. Test voltage: 1000V, 1500V, 2500V

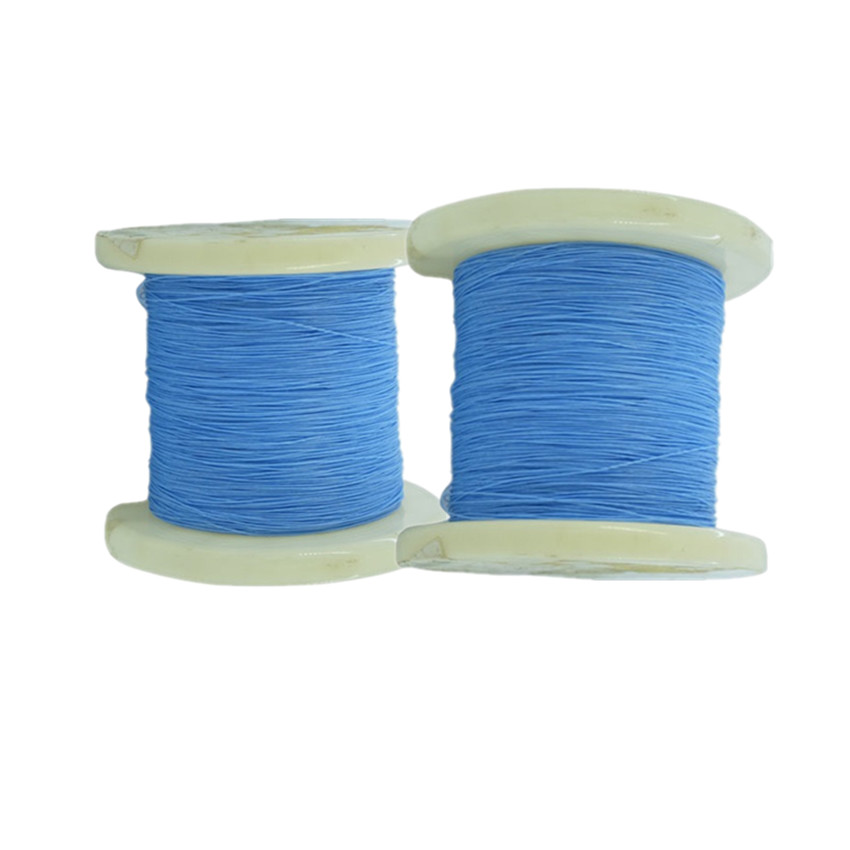

125V 300V 600V PTFE Insulated Wires high temperature Coated Copper Wire 0



Conductor
Insulation thickness
mm
Wire outer diameter
mm
Resistance of insualtion
Nominal section area
mm2
single wire x dia. Conductor Dia.
mm
110V 250V 600V AFR-250 type AFRP-250 type MΩ·km
mm 110V 250V 600V 110V 250V 600V
0.013 7×0.05 0.15 0.1 0.15 0.25 0.38 0.49 0.71 0.7 0.82 1.02 5×103
0.035 7×0.08 0.24 0.1 0.15 0.25 0.47 0.58 0.81 0.85 0.91 1.14
0.06 7×0.10 0.3 0.1 0.15 0.25 0.55 0.65 0.87 0.9 0.97 1.2
0.08 7×0.12 0.36 0.1 0.15 0.25 0.6 0.7 0.93 1 1.03 1.26
19×0.07
0.1 7×0.14 0.42 0.1 0.15 0.25 0.7 0.83 1 1.05 1.15 1.3
19×0.08
0.14 7×0.16 0.5 0.1 0.15 0.25 0.73 0.85 1.05 1.05 1.18 1.45
19×0.10
0.2 7×0.20 0.6   0.15 0.3 0.85 0.97 1.3 1.3 1.4 1.7
19×0.12
0.35 7×0.25 0.8   0.15 0.3   1.2 1.5   1.6 1.9
19×0.16
0.5 7×0.30 0.9   0.15 0.3   1.3 1.6   1.7 2
19×0.18
0.8 7×0.37 1.1   0.2 0.3   1.65 1.85   2.05 2.3
19×0.23
1 19×0.26 1.3   0.2 0.3   1.88 2   2.25 2.45
1.2 19×0.28 1.4   0.2 0.3   1.95 2.15   2.38 2.55
1.5 19×0.32 1.6   0.2 0.3   2.15 2.35   2.63 2.83
2 19×0.37 1.85   0.2 0.3   2.4 2.6   2.97 3.08
2.5 19×0.14 2.34   0.2 0.35     2.95   3.2 3.43
49×0.26
3 49×0.28 2.52   0.2 0.35     3.1   3.37 3.5
4 49×0.32 2.88     0.35     3.52     4.12
6 49×0.39 3.51     0.35     4.15     4.75

Noted:Specification and core no. are not limited to above regulation,they could be customized.
