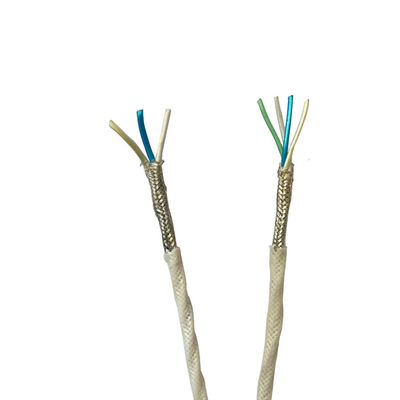

4 Core high temperature Shielded Wire,PFA PTFE ETFE FEP High Temp Cable
Application:
1. In the electronic industry, can be used for temperature compensation wire, low temperature resistance wire, high temperature heating wire, aging resistance wire and flame retardant wire;
2. In household appliance industry, it can be used for internal wiring of air conditioner, microwave oven, electronic disinfection cabinet, electric rice fort, electronic hot water bottle, electric heater, electric oven, electric frying pan, lamps and lanterns, etc.
Features:
It has excellent corrosion resistance, oil resistance, strong acid, strong alkali resistance, strong oxidant, etc. Excellent electrical insulation performance, high voltage resistance, low loss at high frequency, no moisture absorption, large insulation resistance; It has excellent fire resistance, aging resistance and long service life.
Property:
1. Conductor bare copper stranded, silver plated copper stranded or nickel plated copper stranded
2. Insulation: PTFE film (PTFE film wrapped insulation)
3. Silver or tinned copper wire braided
4. Rated voltage: 125V, 300V, 600V
5. Working temperature: -60 ~ 250℃, short-term temperature 350℃
6. Color: red/yellow/blue/white/black/gray/brown/purple/green etc.
7. Test voltage: 1000V, 1500V, 2500V
| Wire gauge | Cross-section | Conductor | Max.OD of wire mm |
Reference weight kg/km |
||||
| AF | AFP | AFPF | AF | AFP | AFPF | |||
| AF-1 | AFP-1 | AFRPF-200 | AF-1 | AFP-1 | AFRPF-200 | |||
| AFR-200 | AFRP-200 | AFRPF-250 | AFR-200 | AFRP-200 | AFRPF-250 | |||
| AWG | mm2 | mm | AFR-250 | AFRP-250 | AFR-250 | AFRP-250 | ||
| 36AWG | 0.013 | 7/0.05 | 0.57 | 0.97 | 1.45 | 0.44 | 1.89 | 2.93 |
| 32AWG | 0.035 | 7/0.08 | 0.67 | 1.15 | 1.55 | 0.73 | 2.39 | 3.52 |
| - | 0.05 | 10/0.08 | 0.72 | 1.28 | 1.68 | 0.91 | 2.67 | 3.85 |
| - | 0.07 | 14/0.08 | 0.75 | 1.3 | 1.7 | 1.16 | 3.05 | 4.29 |
| - | 0.1 | 21/0.08 | 0.85 | 1.4 | 1.8 | 1.57 | 3.63 | 4.95 |
| 26AWG | 0.12 | 24/0.08 | 0.85 | 1.5 | 1.9 | 1.66 | 4.18 | 5.45 |
| - | 0.14/0.15 | 30/0.08 | 0.9 | 1.55 | 1.95 | 2.07 | 4.32 | 5.72 |
| - | 0.2 | 42/0.08 | 1 | 1.65 | 2 | 2.72 | 5.17 | 6.67 |
| - | 0.25 | 56/0.08 | 1.1 | 1.7 | 2.05 | 3.47 | 6.13 | 7.73 |
| 22AWG | 0.3 | 62/0.08 | 1.18 | 1.75 | 2.25 | 4.2 | 7.55 | 9.3 |
| - | 0.35 | 75/0.08 | 1.2 | 1.8 | 2.35 | 4.7 | 7.74 | 10.2 |
| 20AWG | 0.5 | 63/0.1 | 1.45 | 2.05 | 2.4 | 5.36 | 8.54 | 11 |
| - | 0.75/0.80 | 91/0.1 | 1.69 | 2.39 | / | 8.19 | 11.9 | / |
| 18AWG | 1 | 56/0.15 | 1.95 | 2.5 | / | 10.9 | 15.2 | / |
Noted:Specification and core no. are not limited to above regulation,they could be customized.
