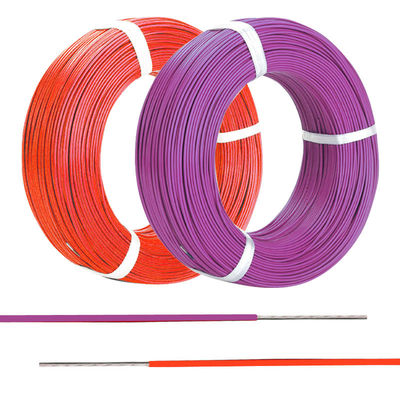

18 20 22 AWG PTFE High Temperature Stranded high temperature Coated Wire
About PTFE wire
1. Polytetrafluoroethylene wires allow wiring systems to be used and operated in the most demanding of environments.
2. PTFE is resistant to lubricants and fuels, very flexible, plus it has excellent thermal and electrical properties.
Application:
Used for Oil equipment, Electric machinery, Automotive cables, Outdoor lighting, PTC thermistors, Electric components etc.
Features:
1. High temperature resistance
2. Cold resistance
3. Good softness
4. Aging resistance
5. Anti-interference
6. Easy insulation stripping
7. Small diameter
8. Especially suitable for frequent bending occasions
Properties:
1. Rated voltage: 600V or Below
2. Working temperature: -65℃~+250℃
3. Conductor: Silver Plated Stranded Copper
4. Insulated: PTFE
5. Available Colors: Orange, Red, Yellow, White, Blue, Brown, Black, Brown, Grey, Green, Purple...
| Silver coated copper conductor PTFE insulation lead wire |
| Silver coated copper conductor PTFE insulation shield lead wire |
| Silver coated stranded copper conductor PTFE insulation shield lead wire |
| Silver coated stranded copper conductor PTFE insulation twisted shield lead wire |
| Conductor |
thickness |
Wire OD mm |
Resistance of insualtion | |||||||||
| Nominal section area mm2 |
single wire x dia. | Conductor Dia. mm |
110V | 250V | 600V | AFR-250 type | AFRP-250 type | MΩ·km | ||||
| mm | 110V | 250V | 600V | 110V | 250V | 600V | ||||||
| 0.013 | 7×0.05 | 0.15 | 0.1 | 0.15 | 0.25 | 0.38 | 0.49 | 0.71 | 0.7 | 0.82 | 1.02 | 5×103 |
| 0.035 | 7×0.08 | 0.24 | 0.1 | 0.15 | 0.25 | 0.47 | 0.58 | 0.81 | 0.85 | 0.91 | 1.14 | |
| 0.06 | 7×0.10 | 0.3 | 0.1 | 0.15 | 0.25 | 0.55 | 0.65 | 0.87 | 0.9 | 0.97 | 1.2 | |
| 0.08 | 7×0.12 | 0.36 | 0.1 | 0.15 | 0.25 | 0.6 | 0.7 | 0.93 | 1 | 1.03 | 1.26 | |
| 19×0.07 | ||||||||||||
| 0.1 | 7×0.14 | 0.42 | 0.1 | 0.15 | 0.25 | 0.7 | 0.83 | 1 | 1.05 | 1.15 | 1.3 | |
| 19×0.08 | ||||||||||||
| 0.14 | 7×0.16 | 0.5 | 0.1 | 0.15 | 0.25 | 0.73 | 0.85 | 1.05 | 1.05 | 1.18 | 1.45 | |
| 19×0.10 | ||||||||||||
| 0.2 | 7×0.20 | 0.6 | 0.15 | 0.3 | 0.85 | 0.97 | 1.3 | 1.3 | 1.4 | 1.7 | ||
| 19×0.12 | ||||||||||||
| 0.35 | 7×0.25 | 0.8 | 0.15 | 0.3 | 1.2 | 1.5 | 1.6 | 1.9 | ||||
| 19×0.16 | ||||||||||||
| 0.5 | 7×0.30 | 0.9 | 0.15 | 0.3 | 1.3 | 1.6 | 1.7 | 2 | ||||
| 19×0.18 | ||||||||||||
| 0.8 | 7×0.37 | 1.1 | 0.2 | 0.3 | 1.65 | 1.85 | 2.05 | 2.3 | ||||
| 19×0.23 | ||||||||||||
| 1 | 19×0.26 | 1.3 | 0.2 | 0.3 | 1.88 | 2 | 2.25 | 2.45 | ||||
| 1.2 | 19×0.28 | 1.4 | 0.2 | 0.3 | 1.95 | 2.15 | 2.38 | 2.55 | ||||
| 1.5 | 19×0.32 | 1.6 | 0.2 | 0.3 | 2.15 | 2.35 | 2.63 | 2.83 | ||||
| 2 | 19×0.37 | 1.85 | 0.2 | 0.3 | 2.4 | 2.6 | 2.97 | 3.08 | ||||
| 2.5 | 19×0.14 | 2.34 | 0.2 | 0.35 | 2.95 | 3.2 | 3.43 | |||||
| 49×0.26 | ||||||||||||
| 3 | 49×0.28 | 2.52 | 0.2 | 0.35 | 3.1 | 3.37 | 3.5 | |||||
| 4 | 49×0.32 | 2.88 | 0.35 | 3.52 | 4.12 | |||||||
| 6 | 49×0.39 | 3.51 | 0.35 | 4.15 | 4.75 | |||||||
Noted: Specification and core no. are not limited to above regulation, they could be customized.
