Custom Flexible Bare Copper Wire TPE Jacket Cables Supplier
TPE called Thermoplastic Elastomer is a kind of special functional material with plastic plasticity and rubber elasticity.
The TPE cable is used for indoor and outdoor applications,for elevated warehouse storage and extraction equipment, processing equipment,machine tools, fast conveying system, clean room, semiconductor insertion technology, quay crane, outdoor crane, low temperature applications, especially for horizontal overhead and long travel up to 400 meters or more.

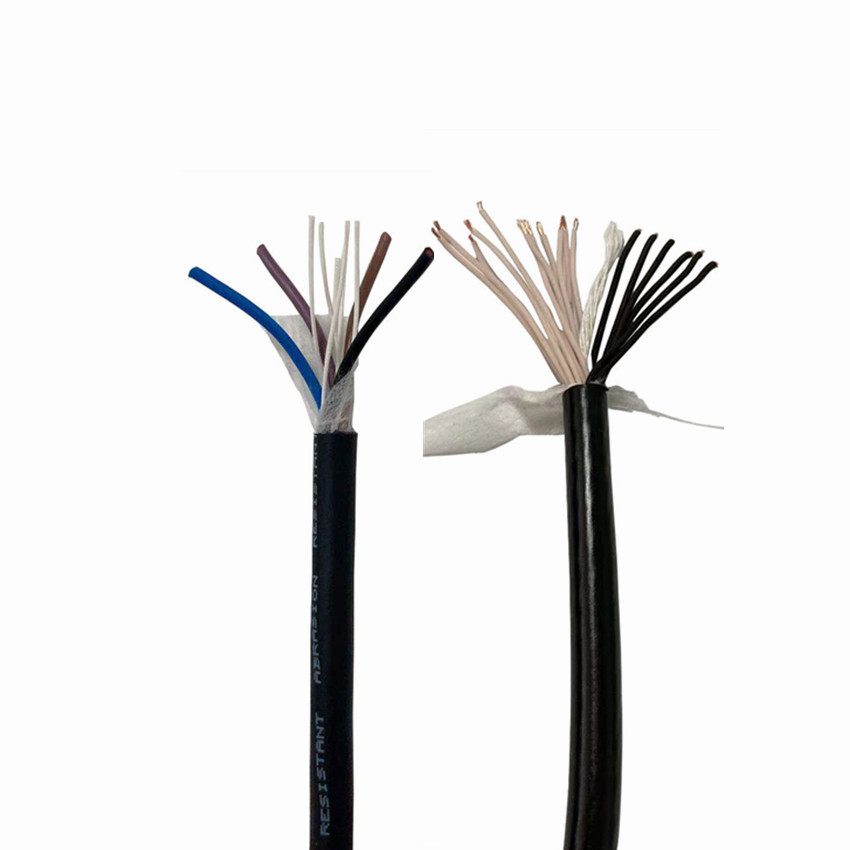

Structure of TPE Cable
1.Conductor: multi-strand twisted bare copper wire conductor with high bending strength
2.Insulation: high mechanical properties TPE insulation
3.Wire core: twisted
4.Sheath: special TPE Jacket, abrasion resistance, high flexibility, suitable for towing chains
Properties of TPE Cable
1.Rated Voltage:600/1000V
2.Insulation resistance:>20MOhmxcm
3.Insulation:Minimum bending radius mobile installation:7.5 x cable diameter,Fixed installation:4 x cable diameter
4.Operating temperature: -35℃~+90℃(mobile installation,-40℃~+90℃( Fixed installation)
| Specification (mm2) |
Reference cable OD (mm) |
Estimate conductor weight (kg/km) |
Estimate cable weight (kg/km) |
| 4G1.5 | 8.5 | 55 | 105 |
| 4G2.5 | 10 | 91 | 156 |
| 4G4.0 | 12 | 152 | 234 |
| 4G6.0 | 14 | 235 | 341 |
| 5G6.0 | 15 | 283 | 414 |
| 4G10.0 | 17 | 391 | 531 |
| 5G10.0 | 18.5 | 489 | 655 |
| 4G16 | 19.5 | 610 | 788 |
| 5G16 | 23 | 763 | 1072 |
| 4G25 | 24.5 | 944 | 1245 |
| 4X6 | 14 | 235 | 341 |
| 4X10 | 17 | 391 | 531 |
| 4X16 | 19.5 | 610 | 788 |
| 3X50 | 30 | 1423 | 1947 |
Noted:Specification and core no. are not limited to above regulation,they could be customized.
