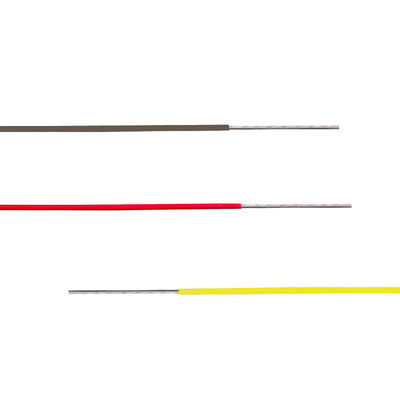

High Temperature Wire with Ptfe Insulation, 600V Silver Plated Copper Heating Wires
PTFE insulation wire are generally used for internal wiring of various electronic and electrical equipments and other electrical purposes. They are most suitable to use in equipments involving for high frequency signals. Uniformity of insulation thickness around the conductor and very low dielectric constant of PTFE enables the transmission of high frequency signals with minimized signal losses as compared to other wires resulting in high quality signal transmission.
Application:
Internal wiring for electronic equipment and small electrical equipment, PTC thermistors, Oil equipment. Internal wiring for computers and business equipment.
.
Properties:
1. Rated voltage: 600V or Below
2. Working temperature: -60℃ ~ 250℃, short-term temperature 350℃
3. Conductor Materials: Silver or Tinned Plated Copper
4. Conductor Type: Stranded
5. Insulated: Ptfe high temperature
6. Available Colors: White, Blue, Red, Yellow, Black, Brown, Grey, Green, Violet...
| Silver coated copper conductor PTFE insulation lead wire |
| Silver coated copper conductor PTFE insulation shield lead wire |
| Silver coated stranded copper conductor PTFE insulation shield lead wire |
| Silver coated stranded copper conductor PTFE insulation twisted shield lead wire |
|
Nominal Section (mm2) |
Conductor Construction |
Insulation Thickness (mm) |
Outer Diameter (mm) |
D.C. conductor resistance at 20ºC(Ω/km) |
|
| Tinned copper | Silver coated copper | ||||
| 0.05 | 10/0.08 | 0.3 | 0.9 | 383 | 370 |
| 0.06 | 7/0.10 | 0.3 | 0.9 | 348 | 339 |
| 0.08 | 7/0.12 | 0.3 | 0.96 | 286 | 280 |
| 0.1 | 7/0.14 | 0.3 | 1.02 | 157 | 150 |
| 0.12 |
7/0.15 30/0.07 |
0.3 | 1.05 | 152 | 145 |
| 0.14 |
7/0.16 19/0.10 |
0.3 | 1.08 | 136 | 130 |
| 0.15 | 30/0.08 | 0.3 | 1.1 | 111 | 105 |
| 0.2 |
7/0.02 19/0.12 |
0.3 | 1.2 | 87 | 82 |
| 0.35 | 19/0.16 | 0.3 | 1.4 | 57 | 54 |
| 0.5 | 19/0.18 | 0.3 | 1.5 | 40 | 37.5 |
| 0.8 | 19/0.23 | 0.32 | 1.79 | 24 | 23 |
| 1 | 19/0.26 | 0.35 | 2 | 21 | 20 |
| 1.2 | 19/0.28 | 0.45 | 2.3 | 19 | 18 |
| 1.5 | 19/0.32 | 0.45 | 2.5 | 13 | 12 |
| 2 | 19/0.37 | 0.45 | 2.75 | 10 | 9 |
| 2.5 | 37/0.30 | 0.55 | 3.2 | 8 | 7 |
| 3 | 37/0.32 | 0.68 | 3.6 | 6.8 | 6.4 |
Noted: Specification and core no. are not limited to above regulation, they could be customized.
