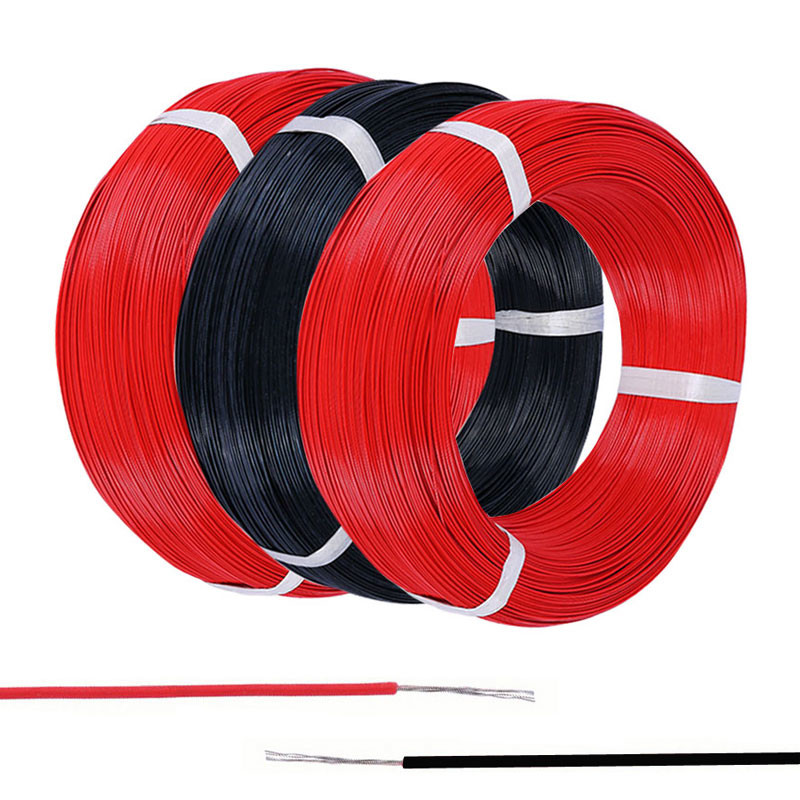

Anti Aging PFA Insulated Wires 16 AWG high temperature Coated Wire Stranded

100m
MOQ
Negotiation
Price
Anti Aging PFA Insulated Wires 16 AWG high temperature Coated Wire Stranded
Features Gallery Product Description Request A Quote
Features
Specifications
Insulated: PFA
Conductor Material: Silver Coated Copper
Working Temperature: -65 ~+250 Degree
Rated Voltage: AC 600V And Below
Wire Gauge: 8 ~ 30AWG
Available Color: Green, Red, Yellow, White, Black, Violet, Brown, Blue...
Core Number: Single Core
Conductor Type: Stranded
High Light:

16 AWG PFA Insulated Wires

,

Anti aging PFA Insulated Wires

,

Stranded 16 AWG high temperature coated wire

Basic Infomation
Place of Origin: China
Brand Name: SANCO
Certification: ISO9001
Model Number: AFK-250
Payment & Shipping Terms
Packaging Details: Cable tray or Packing in roll with carton box
Delivery Time: 3~8days
Supply Ability: 250000M/Per Month
Product Description

250C 600V Silver Plated Stranded Copper high temperature PFA Sensor Wire



About PFA wire

1. High and low temperature resistance: PFA wire long-term working temperature range is -80-+250℃, does not affect its insulation characteristics.
It is flexibility at low temperature.
In high temperature which can reach 300℃ in a short time, with non-combustion characteristics
2. Excellent corrosion resistance:PFA is almost insoluble in any solvent
3. Excellent weather resistance: PFA does not absorb moisture and not burn, it is extremely stable to oxygen and ultraviolet light



Application and Features:

(1)The pfa high-temperature wire is used in Aviation industry and electronics industry under high temperature radiation as a connector of instrumentation and precision equipment.

(2)Small diameter,abrasion and scratch resistance,easy to peel,low and high temperature resistance,anti-aging,corrosion resistance,anti-interference etc.



Using Condition

1. Rated voltage: AC600V and Lower
2. Working temperature: -65
~ +250

3. Insulation resistance is not less than 1x103MΩ
4. Wire relative humidity: 95%±3.
5. Test Voltage: (Under AC 50Hz )2000V/5min





Specification:

Insulated: PFA Insulation

Conductor Material: Silver Plated Copper Conductor

Conductor Type: Stranded

Core Number: Single Core or Multicores

Available Colors: Green, Red, Black, White, Yellow, Brown, Purple, Blue and etc...





pfa wire.jpg



type Name
AFK-250 PFA insulated silver plated copper high temperature wire
AFKP-250 PFA insulated silver plated copper shielded high temperature wire



Section area
(mm2)
Wire gauge
AWG
Conductor construction
piece/diameter
(mm)
Insulation thickness
(mm)
Outer diameter
(mm)
Max. Conductor resistance at 20
(Ω/Km)
0.05mm2 30AWG 7/0.1mm 0.2mm 0.7mm 376.2
0.2mm2 24AWG 7/0.2mm 0.30 1.2mm 83.5
0.35mm2 22AWG 19/0.16mm 0.35mm 1.4mm 49.5
0.5mm2 20AWG 19/0.18mm 0.35mm 1.6mm 36.7
1mm2 18AWG 19/0.26mm 0.35mm 2mm 19
1.2mm2 16AWG 19/0.28mm 0.35mm 2.1mm 15.3
2mm2 14AWG 19/0.37mm 0.4mm 2.65mm 9.45
8mm2 8AWG 133/0.28mm 0.5mm 5.2mm 2.16
20mm2 4AWG 133/0.45mm 0.6mm 8.0mm 0.886



Anti Aging PFA Insulated Wires 16 AWG high temperature Coated Wire Stranded 1



Anti Aging PFA Insulated Wires 16 AWG high temperature Coated Wire Stranded 2














Anti Aging PFA Insulated Wires 16 AWG high temperature Coated Wire Stranded 3Anti Aging PFA Insulated Wires 16 AWG high temperature Coated Wire Stranded 4
