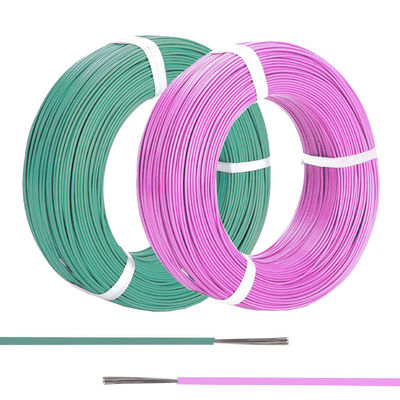

FEP ETFE PFA Tinned Plated Copper High Temperature Resistant Wire
About PFA wire
1. PFA Insulated Cable and Wire is excellent for high temperature applications.
2. PFA insulation can withstand operating temperatures up to 250° Celsius, and has superior mechanical strength at high temperatures as compared to FEP insulation. It exhibits excellent low-temperature toughness.
3. PFA insulated wire and cable is also used in applications requiring a chemical resistant wire and cable.
About FEP wire
1. FEP Insulated Cable and FEP Wire are also used in applications involving high temperatures and harsh environments.
2. FEP insulation exhibits is inert in most chemical environments and exhibits excellent resistance to high temperatures. It displays outstanding low-temperature toughness.
3. FEP insulated wire and cable also displays very low flammability, excellent weather resistance and electrical stability.
About ETFE wire
1. ETFE Insulated Cable and Wire is heat resistant up to 150 °Celsius.
2. ETFE insulated wire and cable also displays high levels of mechanical toughness, flexibility and abrasion resistance.
3. ETFE insulation is commonly used in applications requiring good mechanical strength, good properties of chemical resistance, ability to withstand high temperature environments and good properties of electrical stability.
4. ETFE insulation wire exceeds the mechanical properties of both PTFE and FEP.
| Wire Gauge (AWG) |
Section area (mm2) |
Conductor construction piece/diameter (mm) |
Insulation thickness (mm) |
OD (mm) |
Max. Conductor resistance at 20℃ (Ω/Km) |
Packing length (m) |
| 10awg | 5mm2 | 37x0.43mm | 0.33mm | 3.67 | 3.546 | 305 |
| 12awg | 3mm2 | 19x0.49mm | 0.33mm | 3.11 | 5.64 | 305 |
| 14awg | 2mm2 | 19x0.37mm | 0.33mm | 2.51 | 8.96 | 305 |
| 16awg | 1.2mm2 | 19x0.3mm | 0.33mm | 2.16 | 14.6 | 305 |
| 17awg | 19x0.26mm | 0.33mm | 1.96 | 18.3 | 305 | |
| 18awg | 1mm2 | 19x0.23mm | 0.33mm | 1.81 | 23.2 | 305 |
| 20awg | 0.5mm2 | 19x0.2mm | 0.33mm | 1.61 | 36.7 | 305 |
| 1x0.8mm | 0.33mm | 1.46 | 35.2 | 305 | ||
| 22awg | 0.3mm2 | 19x0.16mm | 0.33mm | 1.46 | 59.4 | 610 |
| 1x0.65mm | 0.33mm | 1.31 | 56.4 | 610 | ||
| 24awg | 0.2mm2 | 7x0.2mm | 0.33mm | 1.26 | 94.2 | 610 |
| 1x0.5mm | 0.33mm | 1.16 | 89.3 | 610 | ||
| 26awg | 0.12mm2 | 7x0.16mm | 0.33mm | 1.14 | 150 | 610 |
| 1x0.4mm | 0.33mm | 1.06 | 143 | 610 | ||
| 28awg | 0.08mm2 | 7x0.12mm | 0.33mm | 1.02 | 239 | 610 |
| 1x0.32mm | 0.33mm | 0.98 | 227 | 610 | ||
| 30awg | 0.06mm2 | 7x0.1mm | 0.33mm | 0.96 | 381 | 610 |
| 1x0.254mm | 0.33mm | 0.914 | 361 | 610 | ||
| 32awg | 0.035mm2 | 7x0.08mm | 0.41mm | 1.06 | 664.8 | 610 |
| 1x0.2mm | 0.41mm | 1.02 | 588.3 | 610 |
