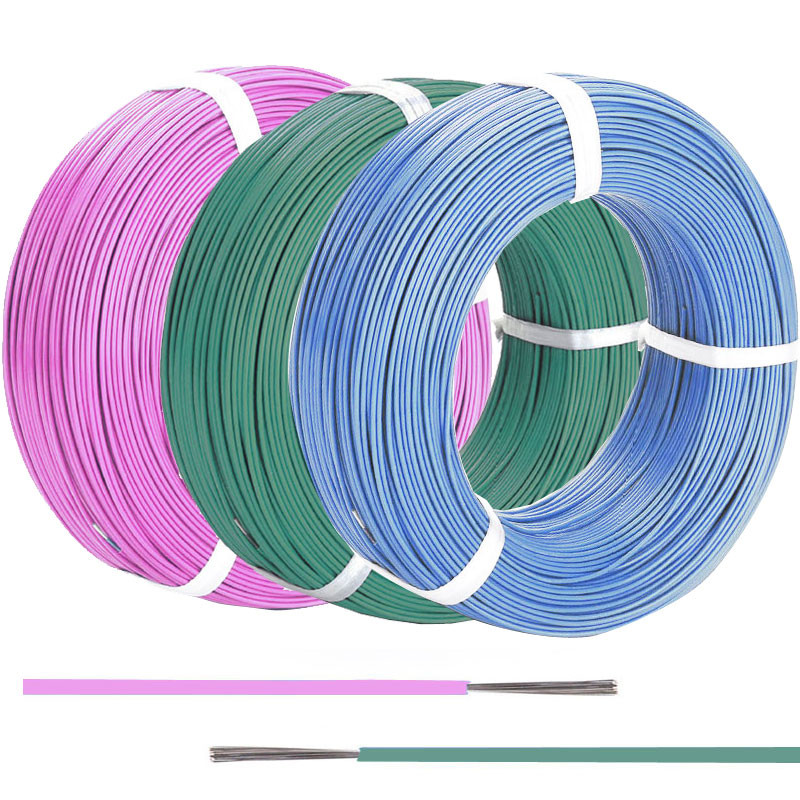

High Temperature FEP ETFE PFA PTFE Insulated Wire 19/0.2mm 20AWG

100m
MOQ
Negotiation
Price
High Temperature FEP ETFE PFA PTFE Insulated Wire 19/0.2mm 20AWG
Features Gallery Product Description Request A Quote
Features
Specifications
Features: Heat Resistance
Insulated: PFA, PTFE, FEP, ETFE
Working Temperature: -65°C ~+250°C
Available Color: Green, Grey, Blue, White, Yellow, Red, Black, Purple,
Core Number: 1 Core, 2 Core, 3 Core, 4 Core, 5 Core..
Gauge: 20AWG
Conductor Material: Silver Or Tinned Plated Copper
Rated Voltage: AC 220V, 600V Or Below
Customized Product: Yes
High Light:

PTFE Insulated Wire 19/0.2mm

,

FEP ETFE PFA PTFE Insulated Wire

,

High Temperature Wires 20AWG

Basic Infomation
Place of Origin: China
Brand Name: SANCO
Certification: ISO9001
Model Number: AF-200, AFK-250, AFR-250
Payment & Shipping Terms
Packaging Details: Cable tray or Packing in roll with carton box
Delivery Time: 3~8days
Supply Ability: 250000M/Per Month
Product Description

19/0.2mm High Temperature 20AWG FEP ETFE PFA PTFE Insulated Wire



About PFA wire

1. PFA Insulated Cable and Wire is excellent for high temperature applications.
2. PFA insulation can withstand operating temperatures up to 250° Celsius, and has superior mechanical strength at high temperatures as compared to FEP insulation. It exhibits excellent low-temperature toughness.
3. PFA insulated wire and cable is also used in applications requiring a chemical resistant wire and cable.



About FEP wire

1. FEP Insulated Cable and FEP Wire are also used in applications involving high temperatures and harsh environments.
2. FEP insulation exhibits is inert in most chemical environments and exhibits excellent resistance to high temperatures. It displays outstanding low-temperature toughness.
3. FEP insulated wire and cable also displays very low flammability, excellent weather resistance and electrical stability.



About ETFE wire

1. ETFE Insulated Cable and Wire is heat resistant up to 150 °Celsius.
2. ETFE insulated wire and cable also displays high levels of mechanical toughness, flexibility and abrasion resistance.
3. ETFE insulation is commonly used in applications requiring good mechanical strength, good properties of chemical resistance, ability to withstand high temperature environments and good properties of electrical stability.
4. ETFE insulation wire exceeds the mechanical properties of both PTFE and FEP.



About PTFE wire

1. Polytetrafluoroethylene wires allow wiring systems to be used and operated in the most demanding of environments.

2. PTFE is resistant to lubricants and fuels, very flexible, plus it has excellent thermal and electrical properties.



These wiring kinds usually consist of a conductor (tinned copper, silver plated, nickel-coated copper )and insulation. They may also have an extra jacket that consists of a fibreglass material.





Wire Gauge
(AWG)
Section area
(mm2)
Conductor construction
piece/diameter
(mm)
Insulation thickness
(mm)
OD
(mm)
Max. Conductor resistance at 20
(Ω/Km)
Packing length
(m)
10awg 5mm2 37x0.43mm 0.33mm 3.67 3.546 305
12awg 3mm2 19x0.49mm 0.33mm 3.11 5.64 305
14awg 2mm2 19x0.37mm 0.33mm 2.51 8.96 305
16awg 1.2mm2 19x0.3mm 0.33mm 2.16 14.6 305
17awg   19x0.26mm 0.33mm 1.96 18.3 305
18awg 1mm2 19x0.23mm 0.33mm 1.81 23.2 305
20awg 0.5mm2 19x0.2mm 0.33mm 1.61 36.7 305
1x0.8mm 0.33mm 1.46 35.2 305
22awg 0.3mm2 19x0.16mm 0.33mm 1.46 59.4 610
1x0.65mm 0.33mm 1.31 56.4 610
24awg 0.2mm2 7x0.2mm 0.33mm 1.26 94.2 610
1x0.5mm 0.33mm 1.16 89.3 610
26awg 0.12mm2 7x0.16mm 0.33mm 1.14 150 610
1x0.4mm 0.33mm 1.06 143 610
28awg 0.08mm2 7x0.12mm 0.33mm 1.02 239 610
1x0.32mm 0.33mm 0.98 227 610
30awg 0.06mm2 7x0.1mm 0.33mm 0.96 381 610
1x0.254mm 0.33mm 0.914 361 610
32awg 0.035mm2 7x0.08mm 0.41mm 1.06 664.8 610
1x0.2mm 0.41mm 1.02 588.3 610



High Temperature FEP ETFE PFA PTFE Insulated Wire 19/0.2mm 20AWG 0

High Temperature FEP ETFE PFA PTFE Insulated Wire 19/0.2mm 20AWG 1
