ETFE PFA FEP High Temperature Electrical Wire Cable 16 18 20 24 AWG

100m
MOQ
Negotiation
Price
ETFE PFA FEP High Temperature Electrical Wire Cable 16 18 20 24 AWG
Features Gallery Product Description Request A Quote
Features
Specifications
Features: Heating Resistant
Insulation: FEP, ETFE, PFA, PTFE Insulation
Working Temperature: -65~+250 Degree, -65 ~+200 Degree
Available Color: White, Black, Yellow, Violet, Brown, Green, Grey, Blue, Red
Core Number: Single Core Or Multi Cores
Wire Gauge: 16 18 20 24 AWG...
Conductor Material: Silver Plated Or Tinned Plated Copper Conductor
Rated Voltage: AC 220V Or 600V
Customized Product: Yes
High Light:

FEP High Temperature Electrical Wire Cable

,

ETFE Electrical Wire Cable 24AWG

,

220V PFA High Temperature Wires

Basic Infomation
Place of Origin: China
Brand Name: SANCO
Certification: ISO9001
Model Number: AF-200, AFK-250, AFR-250
Payment & Shipping Terms
Packaging Details: Cable tray or Packing in roll with carton box
Delivery Time: 3~8days
Supply Ability: 250000M/Per Month
Product Description

16 18 20 24 AWG ETFE PFA FEP High Temperature Electrical Wire Cable



A high temperature wire, is often defined as a wire that can tolerate 125 ℃ or higher temperatures. It can also mean they can manage not just heat but also the cold. High temp wires can also handle ratings as low as 90 ℃. From its conductor to its insulator, high temperature wire constructions are rated 125, 150, 200, 250 ℃.



FEP wire with excellent chemical stability, excellent non-stick characteristics, the maximum operating temperature is 200℃.
PFA wire has higher continuous service temperature of 250℃, stronger toughness, especially suitable for use in high temperature anti-stick and chemical resistance applications
ETFE wire is a copolymer of ethylene and tetrafluoroethylene with excellent chemical resistance and continuous operation at 150℃



These wiring kinds usually consist of a conductor (tinned copper, silver plated, nickel-coated copper )and insulation. They may also have an extra jacket that consists of a fibreglass material.





Wire Gauge
(AWG)
Section area
(mm2)
Conductor construction
piece/diameter
(mm)
Insulation thickness
(mm)
OD
(mm)
Max. Conductor resistance at 20
(Ω/Km)
Packing length
(m)
10awg 5mm2 37x0.43mm 0.33mm 3.67 3.546 305
12awg 3mm2 19x0.49mm 0.33mm 3.11 5.64 305
14awg 2mm2 19x0.37mm 0.33mm 2.51 8.96 305
16awg 1.2mm2 19x0.3mm 0.33mm 2.16 14.6 305
17awg   19x0.26mm 0.33mm 1.96 18.3 305
18awg 1mm2 19x0.23mm 0.33mm 1.81 23.2 305
20awg 0.5mm2 19x0.2mm 0.33mm 1.61 36.7 305
1x0.8mm 0.33mm 1.46 35.2 305
22awg 0.3mm2 19x0.16mm 0.33mm 1.46 59.4 610
1x0.65mm 0.33mm 1.31 56.4 610
24awg 0.2mm2 7x0.2mm 0.33mm 1.26 94.2 610
1x0.5mm 0.33mm 1.16 89.3 610
26awg 0.12mm2 7x0.16mm 0.33mm 1.14 150 610
1x0.4mm 0.33mm 1.06 143 610
28awg 0.08mm2 7x0.12mm 0.33mm 1.02 239 610
1x0.32mm 0.33mm 0.98 227 610
30awg 0.06mm2 7x0.1mm 0.33mm 0.96 381 610
1x0.254mm 0.33mm 0.914 361 610
32awg 0.035mm2 7x0.08mm 0.41mm 1.06 664.8 610
1x0.2mm 0.41mm 1.02 588.3 610

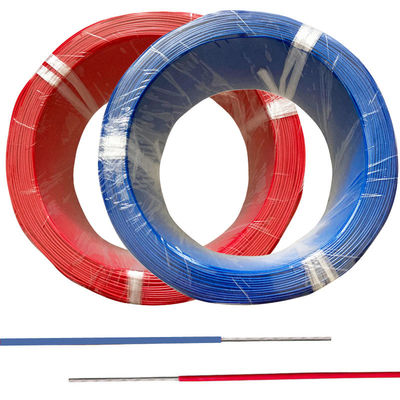

ETFE PFA FEP High Temperature Electrical Wire Cable 16 18 20 24 AWG 0





ETFE PFA FEP High Temperature Electrical Wire Cable 16 18 20 24 AWG 1
