Application:
Internal wiring for electronic equipment and small electrical equipment; Used for Electric components, Oil equipment, Automotive cables, Outdoor lighting, PTC thermistors, etc.

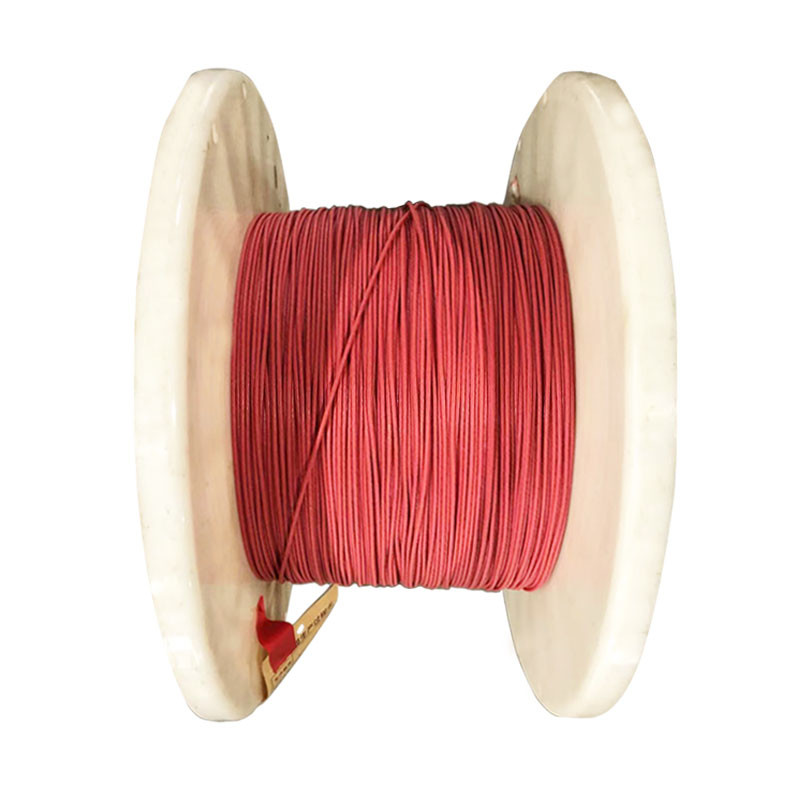

Properties of PTFE Wire:
1. Rated voltage: 600V and below
2. Working temperature: -60 ~ 250℃
3. Conductor Material: Silver Plated Copper
4. Conductor Type: Stranded
5. Insulation: PTFE Insulation
6. Colors: White, Orange, Black, Red, Yellow, Blue, Brown, Grey, Green, Violet...
7. Core Number: Single Core
8. Test voltage: 1000V, 1500V, 2500V
| Conductor |
thickness |
Wire outer diameter mm |
Resistance of insualtion | |||||||||
| Nominal section area mm2 |
single wire x dia. | Conductor Dia. mm |
110V | 250V | 600V | AFR-250 type | AFRP-250 type | MΩ·km | ||||
| mm | 110V | 250V | 600V | 110V | 250V | 600V | ||||||
| 0.013 | 7×0.05 | 0.15 | 0.1 | 0.15 | 0.25 | 0.38 | 0.49 | 0.71 | 0.7 | 0.82 | 1.02 | 5×103 |
| 0.035 | 7×0.08 | 0.24 | 0.1 | 0.15 | 0.25 | 0.47 | 0.58 | 0.81 | 0.85 | 0.91 | 1.14 | |
| 0.06 | 7×0.10 | 0.3 | 0.1 | 0.15 | 0.25 | 0.55 | 0.65 | 0.87 | 0.9 | 0.97 | 1.2 | |
| 0.08 | 7×0.12 | 0.36 | 0.1 | 0.15 | 0.25 | 0.6 | 0.7 | 0.93 | 1 | 1.03 | 1.26 | |
| 19×0.07 | ||||||||||||
| 0.1 | 7×0.14 | 0.42 | 0.1 | 0.15 | 0.25 | 0.7 | 0.83 | 1 | 1.05 | 1.15 | 1.3 | |
| 19×0.08 | ||||||||||||
| 0.14 | 7×0.16 | 0.5 | 0.1 | 0.15 | 0.25 | 0.73 | 0.85 | 1.05 | 1.05 | 1.18 | 1.45 | |
| 19×0.10 | ||||||||||||
| 0.2 | 7×0.20 | 0.6 | 0.15 | 0.3 | 0.85 | 0.97 | 1.3 | 1.3 | 1.4 | 1.7 | ||
| 19×0.12 | ||||||||||||
| 0.35 | 7×0.25 | 0.8 | 0.15 | 0.3 | 1.2 | 1.5 | 1.6 | 1.9 | ||||
| 19×0.16 | ||||||||||||
| 0.5 | 7×0.30 | 0.9 | 0.15 | 0.3 | 1.3 | 1.6 | 1.7 | 2 | ||||
| 19×0.18 | ||||||||||||
| 0.8 | 7×0.37 | 1.1 | 0.2 | 0.3 | 1.65 | 1.85 | 2.05 | 2.3 | ||||
| 19×0.23 | ||||||||||||
| 1 | 19×0.26 | 1.3 | 0.2 | 0.3 | 1.88 | 2 | 2.25 | 2.45 | ||||
| 1.2 | 19×0.28 | 1.4 | 0.2 | 0.3 | 1.95 | 2.15 | 2.38 | 2.55 | ||||
| 1.5 | 19×0.32 | 1.6 | 0.2 | 0.3 | 2.15 | 2.35 | 2.63 | 2.83 | ||||
| 2 | 19×0.37 | 1.85 | 0.2 | 0.3 | 2.4 | 2.6 | 2.97 | 3.08 | ||||
| 2.5 | 19×0.14 | 2.34 | 0.2 | 0.35 | 2.95 | 3.2 | 3.43 | |||||
| 49×0.26 | ||||||||||||
| 3 | 49×0.28 | 2.52 | 0.2 | 0.35 | 3.1 | 3.37 | 3.5 | |||||
| 4 | 49×0.32 | 2.88 | 0.35 | 3.52 | 4.12 | |||||||
| 6 | 49×0.39 | 3.51 | 0.35 | 4.15 | 4.75 | |||||||
Noted: Specification and core no. are not limited to above regulation, they could be customized.
