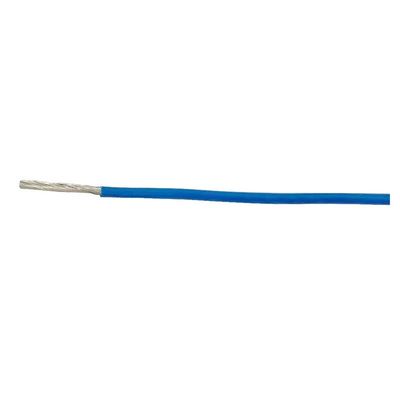

30AWG FEP 200 Degree High Temperature Wire
About FEP wire
Abrasion and scratch resistance,easy to peel,low and high temperature resistance,anti-aging,corrosion resistance,anti-interference etc.
The FEP cable also has excellent corrosion resistance, oil resistance, strong acid, strong alkali resistance, strong oxidant, etc. It has excellent insulation performance, Low high frequency loss, low moisture absorption and high insulation resistance. It has excellent flame resistance, aging resistance and long service life.
Applications
The Fep cable is used as a inner circuit connector in hight temperature of aircraft,spacecraft,armor vehicles,missile bodies,ship nacelle and various electric appliance.
In the electronics industry, it can be used for temperature compensation conductors, low-temperature conductors, high-temperature heating conductors, anti-aging wires and flame retardant wires;
In the household appliance industry, can be used in air conditioner, microwave oven, electronic sterilization cabinet, electric rice burger, electronic thermos, electric heater, electric oven, electric frying pan, lamp lighting and other internal wiring.
Properties of FEP Wire
Insulation: FEP insulated
Conductor: Solid core or stranded silver plated copper or tinned copper wire
Shielding:Tinned copper wire weave shielded(optional)
Temperature range:-65C~+200ºC
Rated voltage:600V 250V
Color:10 basic colors(transparent,black,brown,red,orange,yellow,green,blue,grey,white,violet)
| Wire gauge | Cross-section area | Conductor structure | Max. OD of cable(mm) | |||
| AF-200 AF-200-1 |
AFP-200 | |||||
| AWG | mm2 | mm | 250V | 600V | 250V | 600V |
| 36AWG | 0.013mm2 | 7/0.05 | 0.65 | 0.85 | 1.1 | 1.3 |
| 32AWG | 0.035mm2 | 7/0.08 | 0.75 | 0.95 | 1.2 | 1.4 |
| 30AWG | 0.05mm2 | 7/0.10 | 0.85 | 1.05 | 1.35 | 1.6 |
| 28AWG | 0.07mm2 | 7/0.12 | 0.9 | 1.1 | 1.4 | 1.65 |
| - | 0.1mm2 | 7/0.14 | 1 | 1.2 | 1.55 | 1.75 |
| 26AWG | 0.14mm2 | 7/0.16 | 1.1 | 1.3 | 1.65 | 1.95 |
| 24AWG | 0.2mm2 | 19/0.12 | 1.2 | 1.4 | 1.75 | 1.98 |
| - | 0.3mm2 | 7/0.23 | 1.25 | 1.48 | 1.8 | 2.05 |
| 22AWG | 0.35/0.40mm2 | 19/0.16 | 1.4 | 1.6 | 1.95 | 2.2 |
| 20AWG | 0.5mm2 | 19/0.18 | 1.6 | 1.8 | 2.2 | 2.4 |
| - | 0.6mm2 | 19/0.20 | 1.75 | 1.98 | 2.3 | 2.5 |
| - | 0.75/0.80mm2 | 19/0.23 | 1.8 | 2.1 | 2.4 | 2.6 |
| 18AWG | 1mm2 | 19/0.26 | 2 | 2.2 | 2.6 | 2.9 |
| 16AWG | 1.2mm2 | 19/0.28 | 2.2 | 2.4 | 2.8 | 3.1 |
| - | 1.5mm2 | 19/0.32 | 2.4 | 2.6 | 3.1 | 3.3 |
| 14AWG | 2mm2 | 19/0.37 | 2.7 | 2.9 | 3.4 | 3.6 |
| - | 2.5mm2 | 37/0.30 | 3.4 | 3.6 | 4.2 | 4.4 |
| 12AWG | 3mm2 | 37/0.32 | 3.6 | 3.8 | 4.4 | 4.6 |
| - | 4mm2 | 37/0.37 | 4 | 4.2 | 4.8 | 5.1 |
| 10AWG | 5mm2 | 37/0.41 | 4.5 | 4.7 | 5.3 | 5.6 |
| - | 6mm2 | 37/0.45 | 4.8 | 5 | 5.7 | 5.9 |
| 8AWG | 8mm2 | 133/0.28 | 6 | 6.5 | 6.8 | 7.3 |
Noted:Specification and core no. are not limited to above regulation,they could be customized.
