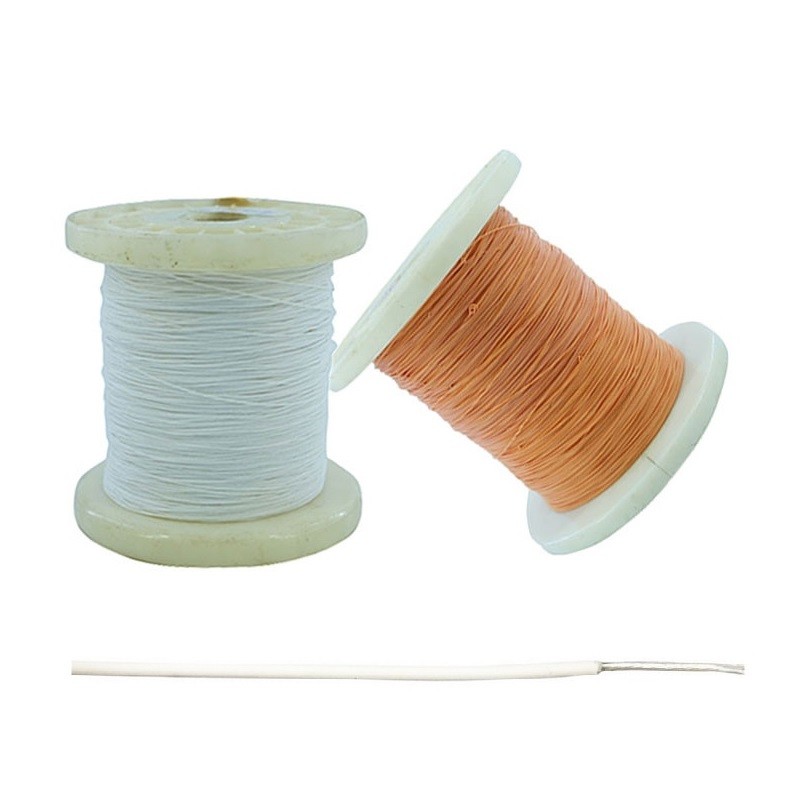

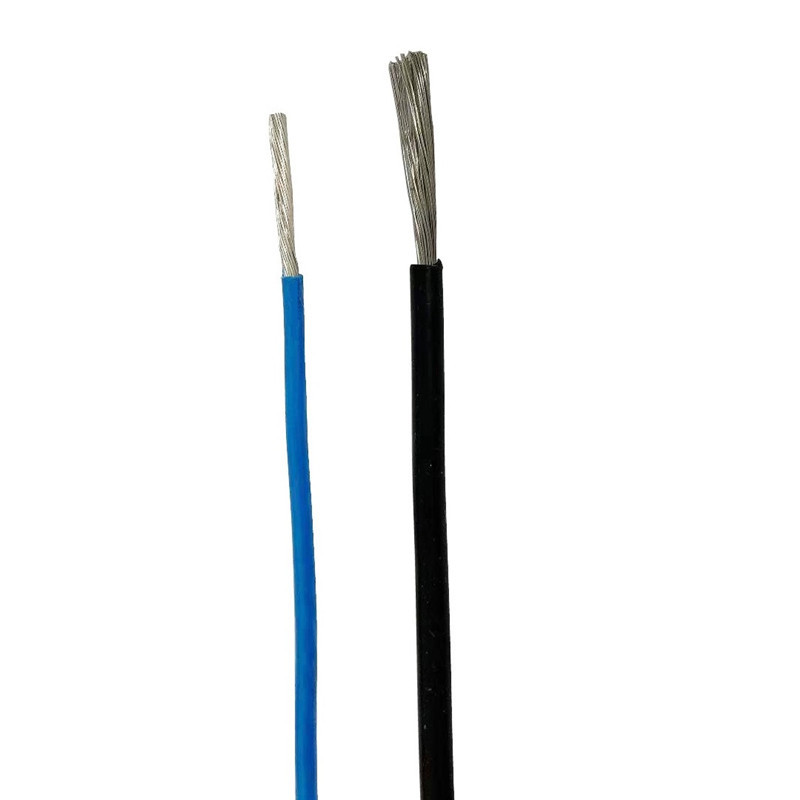

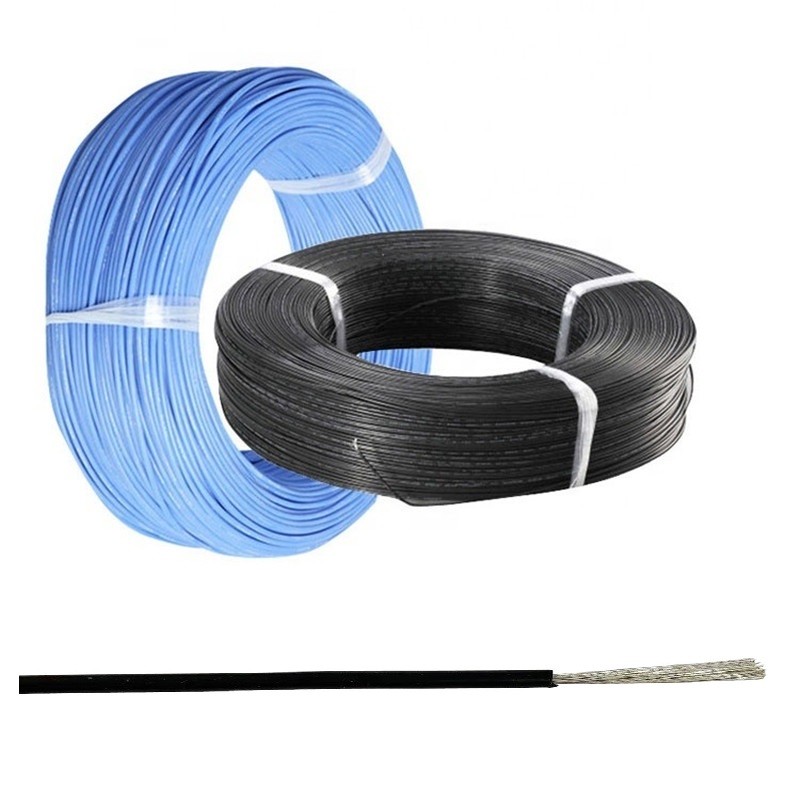

Tinned Coated High Temp Resistant Fep Wire 20 Gauge

100m
MOQ
USD0.1~3.5/M
Price
Tinned Coated High Temp Resistant Fep Wire 20 Gauge
Features Gallery Product Description Request A Quote
Features
Specifications
Features: High Temp Resistant
Insulation: FEP Insulation
Working Temperature: -65~200 Degree
Color: 11 Colors
Wire Gauge: 20 Gauge
Conductor: Tinned Coated
Rated Voltage: AC 600V 300V
Service: OEM ODM Accept
Shielding: Optional
Customized Product: Available As Per Drawing Or Sample
High Light:

High Temp Resistant Fep Wire

,

Tinned Coated Fep Wire

,

20 Gauge FEP Insulated Wire

Basic Infomation
Place of Origin: China
Brand Name: SANCO
Certification: ISO9001
Model Number: AF-200
Payment & Shipping Terms
Packaging Details: Cable tray or Packing in roll with carton box
Delivery Time: 3~8days
Supply Ability: 250000M/Per Month
Product Description

20 Gauge Tinned Coated High Temp Resistant Fep Wire



About FEP wire

1. It has excellent corrosion resistance, oil resistance, strong acid, strong alkali resistance, strong oxidant, etc.;
2. It has excellent electrical insulation performance, high voltage resistance, low frequency loss, no moisture absorption, large insulation resistance; excellent flame resistance and resistance.
3. It has excellent aging performance and long service life.





Applications:

1. Internal wiring for electronic devices, information devices, etc.
2. Wiring for use near furnaces and engines which reach high temperatures
3. Secondary lead wires for general equipment
4. Wiring in environments with high and low temperatures





Properties:

Insulation: FEP insulated

Conductor: Solid core or stranded silver plated copper or tinned copper wire

Shielding:Tinned copper wire weave shielded(optional)

Temperature range:-65C~+200ºC

Rated voltage:600V 250V

Color:10 basic colors(transparent,black,brown,red,orange,yellow,green,blue,grey,white,violet)

Tinned Coated High Temp Resistant Fep Wire 20 Gauge 0



Wire gauge Cross-section area Conductor structure Max. OD of cable(mm)
AF-200
AF-200-1
AFP-200
AWG mm2 mm 250V 600V 250V 600V
36AWG 0.013mm2 7/0.05 0.65 0.85 1.1 1.3
32AWG 0.035mm2 7/0.08 0.75 0.95 1.2 1.4
30AWG 0.05mm2 7/0.10 0.85 1.05 1.35 1.6
28AWG 0.07mm2 7/0.12 0.9 1.1 1.4 1.65
- 0.1mm2 7/0.14 1 1.2 1.55 1.75
26AWG 0.14mm2 7/0.16 1.1 1.3 1.65 1.95
24AWG 0.2mm2 19/0.12 1.2 1.4 1.75 1.98
- 0.3mm2 7/0.23 1.25 1.48 1.8 2.05
22AWG 0.35/0.40mm2 19/0.16 1.4 1.6 1.95 2.2
20AWG 0.5mm2 19/0.18 1.6 1.8 2.2 2.4
- 0.6mm2 19/0.20 1.75 1.98 2.3 2.5
- 0.75/0.80mm2 19/0.23 1.8 2.1 2.4 2.6
18AWG 1mm2 19/0.26 2 2.2 2.6 2.9
16AWG 1.2mm2 19/0.28 2.2 2.4 2.8 3.1
- 1.5mm2 19/0.32 2.4 2.6 3.1 3.3
14AWG 2mm2 19/0.37 2.7 2.9 3.4 3.6
- 2.5mm2 37/0.30 3.4 3.6 4.2 4.4
12AWG 3mm2 37/0.32 3.6 3.8 4.4 4.6
- 4mm2 37/0.37 4 4.2 4.8 5.1
10AWG 5mm2 37/0.41 4.5 4.7 5.3 5.6
- 6mm2 37/0.45 4.8 5 5.7 5.9
8AWG 8mm2 133/0.28 6 6.5 6.8 7.3

 Noted:Specification and core no. are not limited to above regulation,they could be customized.
