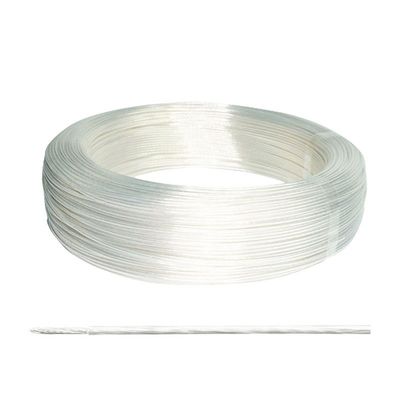

12 14 16 18 Gauge Transparent Color Silver Plated High Temp Wire
About FEP wire
FEP wire is a type of fluoroplastic insulated wire,It has very similar properties to PTFE and PFA such as low friction and non-reactivity to chemicals.
1. It has excellent corrosion resistance, oil resistance, strong acid, strong alkali resistance, strong oxidant, etc.;
2. It has excellent electrical insulation performance, high voltage resistance, low frequency loss, no moisture absorption, large insulation resistance; excellent flame resistance and resistance.
3. It has excellent aging performance and long service life.
Applications:
1. Internal wiring for electronic devices, information devices, etc.
2. Wiring for use near furnaces and engines which reach high temperatures
3. Secondary lead wires for general equipment
4. Wiring in environments with high and low temperatures
Properties:
1. Operating Temperature: -65°C to +200℃
2. Voltage Rating: AC 600V or below
3. Insulation:FEP insulated
4. Conductor:Tinned or Silver plated copper wire
| Wire gauge | Cross-section area | Conductor structure | Max. OD of cable(mm) | |||
| AF-200 AF-200-1 |
AFP-200 | |||||
| AWG | mm2 | mm | 250V | 600V | 250V | 600V |
| 36AWG | 0.013mm2 | 7/0.05 | 0.65 | 0.85 | 1.1 | 1.3 |
| 32AWG | 0.035mm2 | 7/0.08 | 0.75 | 0.95 | 1.2 | 1.4 |
| 30AWG | 0.05mm2 | 7/0.10 | 0.85 | 1.05 | 1.35 | 1.6 |
| 28AWG | 0.07mm2 | 7/0.12 | 0.9 | 1.1 | 1.4 | 1.65 |
| - | 0.1mm2 | 7/0.14 | 1 | 1.2 | 1.55 | 1.75 |
| 26AWG | 0.14mm2 | 7/0.16 | 1.1 | 1.3 | 1.65 | 1.95 |
| 24AWG | 0.2mm2 | 19/0.12 | 1.2 | 1.4 | 1.75 | 1.98 |
| - | 0.3mm2 | 7/0.23 | 1.25 | 1.48 | 1.8 | 2.05 |
| 22AWG | 0.35/0.40mm2 | 19/0.16 | 1.4 | 1.6 | 1.95 | 2.2 |
| 20AWG | 0.5mm2 | 19/0.18 | 1.6 | 1.8 | 2.2 | 2.4 |
| - | 0.6mm2 | 19/0.20 | 1.75 | 1.98 | 2.3 | 2.5 |
| - | 0.75/0.80mm2 | 19/0.23 | 1.8 | 2.1 | 2.4 | 2.6 |
| 18AWG | 1mm2 | 19/0.26 | 2 | 2.2 | 2.6 | 2.9 |
| 16AWG | 1.2mm2 | 19/0.28 | 2.2 | 2.4 | 2.8 | 3.1 |
| - | 1.5mm2 | 19/0.32 | 2.4 | 2.6 | 3.1 | 3.3 |
| 14AWG | 2mm2 | 19/0.37 | 2.7 | 2.9 | 3.4 | 3.6 |
| - | 2.5mm2 | 37/0.30 | 3.4 | 3.6 | 4.2 | 4.4 |
| 12AWG | 3mm2 | 37/0.32 | 3.6 | 3.8 | 4.4 | 4.6 |
| - | 4mm2 | 37/0.37 | 4 | 4.2 | 4.8 | 5.1 |
| 10AWG | 5mm2 | 37/0.41 | 4.5 | 4.7 | 5.3 | 5.6 |
| - | 6mm2 | 37/0.45 | 4.8 | 5 | 5.7 | 5.9 |
| 8AWG | 8mm2 | 133/0.28 | 6 | 6.5 | 6.8 | 7.3 |
Noted:Specification and core no. are not limited to above regulation,they could be customized.
