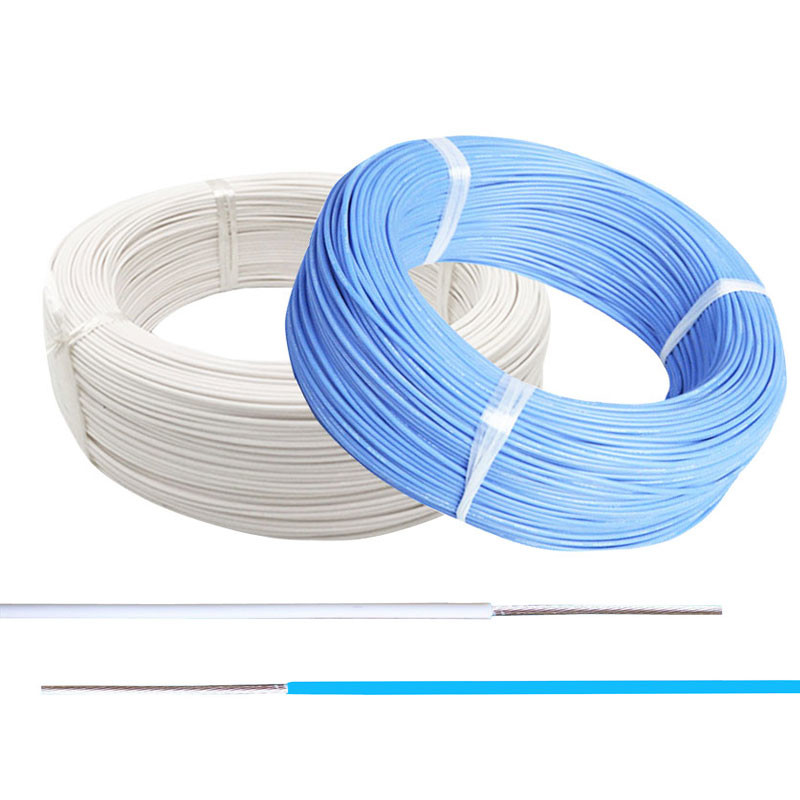

20AWG Silver Plated Copper High Temperature Resistance PFA Insulated Wire

100m
MOQ
Negotiation
Price
20AWG Silver Plated Copper High Temperature Resistance PFA Insulated Wire
Features Gallery Product Description Request A Quote
Features
Specifications
Insulated Material: PFA
Conductor Material: Silver Plated Copper
Working Temperature: -65℃ ~+250 ℃
Rated Voltage: AC 600V Or Lower
Wire Gauge: 28AWG, 26AWG, 24AWG, 22AWG, 20AWG, 18AWG, 16AWG, 14AWG, 12AWG, 10AWG...
Available Colors: White, Blue, Purple, Red, Yellow, Black, Orange, Brown...
Core Number: Single Color Or Multicores
Sample: Freely Supplied
Basic Infomation
Place of Origin: China
Brand Name: SANCO
Certification: ISO9001
Model Number: AFK-250
Payment & Shipping Terms
Packaging Details: Cable tray or Packing in roll with carton box
Delivery Time: 3~8days
Supply Ability: 250000M/Per Month
Product Description

20AWG Silver Plated Copper High Temperature Resistance PFA Insulated Wire





About PFA wire

1. High and low temperature resistance: PFA wire long-term working temperature range is -80-+250℃, does not affect its insulation characteristics.
It is flexibility at low temperature.
In high temperature which can reach 300℃ in a short time, with non-combustion characteristics
2. Excellent corrosion resistance: PFA is almost insoluble in any solvent
3. Excellent weather resistance: PFA does not absorb moisture and not burn, it is extremely stable to oxygen and ultraviolet light



Using Condition:

1. Rated voltage: AC600V and Below
2. Working temperature: -65
~ +250

3. Insulation resistance is not less than 1x103MΩ
4. Wire relative humidity: 95%±3.
5. Test Voltage: (Under AC 50Hz )2000V/5min





pfa wire.jpg



type Name
AFK-250 PFA insulated silver plated copper high temperature wire
AFKP-250 PFA insulated silver plated copper shielded high temperature wire



Section area
(mm2)
Wire gauge
AWG
Conductor construction
piece/diameter
(mm)
Insulation thickness
(mm)
Outer diameter
(mm)
Max. Conductor resistance at 20
(Ω/Km)
0.05mm2 30AWG 7/0.1mm 0.2mm 0.7mm 376.2
0.2mm2 24AWG 7/0.2mm 0.30 1.2mm 83.5
0.35mm2 22AWG 19/0.16mm 0.35mm 1.4mm 49.5
0.5mm2 20AWG 19/0.18mm 0.35mm 1.6mm 36.7
1mm2 18AWG 19/0.26mm 0.35mm 2mm 19
1.2mm2 16AWG 19/0.28mm 0.35mm 2.1mm 15.3
2mm2 14AWG 19/0.37mm 0.4mm 2.65mm 9.45
8mm2 8AWG 133/0.28mm 0.5mm 5.2mm 2.16
20mm2 4AWG 133/0.45mm 0.6mm 8.0mm 0.886



20AWG Silver Plated Copper High Temperature Resistance PFA Insulated Wire 1



20AWG Silver Plated Copper High Temperature Resistance PFA Insulated Wire 2














20AWG Silver Plated Copper High Temperature Resistance PFA Insulated Wire 320AWG Silver Plated Copper High Temperature Resistance PFA Insulated Wire 4
