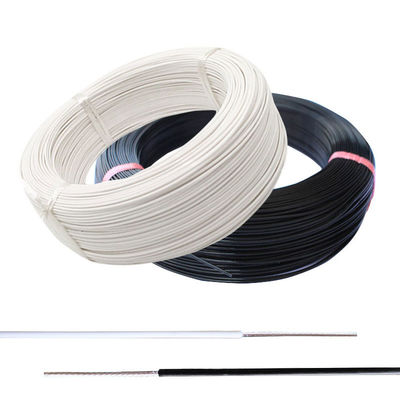

22AWG Heat Resistant Silver Plated Copper Extruded PFA Insulation Wire

100m
MOQ
Negotiation
Price
22AWG Heat Resistant Silver Plated Copper Extruded PFA Insulation Wire
Features Gallery Product Description Request A Quote
Features
Specifications
Insulated Material: PFA
Conductor Material: Silver Plated Or Tinned Plated Copper
Working Temperature: -65℃ ~+250℃
Rated Voltage: AC 600V Or Below
Wire Gauge: 30~8AWG
Available Colors: White, Black, Green, Blue, Red, Yellow, Orange, Brown...
Core Number: Single Core Or Multicores
Sample: Freely Supplied If Available
Basic Infomation
Place of Origin: China
Brand Name: SANCO
Certification: ISO9001
Model Number: AFK-250
Payment & Shipping Terms
Packaging Details: Cable tray or Packing in roll with carton box
Delivery Time: 3~8days
Supply Ability: 250000M/Per Month
Product Description

20AWG Silver Plated Copper High Temperature Resistance PFA Insulated Wire





Applications:

1. Internal wiring for electronic devices, information devices etc.

2. Military Industry

3. Oil and Gas Industry

4. Aerospace Industry



Specification:

Insulated: PFA Insulated

Conductor Materials: Silver Plated Stranded Copper

Core Number: Single Core or Multicores

Working temperature: -65℃~+250℃

Wire Gauge: 30 ~ 8 AWG

Available Colors: Black, White, Yellow, Brown, Red, Purple, GreenBlue and etc...





pfa wire.jpg



type Name
AFK-250 PFA insulated silver plated copper high temperature wire
AFKP-250 PFA insulated silver plated copper shielded high temperature wire



Section area
(mm2)
Wire gauge
AWG
Conductor construction
piece/diameter
(mm)
Insulation thickness
(mm)
Outer diameter
(mm)
Max. Conductor resistance at 20
(Ω/Km)
0.05mm2 30AWG 7/0.1mm 0.2mm 0.7mm 376.2
0.2mm2 24AWG 7/0.2mm 0.30 1.2mm 83.5
0.35mm2 22AWG 19/0.16mm 0.35mm 1.4mm 49.5
0.5mm2 20AWG 19/0.18mm 0.35mm 1.6mm 36.7
1mm2 18AWG 19/0.26mm 0.35mm 2mm 19
1.2mm2 16AWG 19/0.28mm 0.35mm 2.1mm 15.3
2mm2 14AWG 19/0.37mm 0.4mm 2.65mm 9.45
8mm2 8AWG 133/0.28mm 0.5mm 5.2mm 2.16
20mm2 4AWG 133/0.45mm 0.6mm 8.0mm 0.886



22AWG Heat Resistant Silver Plated Copper Extruded PFA Insulation Wire 1



22AWG Heat Resistant Silver Plated Copper Extruded PFA Insulation Wire 2














22AWG Heat Resistant Silver Plated Copper Extruded PFA Insulation Wire 322AWG Heat Resistant Silver Plated Copper Extruded PFA Insulation Wire 4
