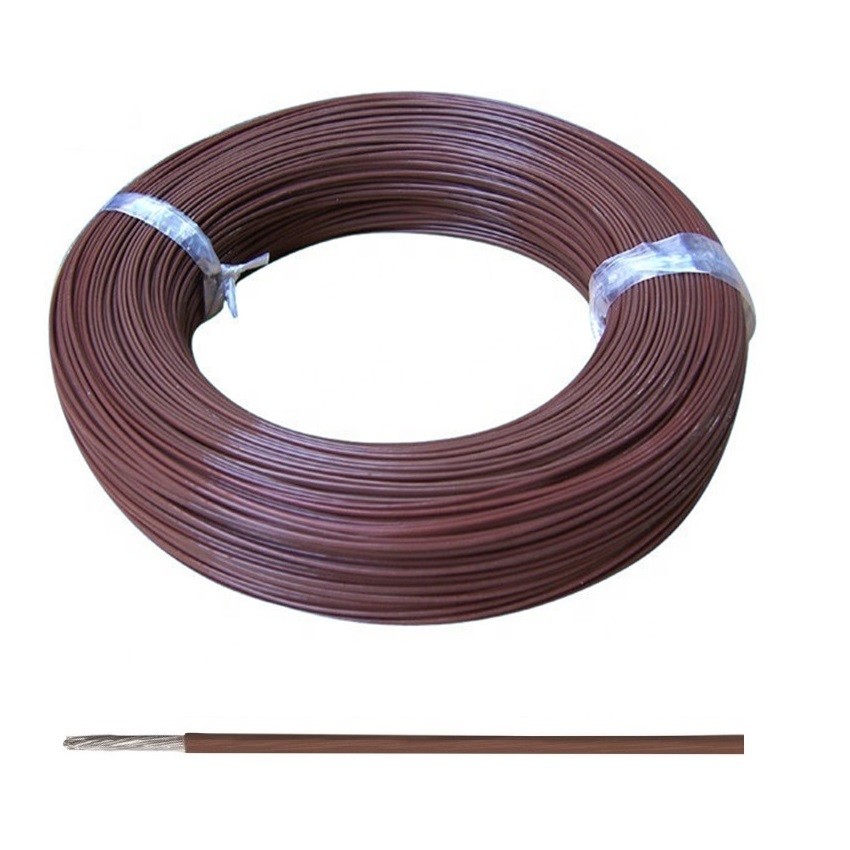

FEP Insulated Wire 200 ℃ With Tinned Silver Plated Copper Wire
Applications of FEP Insulated wire:
The FEP insulated suitable for the connection of electrical equipment and instrument lines under high temperature conditions of 600V and below. Such as aerospace, defense science and technology metallurgical chemical, electric refining, ship roads and other high-tech fields and vehicle manufacturing, video equipment, lighting equipment, baking room drying tunnel.
What is FEP Insulated wire:
FEP Insulated wire has excellent corrosion resistance, almost insoluble in any organic solvent, oil resistance, strong acid resistance, strong alkali resistance, strong oxidizing agent, etc.; excellent electrical insulation performance, high voltage resistance, low frequency loss, no moisture absorption, insulation Large resistance; excellent non-combustible, non-aging performance, oxygen index ≥ 90, long service life.
Properties:
1. Rated voltage: AC 600V
2. Working temperature: -65 ~ +200 ° C
3. Conductor type: solid core or stranded
4. Conductor materials:Tin or silver plated copper wire
5. Insulation: FEP Insulation
6. Color: red/yellow/blue/white/black/yellow green /brown etc.
Where To Buy Fep Wire?You can contact SANCO cable anytime.
vicky@sancocable.com
Whatsapp:+86 13100323537
| Wire gauge | Cross-section area | Conductor structure | Max. OD of cable(mm) | |||
| AF-200 AF-200-1 |
AFP-200 | |||||
| AWG | mm2 | mm | 250V | 600V | 250V | 600V |
| 36AWG | 0.013mm2 | 7/0.05 | 0.65 | 0.85 | 1.1 | 1.3 |
| 32AWG | 0.035mm2 | 7/0.08 | 0.75 | 0.95 | 1.2 | 1.4 |
| 30AWG | 0.05mm2 | 7/0.10 | 0.85 | 1.05 | 1.35 | 1.6 |
| 28AWG | 0.07mm2 | 7/0.12 | 0.9 | 1.1 | 1.4 | 1.65 |
| - | 0.1mm2 | 7/0.14 | 1 | 1.2 | 1.55 | 1.75 |
| 26AWG | 0.14mm2 | 7/0.16 | 1.1 | 1.3 | 1.65 | 1.95 |
| 24AWG | 0.2mm2 | 19/0.12 | 1.2 | 1.4 | 1.75 | 1.98 |
| - | 0.3mm2 | 7/0.23 | 1.25 | 1.48 | 1.8 | 2.05 |
| 22AWG | 0.35/0.40mm2 | 19/0.16 | 1.4 | 1.6 | 1.95 | 2.2 |
| 20AWG | 0.5mm2 | 19/0.18 | 1.6 | 1.8 | 2.2 | 2.4 |
| - | 0.6mm2 | 19/0.20 | 1.75 | 1.98 | 2.3 | 2.5 |
| - | 0.75/0.80mm2 | 19/0.23 | 1.8 | 2.1 | 2.4 | 2.6 |
| 18AWG | 1mm2 | 19/0.26 | 2 | 2.2 | 2.6 | 2.9 |
| 16AWG | 1.2mm2 | 19/0.28 | 2.2 | 2.4 | 2.8 | 3.1 |
| - | 1.5mm2 | 19/0.32 | 2.4 | 2.6 | 3.1 | 3.3 |
| 14AWG | 2mm2 | 19/0.37 | 2.7 | 2.9 | 3.4 | 3.6 |
| - | 2.5mm2 | 37/0.30 | 3.4 | 3.6 | 4.2 | 4.4 |
| 12AWG | 3mm2 | 37/0.32 | 3.6 | 3.8 | 4.4 | 4.6 |
| - | 4mm2 | 37/0.37 | 4 | 4.2 | 4.8 | 5.1 |
| 10AWG | 5mm2 | 37/0.41 | 4.5 | 4.7 | 5.3 | 5.6 |
| - | 6mm2 | 37/0.45 | 4.8 | 5 | 5.7 | 5.9 |
| 8AWG | 8mm2 | 133/0.28 | 6 | 6.5 | 6.8 | 7.3 |
Noted:Specification and core no. are not limited to above regulation,they could be customized.
