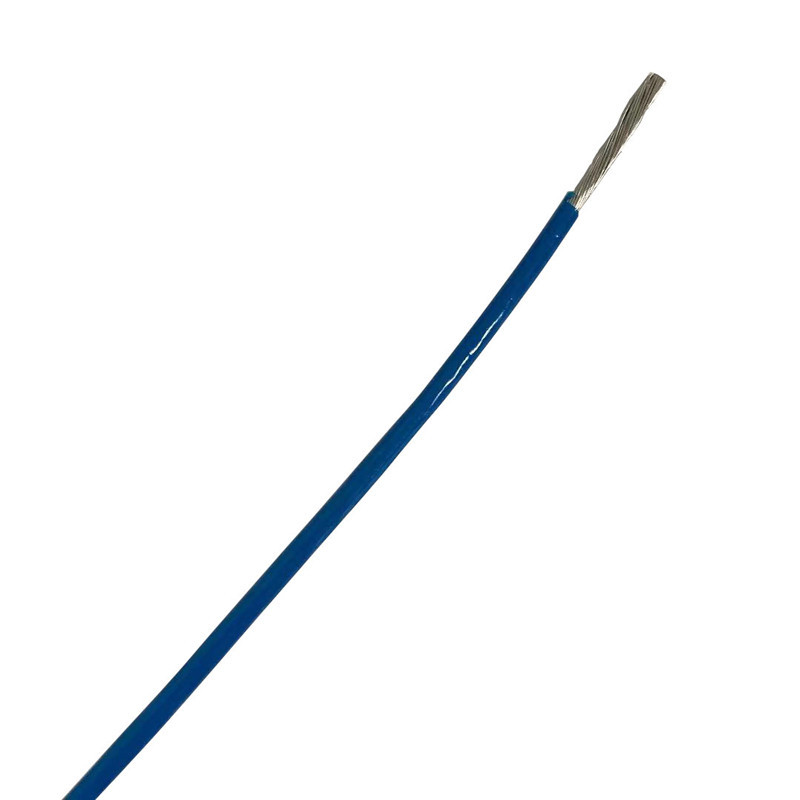

High Temperature PFA-Coated Silver Wire Manufacturer
What is PFA Wire?
PFA insulated wire is better than FEP insulated wire which has higher continuous service temperature and better stress cracking resistance, and have following features
1. Excellent fire resistance, chemical resistance, aging resistance,
2. Can resist strong acid, strong base;
3. Excellent resistance to humidity and UV;
4. Excellent electrical insulation performance, high insulation resistance;
5. Excellent mechanical strength;
Applications
Used for Household appliances,Precision equipment,PTC thermistors,Temperature sensor,automotive internal connection, electronic and electrical appliances etc.
Properties of PFA Wire
1. Insulation:PFA-coated
2. Conductor:Silver plated or nickel copper wire
3. Working temperature:-65℃~+250℃
4. Rated Voltage:250V or 600V
5. Outer diameter tolerance:±0.1mm
6. Color:White,blue,red,black,yellow,green,transparent,yellow/green
| Section area (mm2) |
Wire gauge AWG |
Conductor construction piece/diameter (mm) |
Insulation thickness (mm) |
Outer diameter (mm) |
Max. Conductor resistance at 20℃ (Ω/Km) |
Packing length (m) |
| 0.05mm2 | 30AWG | 7/0.1mm | 0.2mm | 0.7mm | 376.2 | 500 |
| 0.2mm2 | 24AWG | 7/0.2mm | 0.30 | 1.2mm | 83.5 | 200 |
| 0.35mm2 | 22AWG | 19/0.16mm | 0.35mm | 1.4mm | 49.5 | 200 |
| 0.5mm2 | 20AWG | 19/0.18mm | 0.35mm | 1.6mm | 36.7 | 200 |
| 0.75mm2 | - | 19/0.23mm | 0.35mm | 1.85mm | 22.7 | 200 |
| 1mm2 | 18AWG | 19/0.26mm | 0.35mm | 2mm | 19 | 200 |
| 1.2mm2 | 16AWG | 19/0.28mm | 0.35mm | 2.1mm | 15.3 | 200 |
| 1.5mm2 | - | 19/0.32mm | 0.4mm | 2.4mm | 11.7 | 200 |
| 2mm2 | 14AWG | 19/0.37mm | 0.4mm | 2.65mm | 9.45 | 100 |
| 2.5mm2 | - | 19/0.41mm | 0.5mm | 3.05mm | 6.86 | 100 |
| 4mm2 | - | 37/0.37mm | 0.5mm | 3.6mm | 4.51 | 100 |
| 6mm2 | - | 37/0.45mm | 0.5mm | 4.2mm | 3.05 | 100 |
| 8mm2 | 8AWG | 133/0.28mm | 0.5mm | 5.2mm | 2.16 | 100 |
| 10mm2 | - | 133/0.32mm | 0.5mm | 5.8mm | 1.68 | 100 |
| 16mm2 | - | 133/0.39mm | 0.6mm | 7.0mm | 1.13 | 100 |
| 20mm2 | 4AWG | 133/0.45mm | 0.6mm | 8.0mm | 0.886 | 100 |
| 25mm2 | - | 196/0.4mm | 0.6mm | 8.8mm | 0.734 | 100 |
| 35mm2 | - | 494/0.3mm | 0.7mm | 10.4mm | 0.511 | 100 |
| 50mm2 | - | 396/0.4mm | 0.8mm | 12.2mm | 0.358 | 100 |
| 70mm2 | - | 551/0.4mm | 1.0mm | 14.6mm | 0.27 | 100 |
| 95mm2 | - | 760/04mm | 1.2mm | 17.2mm | 0.21 | 100 |
