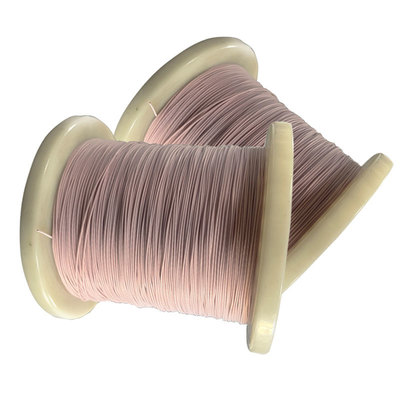

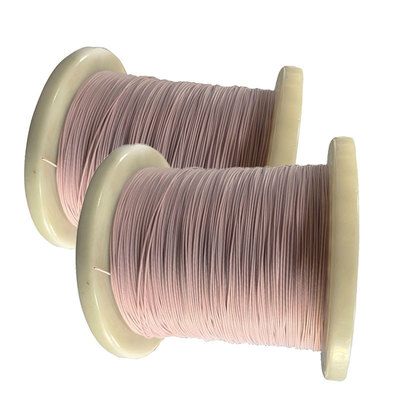

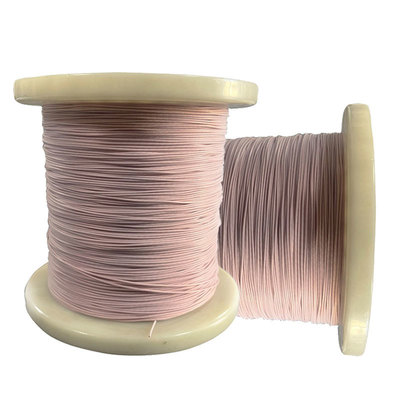

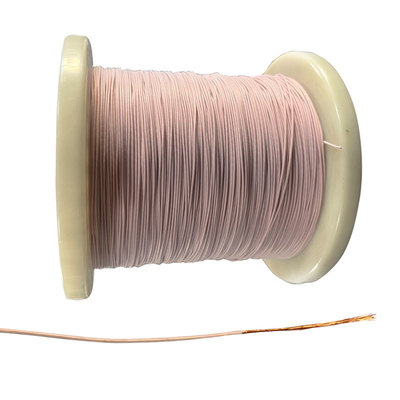

19/0.15mm High Temperature PTFE Insulated Bare Copper Wire
PTFE wrapping wire is a type of electrical wire insulated with polytetrafluoroethylene (PTFE), a high-performance synthetic fluoropolymer. With excellent thermal and chemical resistance properties, it is ideal for demanding applications in aerospace, medical devices, and electronics. The PTFE insulation provides protection against heat, moisture, and chemicals, while maintaining flexibility for easy handling and installation.
Product Features
- Excellent corrosion resistance
- Resistant to oils, strong acids, alkalis, and oxidants
- Superior electrical insulation capabilities
- High voltage and moisture resistance
- Flame-retardant and anti-aging properties
- Long service life
Cable Specifications
| Conductor Materials |
Silver Plated Copper or Bare Copper |
| Conductor Type |
Stranded or Solid |
| Insulation |
PTFE, FEP, PFA Insulated |
| Number Core |
Single Core or Multiple Cores |
| Size |
0.05~4mm² |
| Rated Voltage |
600V or Below |
| Rated Temperature |
-80~+200ºC |
| Color |
White, Blue, Red, Black, Yellow, Green, Transparent, Yellow/Green |
Types and Names
| Type |
Name |
| AFR-200 |
Bare Copper wire conductor PTFE film insulated lead wire |
| AFR-250 |
Silver plated copper wire conductor PTFE film insulated lead wire |
| AFP |
Bare Copper wire conductor PTFE film insulated screen lead wire |
| AFP-1 |
Silver plated copper wire conductor PTFE film insulated screen lead wire |
| AFRP-200 |
Bare Copper wire conductor PTFE film insulation shield lead wire |
| AFRP-250 |
Silver plated wire copper conductor PTFE film insulation shield lead wire |
| AFRPF-250, AFPF |
Silver plated wire copper conductor PTFE film insulation PTFE film sheath shield lead wire |
Cable Structure
| Wire Gauge |
Cross-section area |
Conductor structure |
Max.OD of wire mm |
Reference weight kg/km |
| 36AWG |
0.013 |
7/0.05 |
0.57 |
0.44 |
| 32AWG |
0.035 |
7/0.08 |
0.67 |
0.73 |
| - |
0.05 |
10/0.08 |
0.72 |
0.91 |
| - |
0.07 |
14/0.08 |
0.75 |
1.16 |
| - |
0.1 |
21/0.08 |
0.85 |
1.57 |
| 26AWG |
0.12 |
24/0.08 |
0.85 |
1.66 |
| - |
0.14/0.15 |
30/0.08 |
0.9 |
2.07 |
| 24AWG |
0.2 |
42/0.08 |
1 |
2.72 |
| - |
0.25 |
56/0.08 |
1.1 |
3.47 |
| 22AWG |
0.3 |
62/0.08 |
1.18 |
4.2 |
| - |
0.35 |
75/0.08 |
1.2 |
4.7 |
| 20AWG |
0.5 |
63/0.1 |
1.45 |
5.36 |
| - |
0.75/0.80 |
91/0.1 |
1.69 |
8.19 |
| 18AWG |
1 |
56/0.15 |
1.95 |
10.9 |
Note: Extruded PTFE cable core numbers and specifications are not limited to the above regulation and can be
customized.
Company Information
Xiangtan Shenzhou Special Cable Co., LTD is a stable wire and cable supplier of China's aerospace and military, with 21 years of experience. We produce our own cable compounds, which allows us to maintain superior quality and competitive pricing for global customers. Our main products include: High Temperature wires, PTFE Wire, FEP Wire, PFA Wire, ETFE Wire, Fluoroplastic Cables, Hook up wire, electronic cable, Power cable and more. We have advanced production facilities and an integrated management system, and collaborate with universities and research institutes to customize cables according to customer requirements.
Exhibition & Visit
In the past years, we participated in the Middle East Electricity Exhibition in Dubai, China-ASEAN Exposition, Power-Gen India. A delegation from Ezeagu Government of Nigeria visited our factory in 2017 and became a long-term partner.
Why Choose Us
Packing & Shipping
FAQ
1). Q: Are you a manufacturer or trading company?
A: We are a professional manufacturer, researching, developing and selling military and consumer cable wire and cable compound. The company is located in Hunan Province, China.
2). Q: What is your company's strengths?
A: We are a stable wire and cable supplier of China's aerospace and military, with 21 years of experience. We produce our own cable compounds, which allows us to maintain superior quality and competitive pricing for global customers.
3). Q: How do you guarantee your product quality?
A: Quality is our priority. We treat quality control as the most important aspect from design to final product, including materials procurement, manufacturing, semi-finished product testing, and finished product inspection.
4). Q: What's the warranty of your products?
A: We provide a 1-year complete warranty service. If products have quality problems, we will replace or return them unconditionally.
5). Q: How can I get the samples?
A: We can make sample orders for you. If the sample quantity is small and available in stock, we can provide them for free, but the freight must be covered by the customer.
