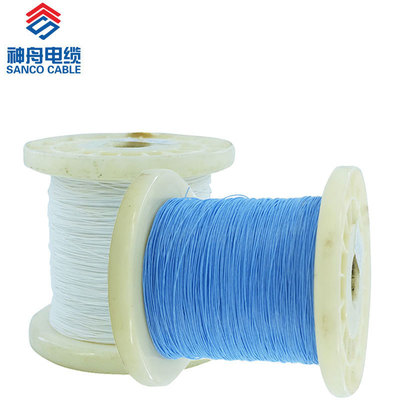

Silver Plated Copper Equipment Wire, PTFE Insulation Cable
What is PTFE Wire?
- PTFE wire is an electrical wire coated with polytetrafluoroethylene (PTFE), known for its excellent resistance to high temperatures, chemicals, and electrical stress.
- Ideal for high-performance applications in aerospace, defense, and medical equipment.
- Suitable for harsh environments where other wires would fail.
- Features excellent flexibility and low friction properties for easy installation and handling.
Product Features
Excellent corrosion resistance, oil resistance, strong acid/alkali resistance, and oxidant resistance. Features high electrical insulation capability, high voltage resistance, moisture resistance, and high insulation resistance. Flame-retardant, anti-aging, and long service life.
Cable Specifications
| Conductor Materials |
Silver Plated Copper, Tinned Plated Copper, Bare Copper |
| Conductor Type |
Stranded or Solid |
| Insulation |
PTFE, FEP, PFA Insulated |
| Number Core |
Single Core or Multiple Cores |
| Size |
0.05~3mm² |
| Rated Voltage |
600V or Below |
| Rated Temperature |
-80~+250ºC |
| Color |
White, Blue, Red, Black, Yellow, Green, Transparent, Yellow/Green |
Types and Names
| Type |
Name |
| AF-200 |
Silver plated copper wire conductor high temperature FEP insulated wire |
| AF-200-1 |
Tinned copper wire conductor high temperature FEP insulated wire |
| AFP-200 |
Tinned copper wire or silver plated copper wire core FEP insulated shielding wire |
| AFS-200 |
Tinned copper wire or silver plated copper wire core FEP insulated stranded cable |
| AFSP-200 |
Tinned or silver coated copper FEP insulated stranded shielding cable |
| AFR-200 |
Bare Copper wire conductor PTFE film insulated lead wire |
| AFR-250 |
Silver plated copper wire conductor PTFE film insulated lead wire |
| AFP |
Bare Copper wire conductor PTFE film insulated screen lead wire |
| AFP-1 |
Silver plated copper wire conductor PTFE film insulated screen lead wire |
| AFRP-200 |
Bare Copper wire conductor PTFE film insulation shield lead wire |
| AFRP-250 |
Silver plated wire copper conductor PTFE film insulation shield lead wire |
| AFRPF-250, AFPF |
Silver plated wire copper conductor PTFE film insulation PTFE film sheath shield lead wire |
Cable Structures
| Nominal Section (mm²) |
Conductor Construction (No/mm) |
Insulation Thickness (mm) |
Outer Diameter (mm) |
D.C. Conductor Resistance at 20ºC (Ω/km) |
| 0.05 |
10/0.08 |
0.3 |
0.9 |
383 | 370 |
| 0.06 |
7/0.10 |
0.3 |
0.9 |
348 | 339 |
| 0.08 |
7/0.12 |
0.3 |
0.96 |
286 | 280 |
| 0.1 |
7/0.14 |
0.3 |
1.02 |
157 | 150 |
| 0.12 |
7/0.15 or 30/0.07 |
0.3 |
1.05 |
152 | 145 |
| 0.14 |
7/0.16 or 19/0.10 |
0.3 |
1.08 |
136 | 130 |
| 0.15 |
30/0.08 |
0.3 |
1.1 |
111 | 105 |
| 0.2 |
7/0.02 or 19/0.12 |
0.3 |
1.2 |
87 | 82 |
| 0.35 |
19/0.16 |
0.3 |
1.4 |
57 | 54 |
| 0.5 |
19/0.18 |
0.3 |
1.5 |
40 | 37.5 |
| 0.8 |
19/0.23 |
0.32 |
1.79 |
24 | 23 |
| 1 |
19/0.26 |
0.35 |
2 |
21 | 20 |
| 1.2 |
19/0.28 |
0.45 |
2.3 |
19 | 18 |
| 1.5 |
19/0.32 |
0.45 |
2.5 |
13 | 12 |
| 2 |
19/0.37 |
0.45 |
2.75 |
10 | 9 |
| 2.5 |
37/0.30 |
0.55 |
3.2 |
8 | 7 |
| 3 |
37/0.32 |
0.68 |
3.6 |
6.8 | 6.4 |
Note: PTFE Wire core specifications are not limited to the above regulations and can be customized.
Company Information
Xiangtan Shenzhou Special Cable Co., LTD is a stable wire and cable supplier of China's aerospace and military, with 21 years of experience. We produce our own cable compounds, which allows us to maintain superior quality and competitive offers for global customers. Our main products include: High Temperature wires, PTFE cable, FEP Cable, PFA Wire, ETFE Cable, Fluoroplastic Cables, Hook up wire, electronic cable, and Power cable. We have advanced production facilities and integrated management systems, and collaborate with universities and research institutes. We can customize cables according to customer requirements while offering the best quality and most competitive prices.
Exhibition & Visit
In past years, we participated in the Middle East Electricity Exhibition in Dubai, China-ASEAN Exposition, and Power-Gen India. A delegation from Ezeagu Government of Nigeria visited our factory in 2017 and became long-term partners.
Why Choose Us
Packing & Shipping
FAQ
1. Are you a manufacturer or trading company?
We are a professional manufacturer, researching, developing, and selling military and consumer cable wire and cable compounds. The company is located in Hunan Province, China.
2. What is your company's strengths?
We are a stable wire and cable supplier for China's aerospace and military sectors, with 21 years of experience. We produce our own cable compounds, which allows us to maintain superior quality and competitive offers for global customers.
3. How do you guarantee your product quality?
Quality is our priority. We implement strict quality control from design and materials procurement through manufacturing, semi-finished product testing, and finished product inspection to ensure product quality.
4. What's the warranty of your products?
We provide a 1-year complete warranty service. If products have quality problems, we will replace or return them unconditionally.
5. How can I get the samples?
We can prepare sample orders for you. If the sample quantity is small and available in stock, we can provide them free of charge, but the freight will be your responsibility.
