Chemical Resistant and Flexible PFA Lead Wire with Excellent Electrical Insulation for High Temperature Applications

100
MOQ
Chemical Resistant and Flexible PFA Lead Wire with Excellent Electrical Insulation for High Temperature Applications
Features Gallery Product Description Request A Quote
Features
Specifications
Conductor Material: Silver Plated
Insulation Material: PFA
Rated Voltage: 600V
Conductor Type: Stranded
Temperature Range: -60~+250℃
Wire Gauge: 12 16 18 20 24 Gauge Etc.
Color Options: 10 Base Colors
Max Temperature: 260°C
Chemical Resistance: High
Electrical Insulation: Excellent
Flexibility: High
Core Number: Single Core
Packing Length: 100m/roll Or 500m/roll
Wire Gauge Range: 36awg~3/0awg
Working Temperature: -65℃ ~ +250℃
Highlight:

Chemical Resistant PFA Lead Wire

,

Flexible PFA Insulated Wire

,

Electrical Insulation High Temperature Wire
Basic Infomation
Place of Origin: Hunan, China
Brand Name: Sanco cable
Model Number: AFK-250
Payment & Shipping Terms
Product Description
Stranded Pure Nickel Plated Copper PFA Lead Wire
Product Description
What is PFA lead wire? PFA lead wire refers to electrical wire insulated with perfluoroalkoxy (PFA) polymer, a fluoropolymer known for its exceptional thermal stability, chemical resistance, and electrical insulating properties.
Key Characteristics
  • High Temperature Resistance: Withstands temperatures up to 260°C (500°F), ideal for demanding environments.
  • Chemical Resistance: Highly resistant to acids, bases, and solvents for harsh industrial applications.
  • Low Friction: Smooth surface allows for easy movement and flexibility in dynamic installations.
  • Electrical Insulation: Excellent dielectric properties for reliable electrical performance.
  • Flexibility: Facilitates installation in tight spaces and complex configurations.

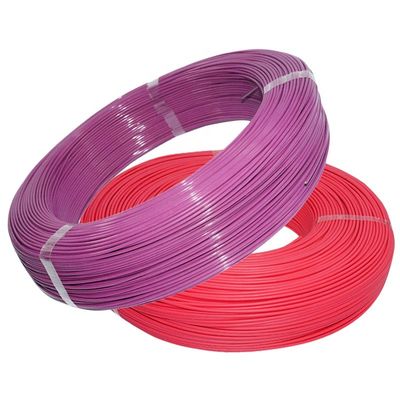

Chemical Resistant and Flexible PFA Lead Wire with Excellent Electrical Insulation for High Temperature Applications 0
Specifications
Application Connection of circuit of instruments and precision equipment under high temperature
Advantages Small diameter, wear resistant, scratch resistant, high/low temperature resistant, corrosion resistant, anti-interference
Color Options Black, brown, red, yellow, green, blue, purple, gray, white
Conductor Silver plated copper wire / Nickel plated copper wire
Insulation PFA insulated
Conductor Type Stranded or solid
Working Temperature -65℃ to +250℃
Rated Voltage AC 600V
Wire Gauge 36awg to 3/0awg
Core Number Single Core
Packing Length 100m/roll or 500m/roll
Free Sample Yes

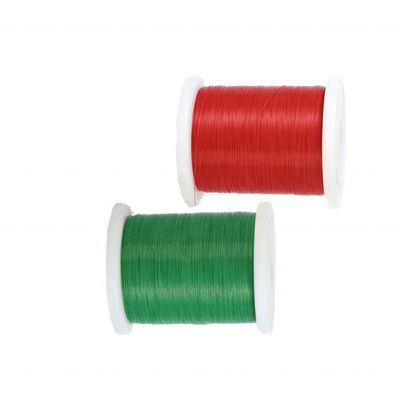

Chemical Resistant and Flexible PFA Lead Wire with Excellent Electrical Insulation for High Temperature Applications 1
About Xiangtan Shenzhou Special Cable Co., Ltd.
A leading enterprise dedicated to research, development, and production of high-performance special cables and wires. Our products serve demanding industries including aerospace, medical equipment, industrial automation, new energy, and defense systems.
Your Expert in High-Performance Specialty Cables
  • 22 years of industry expertise in high-temperature wires (PTFE/FEP/PFA/ETFE) and ultra-flexible cables
  • End-to-end customization from material selection to mass production
  • Products feature operating range of -100℃ to 500℃ with over 20 million bend cycles
  • Global service with fast response (24-hour solution design) and flexible production quantities

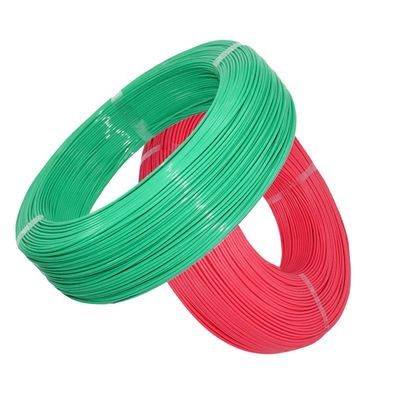

Chemical Resistant and Flexible PFA Lead Wire with Excellent Electrical Insulation for High Temperature Applications 2
Quality Assurance
  • Comprehensive quality control system with 20+ rigorous tests
  • Imported testing instruments ensuring international standards compliance
  • 500+ sqm professional testing laboratory
  • Dedicated QC team

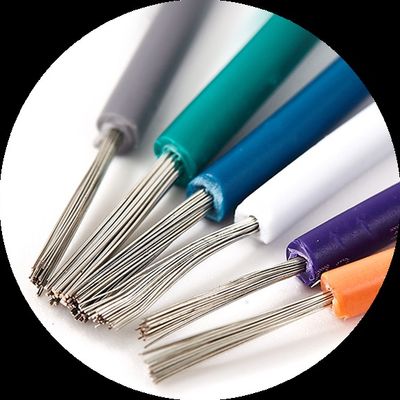

Chemical Resistant and Flexible PFA Lead Wire with Excellent Electrical Insulation for High Temperature Applications 3
Why Choose Us
  • 22+ years of special cable R&D and manufacturing experience
  • Certified by CCC, Weapons and Equipment, and ISO9001 standards
  • Trusted supplier for China's aerospace and military applications
  • Advanced testing equipment and small order acceptance
  • Free samples and design services with 1-3 year warranty
  • Full customization from material to design

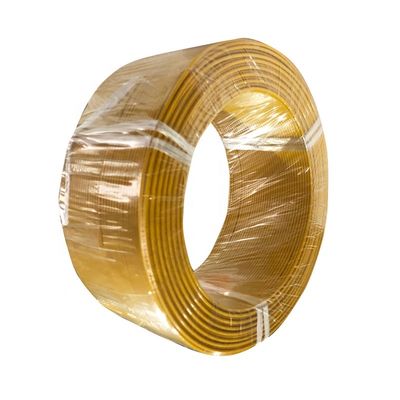

Chemical Resistant and Flexible PFA Lead Wire with Excellent Electrical Insulation for High Temperature Applications 4
Packing & Delivery
  • Moisture-proof and fumigation industrial packaging
  • Customized options: carton box, wooden cases & pallets
  • Sea/air/express shipping with 99% on-time delivery worldwide

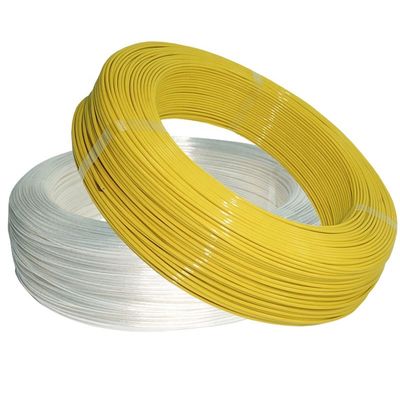

Chemical Resistant and Flexible PFA Lead Wire with Excellent Electrical Insulation for High Temperature Applications 5
Contact Us
Chemical Resistant and Flexible PFA Lead Wire with Excellent Electrical Insulation for High Temperature Applications 6
