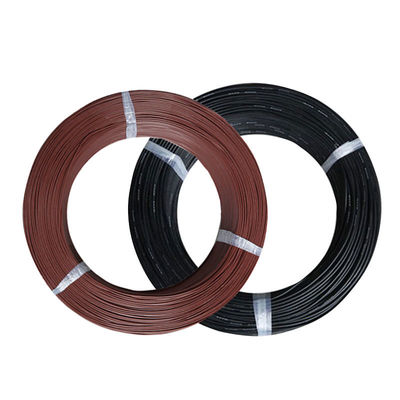

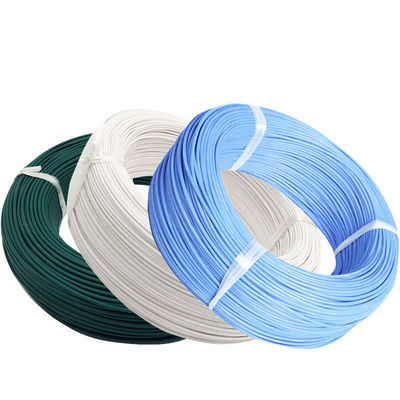

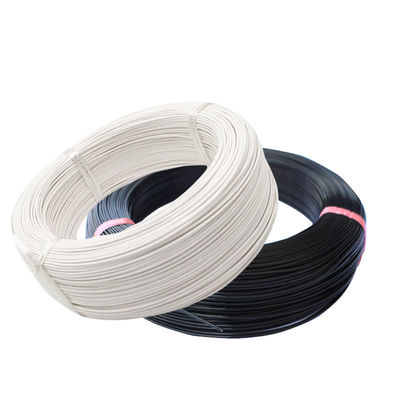

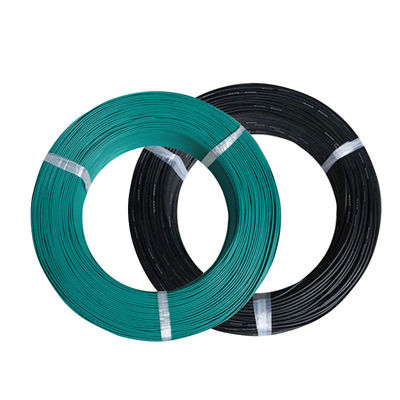

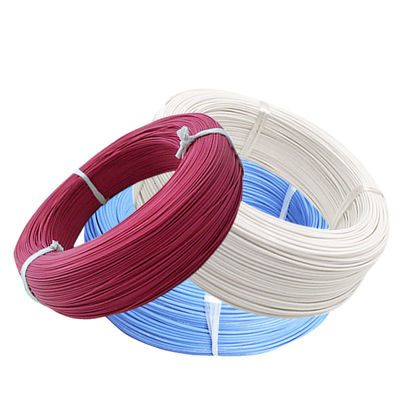

250 Degree Silver Plated Copper PFA Extruded Wire
What is PFA Wire?
PFA (Perfluoroalkoxy) Wire is a type of insulated wire that utilizes PFA, a fluoropolymer known for its exceptional properties. PFA is renowned for its high thermal stability, chemical resistance, and excellent electrical insulation capabilities, making it ideal for demanding applications.
Key Features and Benefits
- High Temperature Resistance: Withstands extreme temperatures from -200°C to +250°C, ensuring reliable performance in challenging environments.
- Chemical Resistance: Outstanding resistance to acids, bases, and solvents, making it suitable for harsh chemical environments.
- Electrical Insulation: Superior dielectric properties ensure minimal interference and maximum signal integrity.
- Durability and Flexibility: Robust yet flexible construction for easy installation and maintenance.
- Low Friction Surface: Non-stick properties prevent debris accumulation for long-term reliability.
Applications
PFA Wire is versatile for use in:
- Aerospace and defense systems
- Automotive wiring harnesses
- Telecommunications equipment
- Medical devices
- Industrial machinery
- High-temperature sensors and instrumentation
Product Types
| Type | Name |
|---|
| AFK-250 | Silver plated copper wire core high temperature PFA insulated electric wire |
| AFKP-250 | Silver plated copper wire high temperature PFA insulated shielding electric wire |

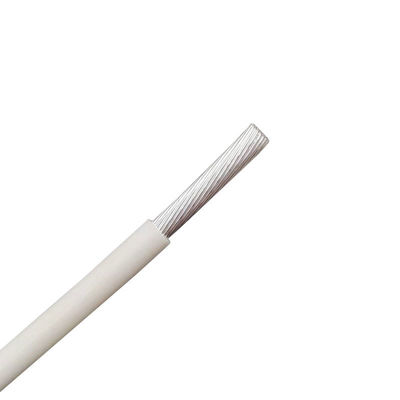

Cable Specification and Structure
Insulation: PFA insulated
Conductor: Silver plated copper wire or Tinned copper wire, bare copper wire
Technical Specifications
| Sectional Area (mm²) | Conductor Construction (mm) | Insulation Thickness (mm) | Outer Diameter (mm) | Max Conductor Resistance DC20℃(Ω/km) |
|---|
| 0.05mm² | 7/0.10mm | 0.20mm | 0.70mm | 376.2 |
| 0.20mm² | 7/0.20mm | 0.30mm | 1.20mm | 83.5 |
| 0.35mm² | 19/0.16mm | 0.30mm | 1.40mm | 49.5 |
| 0.50mm² | 19/0.18mm | 0.35mm | 1.60mm | 36.0 |
| 0.75mm² | 19/0.23mm | 0.35mm | 1.85mm | 22.7 |
| 1.0mm² | 19/0.26mm | 0.35mm | 2.00mm | 19.0 |
| 1.20mm² | 19/0.28mm | 0.35mm | 2.10mm | 15.3 |
| 1.50mm² | 19/0.32mm | 0.40mm | 2.40mm | 11.7 |
| 2.0mm² | 19/0.37mm | 0.40mm | 2.65mm | 9.45 |
| 2.5mm² | 19/0.41mm | 0.50mm | 3.05mm | 6.86 |
| 4.0mm² | 37/0.37mm | 0.50mm | 3.60mm | 4.51 |
| 6.0mm² | 37/0.45mm | 0.50mm | 4.20mm | 3.05 |
| 8.0mm² | 133/0.28mm | 0.50mm | 5.20mm | 2.16 |
| 10mm² | 133/0.62mm | 0.50mm | 5.80mm | 1.68 |
| 16mm² | 133/0.39mm | 0.60mm | 7.0mm | 1.13 |
| 20mm² | 133/0.45mm | 0.60mm | 8.0mm | 0.886 |
| 25mm² | 196/0.40mm | 0.60mm | 8.8mm | 0.734 |
| 35mm² | 494/0.30mm | 0.70mm | 10.4mm | 0.511 |
| 50mm² | 396/0.40mm | 0.80mm | 12.2mm | 0.358 |
| 70mm² | 551/0.40mm | 1.0mm | 14.6mm | 0.270 |
| 95mm² | 760/0.40mm | 1.2mm | 17.2mm | 0.210 |
Product Specifications
| Name | PFA Insulated High Voltage Electrical Cables and Wire |
|---|
| Conductor Materials | Silver Plated Copper or Tinned Plated Copper |
|---|
| Conductor Type | Solid or Stranded |
|---|
| Number Cores | Single Core, 2 Cores, 3 Cores, 4 Cores, 5 Cores |
|---|
| Insulation | PFA, FEP, PTFE, ETFE Insulated |
|---|
| Rated Voltage | 600V or Below |
|---|
| Color | White, Black, Brown, Green, Red, Yellow, Blue, etc. |
|---|
| Working Temperature | -65℃ to +250℃ |
|---|
About Our Company
Xiangtan Shenzhou Special Cable Co., LTD is a stable wire and cable supplier of China's aerospace and military with 21 years experience. We produce our own cable compounds, enabling us to maintain superior quality and competitive pricing.
Our main products include: High Temperature wires, PTFE cable, FEP Cable, PFA Wire, ETFE Cable, Robot cable, Drag chain cable, Super flexible cable, Hook up wire, electronic cable, and Power cable.
We have advanced production facilities, integrated management systems, and collaborate with universities and research institutes to develop customized cable solutions.
Quality Commitment
We focus on quality throughout our manufacturing process. Our company carries out its responsibility for product quality, guarantees repair, replacement and return for products with quality problems, and compensates for direct economic losses caused by quality issues.
Frequently Asked Questions
1. Are you a manufacturer or trading company?
We are a professional manufacturer, researching, developing and selling military and consumer cable wire and cable compounds. Our company is located in Hunan Province, China.
2. What is your company's strengths?
We are a stable wire and cable supplier for China's aerospace and military with 21 years experience. We produce our own cable compounds, which allows us to maintain superior quality and competitive offers.
3. How do you guarantee your product quality?
Quality is our priority. We implement strict quality control from design and materials procurement through manufacturing and final product inspection to ensure product quality.
4. What's the warranty of your products?
We provide 1 year complete warranty service. If products have quality problems, we will replace or return them unconditionally.
5. How can I get samples?
We can prepare sample orders. For small quantities available in stock, we can provide samples free of charge, with the customer responsible for freight costs.
Contact Us
For more information about our 250 Degree Silver Plated Copper PFA Extruded Wire or other products, please contact our sales team.
