0.35mm2 PFA Insulated Wire with AC600V Rated Voltage and 1-5 Core Options for High Temperature Applications

500
MOQ
0.35mm2 PFA Insulated Wire with AC600V Rated Voltage and 1-5 Core Options for High Temperature Applications
Features Gallery Product Description Request A Quote
Features
Specifications
Conductor Material: Tinned Plated Copper
Insulation Material: PFA
Rated Voltage: AC600V And Below
Working Temperature: -65℃~+250℃
Conductor Type: Stranded, Solid Or Stranded
Core Number: 1-5 Core
Size Range: 0.05-6mm2
Insulation Thickness: 0.20mm-1.2mm
Outer Diameter: 0.70mm-17.2mm
Max Conductor Resistance: 376.2Ω/km-0.210Ω/km
Conductor Construction: 7/0.10mm-760/0.40mm
Temperature Range: -200°C To +250°C
Chemical Resistance: Acids, Bases, Solvents
Dielectric Properties: Superior
Flexibility: High
Highlight:

0.35mm2 PFA Insulated Wire

,

AC600V Rated Voltage PFA Wire

,

1-5 Core High Temperature Wire
Basic Infomation
Place of Origin: Hunan, China
Brand Name: Sanco Cable
Model Number: AFK-250
Payment & Shipping Terms
Product Description
0.35mm² PFA Insulation Tinned Plated Copper Wire
What is PFA Wire?

PFA (Perfluoroalkoxy) Wire is a type of insulated wire that utilizes PFA, a fluoropolymer known for its exceptional properties. PFA is renowned for its high thermal stability, chemical resistance, and excellent electrical insulation capabilities.

Key Features and Benefits
  • High Temperature Resistance: Withstands extreme temperatures from -200°C to +250°C, ensuring consistent performance in challenging conditions.
  • Chemical Resistance: Outstanding resistance to acids, bases, and solvents, making it ideal for harsh chemical environments.
  • Electrical Insulation: Superior dielectric properties ensure minimal electrical interference and maximum signal integrity.
  • Durability and Flexibility: Robust yet flexible construction for easy installation and maintenance.
  • Low Friction Properties: Smooth surface reduces friction and prevents debris accumulation.
Applications

PFA Wire is versatile and suitable for:

  • Aerospace and defense systems
  • Automotive wiring harnesses
  • Telecommunications equipment
  • Medical devices
  • Industrial machinery
  • High-temperature sensors and instrumentation
Product Types
Type Name
AFK-250 Silver plated copper wire core high temperature PFA insulated electric wire
AFKP-250 Silver plated copper wire high temperature PFA insulated shielding electric wire

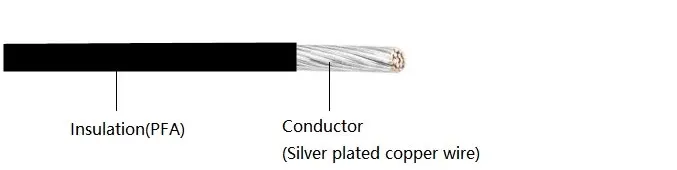

Cable Specification and Structure

Insulation: PFA insulated
Conductor: Silver plated copper wire or Tinned copper wire, bare copper wire

0.35mm² PFA Insulation Tinned Plated Copper Wire
Technical Specifications
Sectional Area (mm²) Conductor Construction (mm) Insulation Thickness (mm) Outer Diameter (mm) Max Conductor Resistance DC20℃ (Ω/km)
0.05mm² 7/0.10mm 0.20mm 0.70mm 376.2
0.20mm² 7/0.20mm 0.30mm 1.20mm 83.5
0.35mm² 19/0.16mm 0.30mm 1.40mm 49.5
0.35mm2 PFA Insulated Wire with AC600V Rated Voltage and 1-5 Core Options for High Temperature Applications 1
Product Specifications
Name PFA Insulated High Voltage Electrical Cables and Wire
Conductor Materials Silver Plated Copper or Tinned Plated Copper
Conductor Type Solid or Stranded
Number Cores Single Core, 2 Cores, 3 Cores, 4 Cores, 5 Cores
Insulation PFA, FEP, PTFE, ETFE Insulated
Rated Voltage 600V or Below
Color White, Black, Brown, Green, Red, Yellow, Blue
Working Temperature -65℃ to +250℃
Company Information

Xiangtan Shenzhou Special Cable Co., LTD is a stable wire and cable supplier of China's aerospace and military, with 21 years experience. We produce our own cable compounds, enabling us to maintain superior quality and competitive pricing.

Our main products include: High Temperature wires, PTFE cable, FEP Cable, PFA Wire, ETFE Cable, Robot cable, Drag chain cable, Super flexible cable, Hook up wire, electronic cable, and Power cable.

We have advanced production facilities and integrated management systems, with strong cooperation with universities and research institutes. We can customize cables according to customer requirements.

Certifications
  • Participated in China manned space flight project development (Shenzhou 7)
  • Collaborated with China Academy of Launch Vehicle Technology for "Arrow of God" project
FAQ
1. Are you a manufacturer or trading company?

We are a professional manufacturer, researching, developing and selling military and consumer cable wire and cable compounds.

2. What is your company's strengths?

We are a stable supplier to China's aerospace and military sectors with 21 years experience, producing our own cable compounds to ensure quality and competitive pricing.

3. How do you guarantee product quality?

We implement strict quality control from design through materials procurement, manufacturing, and final product inspection.

4. What's the warranty of your products?

We provide 1 year complete warranty service with unconditional replacement or return for quality issues.

5. How can I get samples?

We can provide samples; small quantities in stock may be free with customer covering freight costs.
