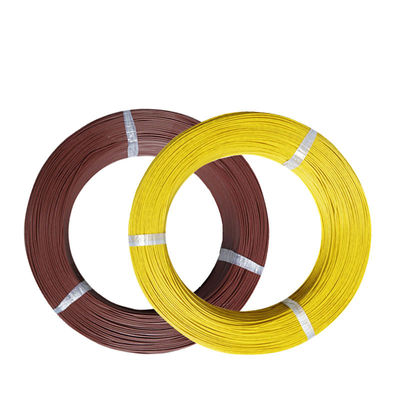

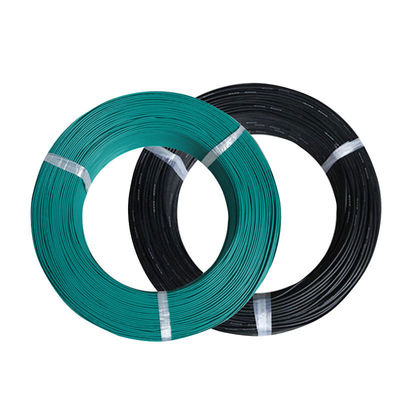

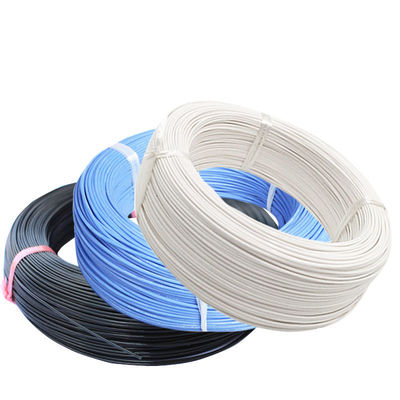

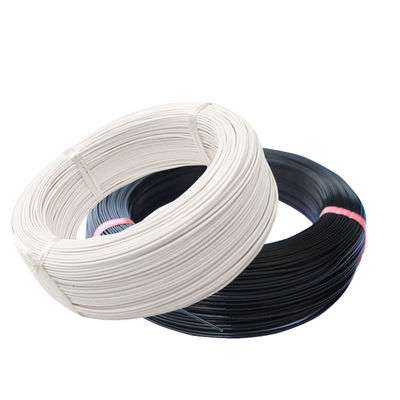

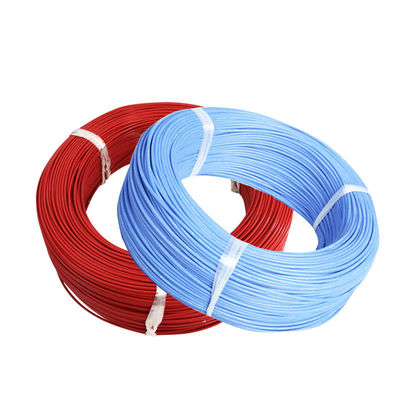

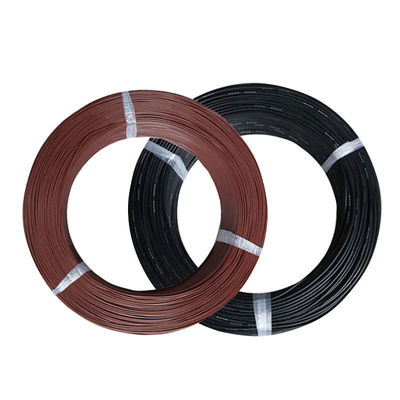

22AWG PFA Insulated Silver Plated Copper Wire with AC600V Rated Voltage for 1-5 Core Applications in 0.05-6mm2 Sizes

500
MOQ
22AWG PFA Insulated Silver Plated Copper Wire with AC600V Rated Voltage for 1-5 Core Applications in 0.05-6mm2 Sizes
Features Gallery Product Description Request A Quote
Features
Specifications
Conductor Material: Silver Plated Copper Or Tinned Plated Copper
Insulation Material: PFA
Rated Voltage: AC600V And Below
Working Temperature: -65℃~+250℃
Conductor Type: Stranded, Solid Or Stranded
Core Number: 1-5 Core
Size: 0.05-6mm2
Insulation Thickness: 0.20mm To 1.2mm
Outer Diameter: 0.70mm To 17.2mm
Max Conductor Resistance: 376.2 Ω/km To 0.210 Ω/km
Conductor Construction: 7/0.10mm To 760/0.40mm
Temperature Range: -200°C To +250°C
Chemical Resistance: Acids, Bases, Solvents
Dielectric Properties: Superior
Flexibility: High
Highlight:

AC600V Rated Voltage PFA Insulated Wire

,

1-5 Core PFA Insulated Copper Wire

,

0.05-6mm2 Size PFA Wire
Basic Infomation
Place of Origin: Hunan, China
Brand Name: Sanco Cable
Model Number: AFK-250
Payment & Shipping Terms
Product Description
22AWG PFA Insulated Silver Plated Copper Wire
Premium PFA Insulated Wire for Demanding Applications
PFA (Perfluoroalkoxy) Wire features a fluoropolymer insulation known for exceptional thermal stability, chemical resistance, and electrical insulation properties. This makes it ideal for applications requiring maximum performance and reliability.
Key Features and Benefits
  • High Temperature Resistance: Withstands extreme temperatures from -200°C to +250°C
  • Chemical Resistance: Excellent resistance to acids, bases, and solvents
  • Superior Electrical Insulation: Minimizes interference and maintains signal integrity
  • Durable & Flexible: Robust construction with easy handling
  • Low Friction Surface: Prevents debris accumulation for long-term reliability
Applications
Ideal for use in:
  • Aerospace and defense systems
  • Automotive wiring harnesses
  • Telecommunications equipment
  • Medical devices
  • Industrial machinery
  • High-temperature sensors and instrumentation
Product Types
Type Description
AFK-250 Silver plated copper wire core high temperature PFA insulated electric wire
AFKP-250 Silver plated copper wire high temperature PFA insulated shielding electric wire
Cable Specifications
Insulation: PFA
Conductor: Silver plated copper wire, Tinned copper wire, or Bare copper wire
22AWG PFA Insulated Silver Plated Copper Wire with AC600V Rated Voltage for 1-5 Core Applications in 0.05-6mm2 Sizes 0
Technical Specifications
Sectional Area (mm²) Conductor Construction (mm) Insulation Thickness (mm) Outer Diameter (mm) Max Conductor Resistance DC20℃ (Ω/km)
0.05mm² 7/0.10mm 0.20mm 0.70mm 376.2
0.20mm² 7/0.20mm 0.30mm 1.20mm 83.5
0.35mm² 19/0.16mm 0.30mm 1.40mm 49.5
22AWG PFA Insulated Silver Plated Copper Wire with AC600V Rated Voltage for 1-5 Core Applications in 0.05-6mm2 Sizes 1
Product Specifications
Feature Specification
Conductor Materials Silver Plated Copper or Tinned Plated Copper
Conductor Type Solid or Stranded
Number Cores Single Core, 2 Cores, 3 Cores, 4 Cores, 5 Cores
Insulation PFA, FEP, PTFE, ETFE Insulated
Rated Voltage 600V or Below
Color White, Black, Brown, Green, Red, Yellow, Blue
Working Temperature -65℃ to +250℃
About Our Company
Xiangtan Shenzhou Special Cable Co., LTD
As a stable wire and cable supplier for China's aerospace and military sectors with 21 years of experience, we produce our own cable compounds to ensure superior quality and competitive pricing. Our product range includes high temperature wires, PTFE cables, FEP cables, PFA wires, ETFE cables, robot cables, drag chain cables, and more.
We maintain advanced production facilities and integrated management systems, collaborating with universities and research institutes to provide customized cable solutions.
Quality Commitment
We guarantee product quality throughout the manufacturing process and offer a 1-year warranty with unconditional replacement or return for any quality issues.
22AWG PFA Insulated Silver Plated Copper Wire with AC600V Rated Voltage for 1-5 Core Applications in 0.05-6mm2 Sizes 2
Certifications & Honors
  • Contributed to China's Shenzhou 7 manned space flight project
  • Participated in China's first manned space flight development
  • Collaborated on the "Arrow of God" project for space exploration
22AWG PFA Insulated Silver Plated Copper Wire with AC600V Rated Voltage for 1-5 Core Applications in 0.05-6mm2 Sizes 3
Frequently Asked Questions
Are you a manufacturer or trading company?
We are a professional manufacturer specializing in research, development, and sales of military and consumer cable wire and cable compounds.
What is your company's strengths?
With 21 years of experience as a supplier to China's aerospace and military sectors, we produce our own cable compounds to maintain superior quality and competitive pricing.
How do you guarantee product quality?
We implement strict quality control from design and materials procurement through manufacturing and final inspection to ensure product excellence.
