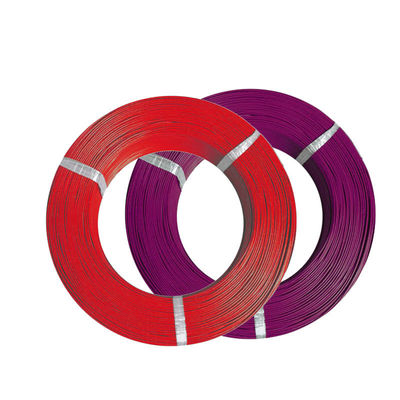

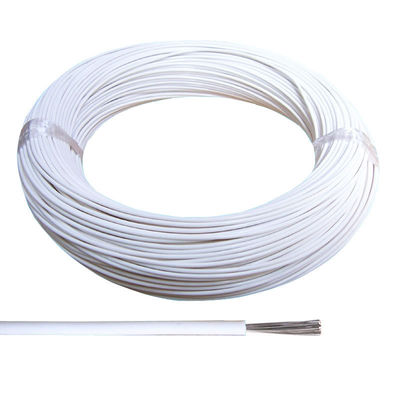

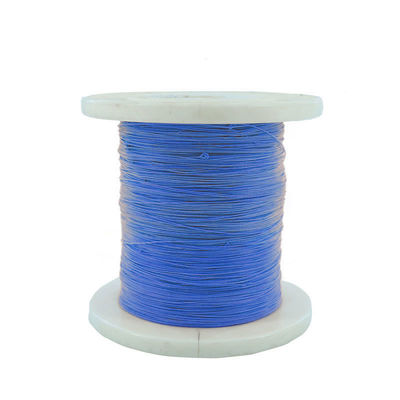

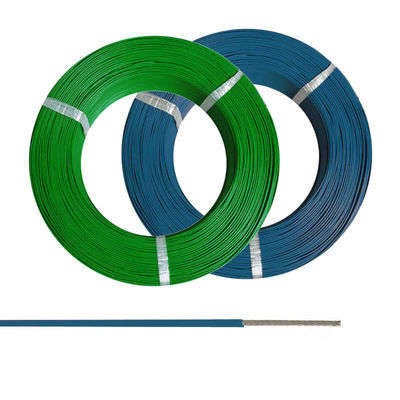

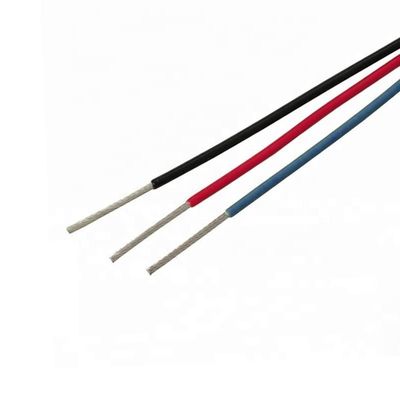

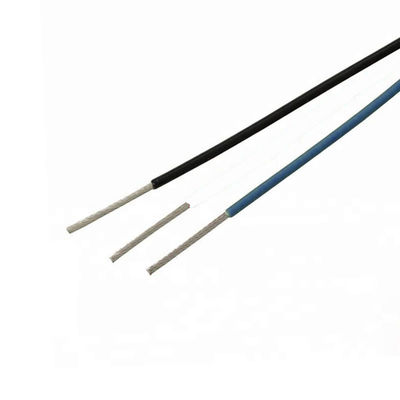

Tinned Copper 19 Strands FEP Heating Wire
FEP Insulated Wire refers to electrical wire insulated with Fluorinated Ethylene Propylene (FEP), a high-performance fluoropolymer known for its excellent electrical, thermal, and chemical resistance properties.
Key Features of FEP Insulated Wire
- High-Temperature Resistance - Operates effectively in temperatures ranging from -65°C to +200°C (-85°F to +392°F). Suitable for extreme environments, including aerospace and industrial applications.
- Excellent Dielectric Properties - Low dielectric constant and dissipation factor, making it ideal for high-frequency and high-speed signal transmission.
- Chemical Resistance - Resistant to acids, solvents, fuels, and corrosive chemicals.
- Low Friction & Non-Stick Surface - Smooth insulation reduces insertion force in connectors and prevents sticking.
- Flexibility & Durability - Maintains flexibility even at low temperatures.
Common Applications
- Aerospace & Defense (wiring harnesses, avionics)
- Medical Devices (catheters, surgical tools)
- Telecommunications (high-speed data cables)
- Semiconductor & Electronics (high-precision wiring)
- Industrial & Automotive (under-hood wiring, sensors)
Comparison with Other Insulation Types
| Property |
FEP |
PTFE |
PVC |
Silicone |
| Max Temp |
200°C |
250°C |
105°C |
180°C |
| Flexibility |
Excellent |
Good |
Good |
Excellent |
| Chemical Resist |
Excellent |
Excellent |
Moderate |
Good |
| Cost |
High |
High |
Low |
Medium |
Cable Specifications
| Conductor Materials |
Tinned Plated Copper, Silver Plated Copper, Bare Copper |
| Conductor Type |
Stranded or Solid |
| Number Core |
Single Core or Multiple Cores |
| Insulation |
FEP, PTFE, PFA Insulated |
| Rated Voltage |
600V or Below |
| Rated Temperature |
-65°C to +200°C |
| Color |
White, Blue, Red, Black, Yellow, Green, Transparent, Yellow/Green |
Cable Structures
| Wire gauge |
Cross-section area |
Conductor structure |
Max. OD of cable |
| 36AWG |
0.013mm² |
7/0.05 |
0.65 |
| 32AWG |
0.035mm² |
7/0.08 |
0.75 |
| 30AWG |
0.05mm² |
7/0.10 |
0.85 |
| 28AWG |
0.07mm² |
7/0.12 |
0.9 |
| - |
0.1mm² |
7/0.14 |
1 |
| 26AWG |
0.14mm² |
7/0.16 |
1.1 |
| 24AWG |
0.2mm² |
19/0.12 |
1.2 |
| - |
0.3mm² |
7/0.23 |
1.25 |
| 22AWG |
0.35/0.40mm² |
19/0.16 |
1.4 |
| 20AWG |
0.5mm² |
19/0.18 |
1.6 |
| - |
0.6mm² |
19/0.20 |
1.75 |
| - |
0.75/0.80mm² |
19/0.23 |
1.8 |
| 18AWG |
1mm² |
19/0.26 |
2 |
| 16AWG |
1.2mm² |
19/0.28 |
2.2 |
| - |
1.5mm² |
19/0.32 |
2.4 |
| 14AWG |
2mm² |
19/0.37 |
2.7 |
| - |
2.5mm² |
37/0.30 |
3.4 |
| 12AWG |
3mm² |
37/0.32 |
3.6 |
| - |
4mm² |
37/0.37 |
4 |
| 10AWG |
5mm² |
37/0.41 |
4.5 |
| - |
6mm² |
37/0.45 |
4.8 |
| 8AWG |
8mm² |
133/0.28 |
6 |
Note: FEP high temperature lead wire specification and core no. are not limited to above regulation, they could be customized.
