Corrosion Resistant Oil Resistant Strong Acid Resistant Silver Plated FEP Aircraft Wire for High Temperature Applications

500
MOQ
Corrosion Resistant Oil Resistant Strong Acid Resistant Silver Plated FEP Aircraft Wire for High Temperature Applications
Features Gallery Product Description Request A Quote
Features
Specifications
Conductor Material: Copper, Tinned Plated Copper Or Silver Plated Copper
Insulation Material: FEP
Conductor Type: Stranded Or Solid
Number Core: Single Core Or Multiple Cores
Rated Voltage: 600V Or Below
Rated Temperature: -65°C ~ +200°C
Wire Gauge: 36AWG To 8AWG
Cross-section Area: 0.013mm² To 8mm²
Conductor Structure: 7/0.05 To 133/0.28
Max OD: 0.65mm To 7.3mm
Color Options: White, Blue, Red, Black, Yellow, Green, Transparent, Yellow/Green
Insulation Type: FEP, PTFE, PFA
Stranded Type: Stranded Or Solid
Working Temperature: -65°C ~ +200°C
Voltage Rating: AC 600V Or Lower
Highlight:

Corrosion Resistant FEP Aircraft Wire

,

Oil Resistant FEP Insulated Wire

,

Strong Acid Resistant Silver Plated FEP Wire
Basic Infomation
Place of Origin: Hunan, China
Brand Name: Sanco cable
Model Number: AF-200 Series
Payment & Shipping Terms
Product Description

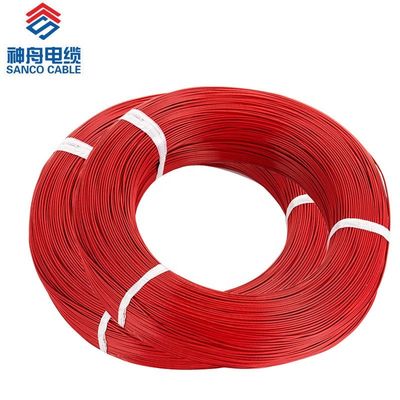

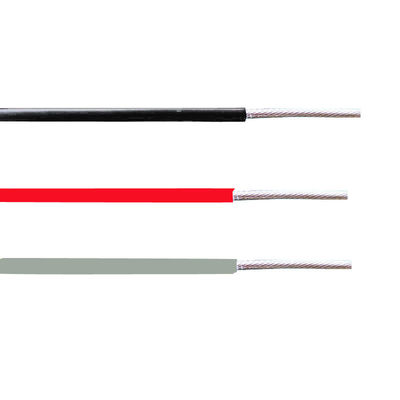

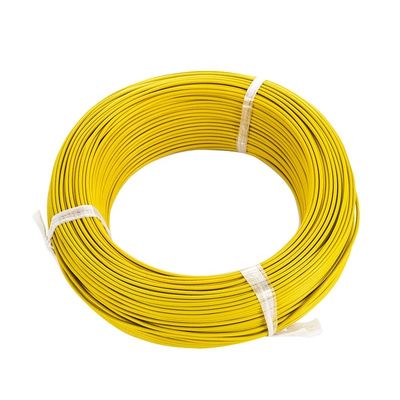

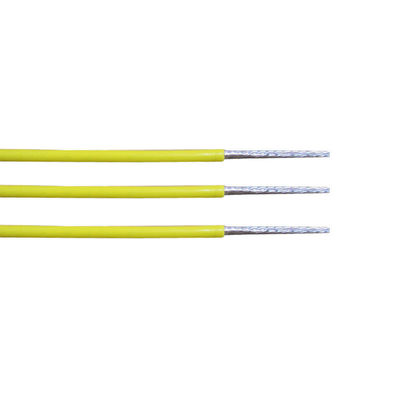

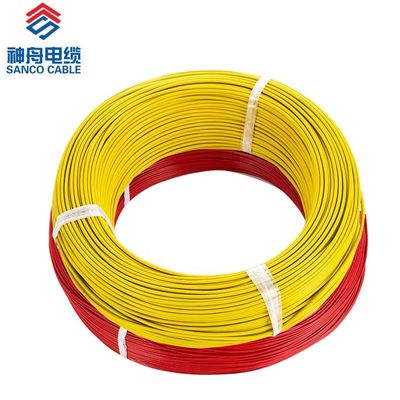

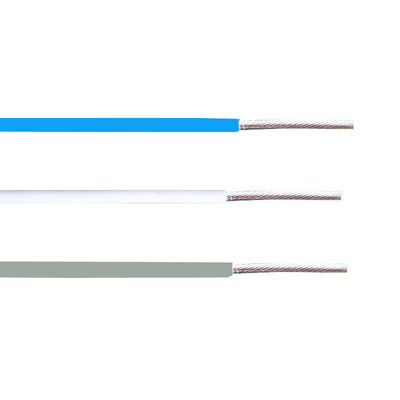

AF200 Silver Plated FEP Aircraft Wire

FEP Insulation Wires feature excellent corrosion resistance, oil resistance, and resistance to strong acids, alkalis, and oxidants. They offer superior electrical insulation performance with high voltage resistance, minimal high-frequency loss, moisture resistance, and excellent insulation properties. These wires also provide outstanding fire resistance, aging resistance, and long service life.

Applications include:

  • Electronic industry: Temperature compensation wire, low/high temperature wire, aging wire, flame retardant wire
  • Household appliances: Internal wiring for air conditioners, microwave ovens, electronic disinfecting cabinets, rice cookers, electric heaters, ovens, frying pans, and lighting fixtures
Product Features
  • Wear and scratch resistant
  • Easy to strip
  • High and low temperature resistant (-65°C to +200°C)
  • Anti-aging and corrosion resistant
  • Electromagnetic interference resistant
Cable Specifications
Conductor Materials Tinned Plated Copper, Silver Plated Copper, Bare Copper
Conductor Type Stranded or Solid
Number Core Single Core or Multiple Cores
Insulation FEP, PTFE, PFA Insulated
Rated Voltage 600V or Below
Rated Temperature -65°C to +200°C
Color White, Blue, Red, Black, Yellow, Green, Transparent, Yellow/Green
Types and Names
Type Name
AF-200 Silver Plated Copper Core FEP Insulation Install Wire
AF-200-1 Tin Plated Copper Core FEP Insulation Install Wire
AFP-200 Tin Plated or Silver Plated Copper Core FEP Insulation Shield Install Wire
AFS-200 Tin Plated or Silver Plated Copper Core FEP Insulation Stranded Install Wire
AFSP-200 Tin Plated or Silver Plated Copper Core FEP Insulation Stranded Shield Install Wire
Cable Structures
Wire gauge Cross-section area Conductor structure Max. OD of cable
Xiangtan Shenzhou Special Cable Co., LTD

With 21 years of experience, we are a stable wire and cable supplier for China's aerospace and military sectors. Our self-produced cable compounds ensure superior quality and competitive pricing. Main products include:

  • High Temperature wires
  • PTFE cable
  • FEP Cable
  • PFA Wire
  • ETFE Cable
  • Fluoroplastic Cables
  • Hook up wire
  • Electronic cable
  • Power cable

We have advanced production facilities, integrated management systems, and collaborate with universities and research institutes to provide customized cable solutions.

Corrosion Resistant Oil Resistant Strong Acid Resistant Silver Plated FEP Aircraft Wire for High Temperature Applications 0
Our Honors
  • Participated in China's manned space flight project development for Shenzhou 7
  • Contributed to China's first manned space flight mission
  • Recognized by China Academy of Launch Vehicle Technology for the "Arrow of God" project
Our Service
  • Free technical consultation before, during, and after sales
  • Free samples and design services
  • Special monitoring during manufacturing process
  • 100% free insurance for internal transportation
  • OEM & ODM services
  • Small order fulfillment
FAQ
Q: Are you a manufacturer or trading company?

A: We are a professional manufacturer of military and consumer cable wire and cable compound, located in Hunan Province, China.

Q: What is your company's strengths?

A: As a 21-year supplier to China's aerospace and military sectors, we produce our own cable compounds to maintain superior quality and competitive pricing.

Q: How do you guarantee product quality?

A: We implement strict quality control from design and material procurement through manufacturing and final inspection.

Q: What's the warranty of your products?

A: We provide a 1-year complete warranty with unconditional replacement or return for quality issues.

Q: How can I get samples?

A: We provide sample orders, with free samples available for small quantities in stock (customer pays freight).

Corrosion Resistant Oil Resistant Strong Acid Resistant Silver Plated FEP Aircraft Wire for High Temperature Applications 1
