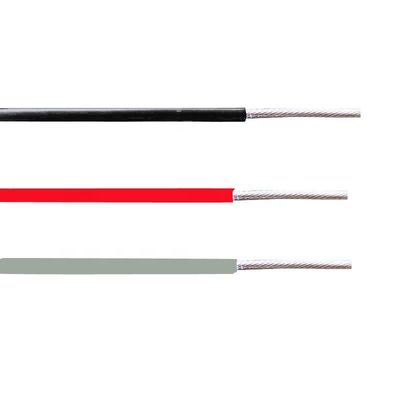

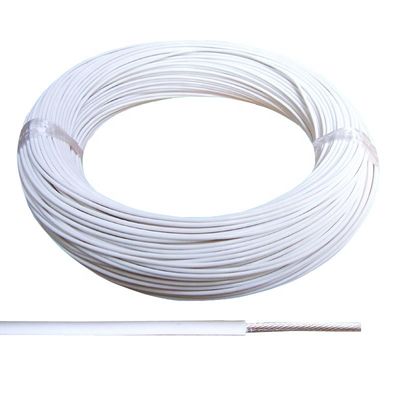

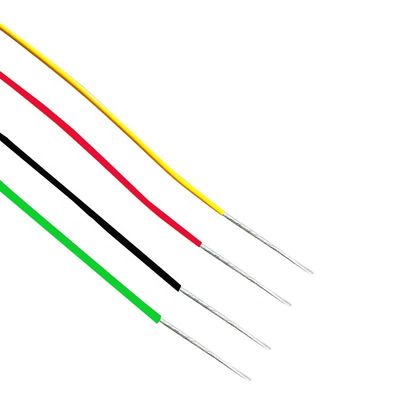

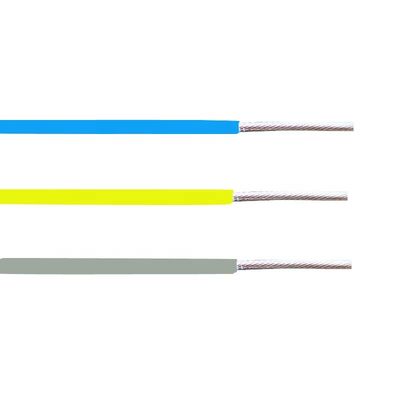

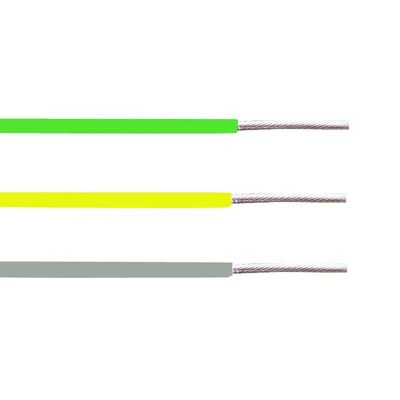

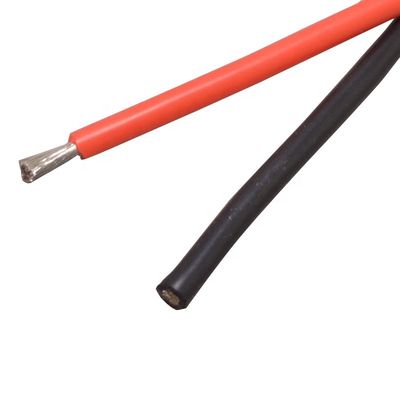

Tinned Stranded Copper Wires 18 AWG FEP Hook Up Wire
Applications
FEP Hook Up Wire offers excellent corrosion resistance, oil resistance, and resistance to strong acids, alkalis, and oxidants. Features outstanding electrical insulation performance, high voltage resistance, low frequency loss, moisture resistance, and insulation stability. Provides exceptional fire resistance, aging resistance, and long service life.
Industrial Applications: Temperature compensation wire, low temperature wire, high temperature heating wire, aging wire, and flame retardant wire.
Household Applications: Internal wiring for air conditioners, microwave ovens, electronic disinfecting cabinets, rice cookers, electric water bottles, heaters, ovens, frying pans, and lighting fixtures.
Also suitable for temperature sensors, lighting (cold light sources), small motors, electromagnetic coils, automotive interior cables, and electronic appliances.
Product Features
- Wear and scratch resistant
- Easy to strip
- High and low temperature resistant
- Anti-aging
- Corrosion resistant
- Anti-interference
Cable Structure
| Component |
Specification |
| Insulation |
FEP, PFA, PTFE, ETFE Insulated |
| Number Core |
Single Core or Multicore |
| Wire Gauge |
10 AWG to 20 AWG |
| Conductor Type |
Stranded or Solid |
| Conductor Materials |
Tinned Copper, Silver Copper or Bare Copper |
| Shielding |
Tinned copper wire weave shielded |
| Temperature Range |
-65°C to +200°C |
| Rated Voltage |
600V or Below |
| Color |
Black, brown, red, orange, yellow, green, blue, grey, white, violet |
Product Types
| Type |
Name |
| AF-200 |
Silver Plated Copper Core FEP Insulation Install Wire |
| AF-200-1 |
Tin Plated Copper Core FEP Insulation Install Wire |
| AFP-200 |
Tin Plated or Silver Plated Copper Core FEP Insulation Shield Install Wire |
| AFS-200 |
Tin Plated or Silver Plated Copper Core FEP Insulation Stranded Install Wire |
| AFSP-200 |
Tin Plated or Silver Plated Copper Core FEP Insulation Stranded Shield Install Wire |
Cable Structures and Specifications
| Wire Gauge |
Cross-section Area |
Conductor Structure |
Max. OD of Cable (250V) |
Max. OD of Cable (600V) |
| 36AWG |
0.013mm² |
7/0.05 |
0.65 |
0.85 |
| 32AWG |
0.035mm² |
7/0.08 |
0.75 |
0.95 |
| 30AWG |
0.05mm² |
7/0.10 |
0.85 |
1.05 |
| 28AWG |
0.07mm² |
7/0.12 |
0.9 |
1.1 |
| - |
0.1mm² |
7/0.14 |
1 |
1.2 |
| 26AWG |
0.14mm² |
7/0.16 |
1.1 |
1.3 |
| 24AWG |
0.2mm² |
19/0.12 |
1.2 |
1.4 |
| - |
0.3mm² |
7/0.23 |
1.25 |
1.48 |
| 22AWG |
0.35/0.40mm² |
19/0.16 |
1.4 |
1.6 |
| 20AWG |
0.5mm² |
19/0.18 |
1.6 |
1.8 |
| - |
0.6mm² |
19/0.20 |
1.75 |
1.98 |
| - |
0.75/0.80mm² |
19/0.23 |
1.8 |
2.1 |
| 18AWG |
1mm² |
19/0.26 |
2 |
2.2 |
| 16AWG |
1.2mm² |
19/0.28 |
2.2 |
2.4 |
| - |
1.5mm² |
19/0.32 |
2.4 |
2.6 |
| 14AWG |
2mm² |
19/0.37 |
2.7 |
2.9 |
| - |
2.5mm² |
37/0.30 |
3.4 |
3.6 |
| 12AWG |
3mm² |
37/0.32 |
3.6 |
3.8 |
| - |
4mm² |
37/0.37 |
4 |
4.2 |
| 10AWG |
5mm² |
37/0.41 |
4.5 |
4.7 |
| - |
6mm² |
37/0.45 |
4.8 |
5 |
| 8AWG |
8mm² |
133/0.28 |
6 |
6.5 |
Note: FEP high temperature lead wire specifications and core numbers are not limited to above regulations and can be customized.
