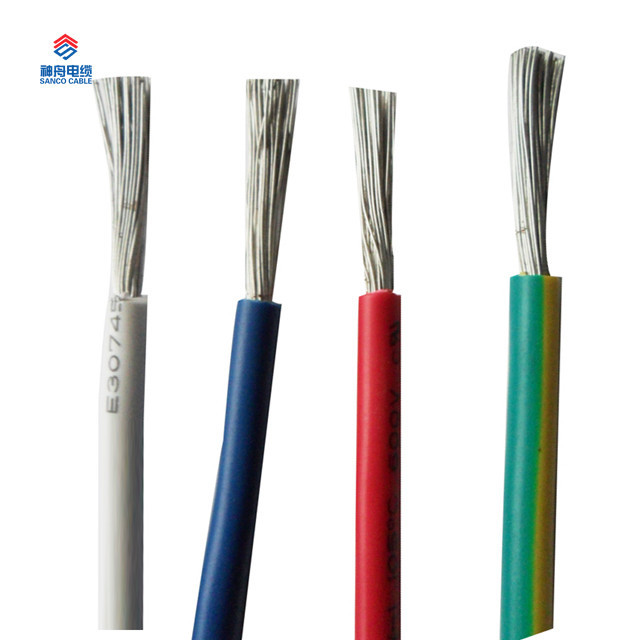

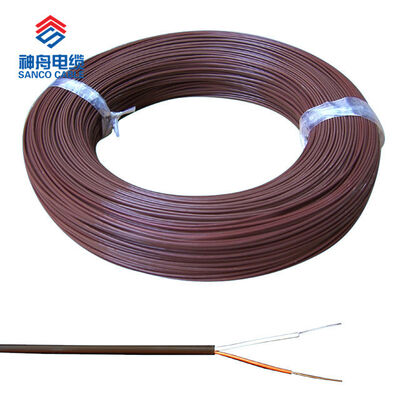

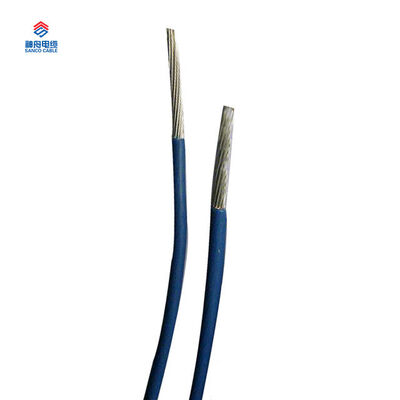

Heat Resistant Electric Cable 200 Degree High Temperature Wire
1.F4DGP Type PTFE Film Insulation Polyester Fiber Braided Silicone Cable |
2. Application: It is used in the singal control connection of power transmission and instrument |
3.Feature: Light weight, fine flexibility, high and low temperature resistance, anti-high temperature, anti-interference |
4. Working temperature: -60°C~+180°C |
5. Rated voltage: AC 250V or lower |
6. Executive standard: Q(L)/XL330-2009 |
![]()
Specification Core No.* Cross Section Area(mm²) | Conductor Structure No. of pieces/diameter(mm) | Max.Outer Diameter of Wire(mm) | Reference Weight(kg/km) | Max. DC Resistant at 20°C(Ω/km) | |
1*0.5 | 63/0.10 | 2.6 | 14.2 | 42 | |
2*0.5 | 4.8 | 29.4 | |||
4*0.5 | 5.7 | 44.5 | |||
2*4+2*05 | 49/0.32; 63/0.10 | 11.7 | 140.0 | 4.95; 39.0 | |
2*2+2*0.5 | 19/0.37; 63/0.10 | 7.0 | 85.6 | 10.0; 39.0 | |
2*1.0 | 32/0.2 | 6.6 | 63.6 | 20.5 | |
2*1.5 | 30/0.25 | 7.0 | 78.0 | 13.3 | |
10*0.35 | 19/0.16 | 9.0 | 133.0 | 50.9 | |
1*8.0 | 133/0.28 | 7.4 | 132.0 | 2.37 | |
1*16 | 133/0.39 | 10.0 | 198.0 | 1.24 | |
2*6 | 49/0.39 | 12.0 | 207.0 | 3.08 | |
![]()
In the past years,We participated in the Middle East Electricity Exhibition in Dubai,China-ASEAN Exposition,Power-Gen India....More than 20 years experience in cable production,hope that our profession and high quality service will bring you success and satisfied purchasing experience.
![]()
Awards and Merits
We are a stable wire and cable supplier of China's aerospace and military,Customer satisfition is our primay aim.More details pls refer to below form:
No. | Item | Faulty Products | Our products |
1. | Length | Insufficient length | Sufficient |
2. | Wire drawing | thick at both ends and thin in the middle | Same from beginning to end |
3. | Conductor | copper clad aluminum ,Copper clad brass | 99.999% pure copper |
4. | Insulation | Recycled compound | Virgin compound |
If you want to know how to identify,welcome click here | |||
Our Service
1.Free technical consultation service before, during, and after sales,help customers to choose right product
2.Free sample and design services
3.Fee service for any special monitor and conduct detection during manufacture process
4.Provide 100% free insurance for internal transportation;
5.OEM & ODM is welcome
6.Small order can be supplied
![]()
100m/coil with non-woven bag | 200m/Roll with film | 500m with wooden drum | 800m with wooden iron drum |
Packaging of wire
1• Plyethylene film winding in roll with non-woven bag or carton box for small diameter wires(100m/roll)
2• Packing in drum with plastic tray(300m/drum)
3• Wooden drums,fumigated wooden drums,Wooden iron drums for large diameter cable(500/drum)
![]()
1).Q:Are you a manufacturer or trading company?
A:We are a professional manufacturer,research,development and sales of military and consumer cable wire and cable compound.The company is located in Hunan Province,China
2).Q:What is your company's strengths?
A:We are a stable wire and cable supplier of China's aerospace and military,21 years experience,cable compounds produced by ourselves,This is how we keep superior quality and competitive offers for global valued customers.
3).Q:How do you guarantee your product quality?
A:Quality is our priority,we treat quality control as the first most important thing from the very beginning to the very end.In design,materials procurement,manufacturing semi-finished products testing,finished product inspection such as strick control to ensure product quality.
4).Q:What's the warranty of your products?
A:We provide 1 year complete warranty service,If the products have quality problems,We plant to replace or return unconditionally.
![]()
