Name: Multicore PVC Insulated Copper Stranded Flexible Cable
Brand: Xiangtan Shenzhou Special Cable Co., Ltd
SKU: RVV Series
Price: 9.00 USD
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

Conductor Material: Copper

Insulation Material: PVC

Rated Voltage: 300/300V, 300/500V, 300/300V, 300/500V

Application: Underground

Conductor Type: Stranded

Type: Insulated, RVV

Product Name: Stranded Copper Multi Cores PVC Insulation Electrical Cable

Core Numbers: 3 Cores, 4 Cores, 5 Cores, 6 Cores..

Size: 0.75mm2 1mm2 1.5mm2 2.5mm2 4mm2..

Color: Yellow Green, Yellow, Green, Red, Blue And Etc..

Insulation: PVC

Sheath: PVC

Samples Free: Yes

Packing: As Your Requirement

Highlight:

multicore PVC insulated cable

flexible copper stranded wire

TPE insulated electrical wire

Basic Infomation

Place of Origin: Hunan, China

Brand Name: Sanco Cable

Model Number: RVV Series

Payment & Shipping Terms

Gallery

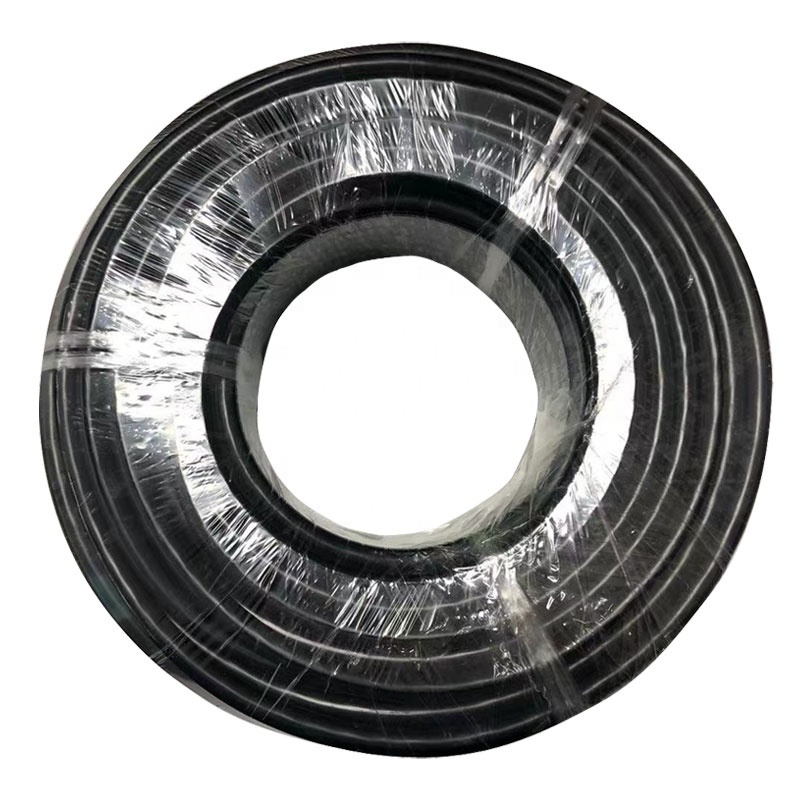

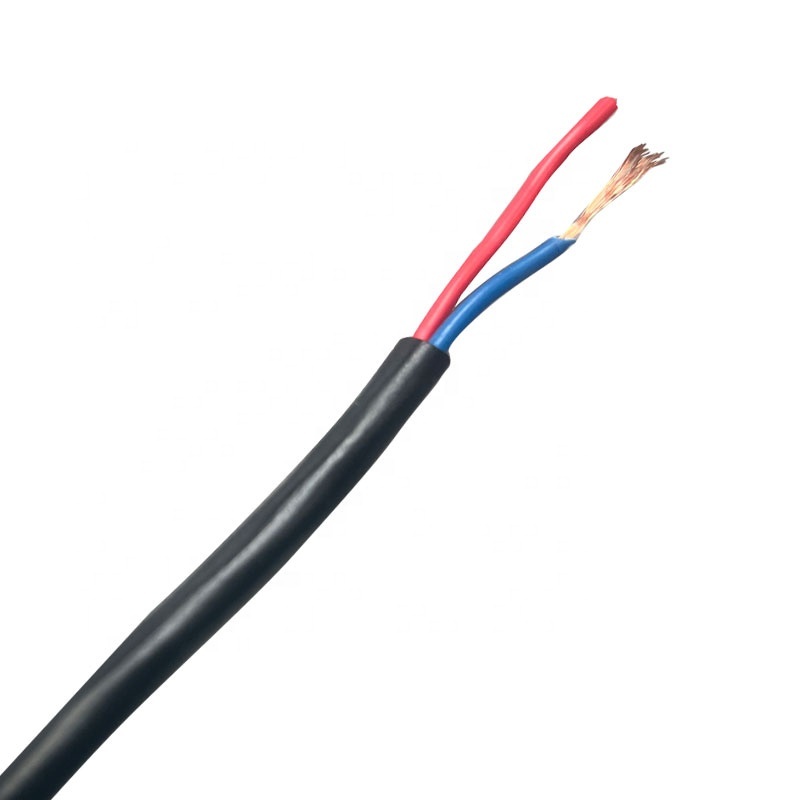

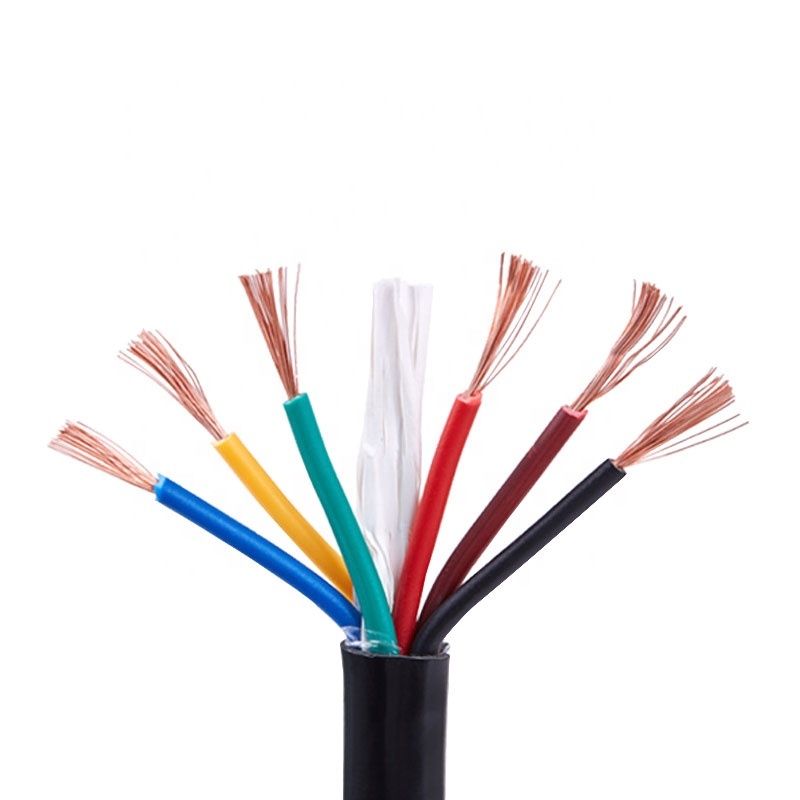

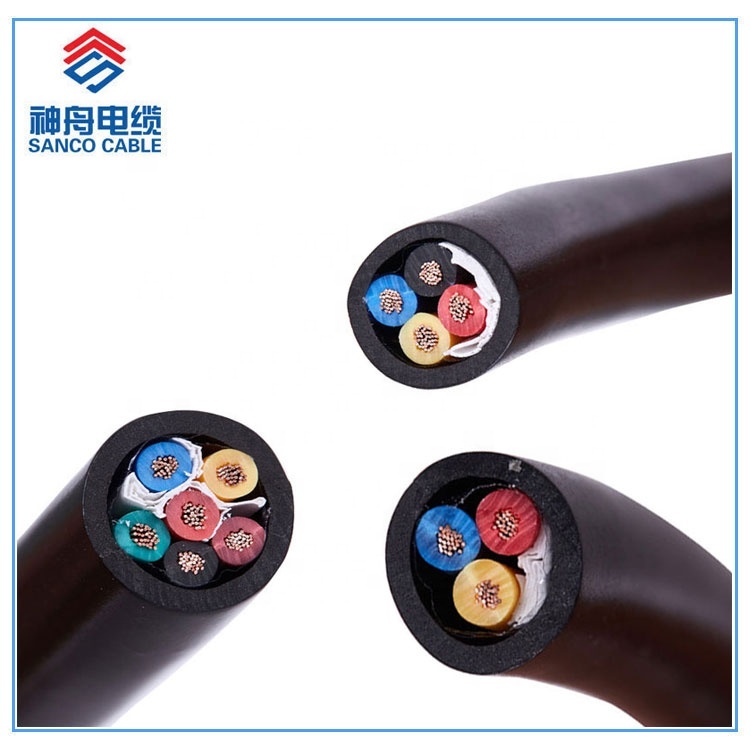

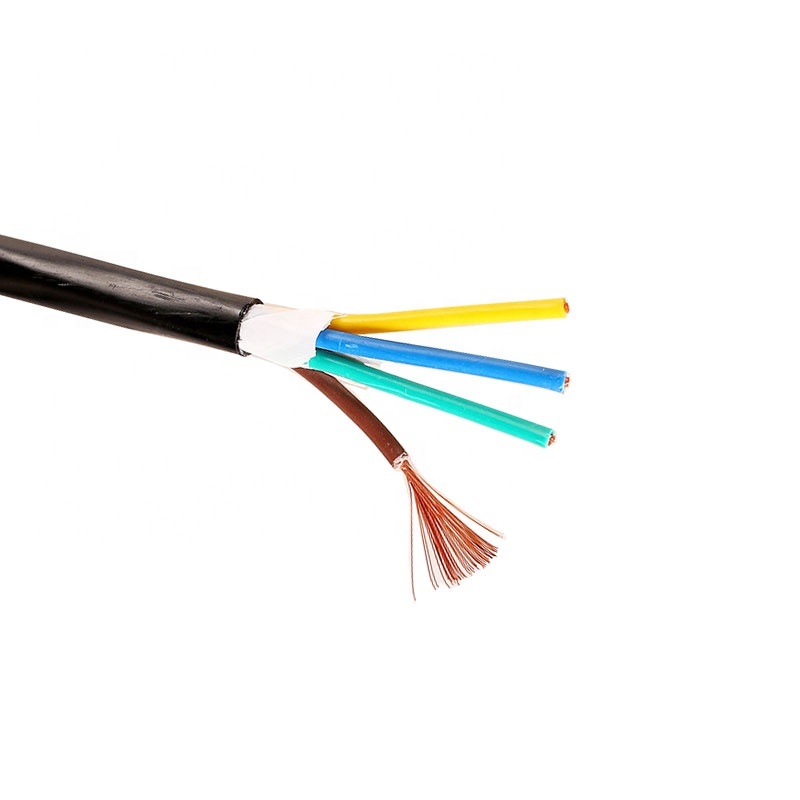

Multicore PVC Insulated Copper Stranded Flexible Cable

Product Description

Stranded Copper Multi Cores PVC Insulation Electrical Cable

Product Description

Specification:

• Sample free • 100% pure copper • 100% virgin cable compound

• Fast delivery time • Reasonable price • More than 20 years experience

Application and Standard:

(1)The flex PVC hook-up wire cable can be produced and provided according to standard IEC60227,BS6004,BS6005.

(2)The flex PVC hook-up wire cable belong to the series of laying wires,which are mainly suitable for laying at the fixed places.They are widesly used as connectors of driving,lighting,electric equipments,instrument and telecommunication equipments with rated voltage to 450/750V.Part of the plastic wires are used at the equipment with AC rated voltage upto 300/500V.

Working condition:

(1)The flex PVC hook-up wire cable working temperature is different according to different insulation materials, mainly 70 and 90 degrees temperature, etc.

(2)Enviroment temperature of laying should be not less than 0℃

(3)Rated voltage U0/U is 450/750V,300/300V,300/350V.

Category:

(1)According to the conductor type, including solid conductor PVC insulated electrical wire cable, standed PVC insulated wire cable, Flexible PVC insulated wire cable with different colors.

(2)According to its shape, including flat wire cable, round wire cable, etc. with different colors.

(3)Accoding to its core number, including single core wire cable, multi-core wires cables , etc. with different colors.

Process Flow:

Specifications:

Model	Conductor	Insulation	Sheath	Average Outer Diameter		Condutor Max.DC resistance at 20℃		Mini.insulated Resistance(70℃)
RVV	Cores x Nom.Area	Thickness	Thickness	Lower Limit	Upper Limit	Non Metal-coated	Metal-coated	Mini.insulated Resistance(70℃)
	mm2	mm	mm	Lower Limit	Upper Limit	Ω.km		MΩ.km
	2x0.75	0.6	0.8	5.7	7.2	26	26.7	0.011
	2x1	0.6	0.8	5.9	7.5	19.5	20	0.01
	2x1.5	0.7	0.8	6.8	8.6	13.3	13.7	0.01
	2x2.5	0.8	1	8.4	10.6	7.98	8.21	0.009
	3x0.75	0.6	0.8	6.0	7.6	26	26.7	0.011
	3x1	0.6	0.8	6.3	8.0	19.5	20	0.01
	3x1.5	0.7	0.9	7.4	9.4	13.3	13.7	0.01
	3x2.5	0.8	1.1	9.2	11.4	7.98	8.21	0.009
	4x0.75	0.6	0.8	6.6	8.3	26	26.7	0.011
	4x1	0.6	0.9	7.1	9.0	19.5	20	0.01
	4x1.5	0.7	1.0	8.4	10.5	13.3	13.7	0.01
	4x2.5	0.8	1.1	10.1	12.5	7.98	8.21	0.009
	5x0.75	0.6	0.9	7.4	9.3	26	26.7	0.011
	5x1	0.6	0.9	7.8	9.8	19.5	20	0.01
	5x1.5	0.7	1.1	9.3	11.6	13.3	13.7	0.01
	5x2.5	0.8	1.2	11.2	13.9	7.98	8.21	0.009

Name	3 Core Stranded Copper RVV Electrical Wire Cable
Core Numbers	3 Cores, 4 Cores, 5 Cores..
Size	0.75mm2, 1mm2, 1.5mm2, 2.5mm2, 4mm2
Conductor	Copper Conductor
Insulation	PVC Insulated
Rated Voltage	300/300V, 300/500V
Color	Black, White, Blue, Yellow, Red, Green..

Company Informations

Xiangtan Shenzhou Special Cable Co., LTD is a stable wire and cable supplier of China's aerospace and military, 21 years experience. Cable compounds produced by ourselves, that is why we can keep superior quality and competitive offers for global valued customers. Our Main products are: High Temperature wires, PTFE cable, FEP Cable, PFA Wire, ETFE Cable, Fluoroplastic Cables, Hook up wire, electronic cable, Power cable and so on. Also we have advanced production facility and integrated management system, we also have good cooperation with many universities and research institutes in addition we can customize the cable according to customer's demand. So best quality and cheapest price we can provide you.

EXHIBITION & VISIT

In the past years,We participated in the Middle East Electricity Exhibition in Dubai,China-ASEAN Exposition,Power-Gen India...

As a professiable wire and cable manufacturer, Xiangtan Shenzhou Special Cable CO.,LTD has exported the products to US, Venezuela, India, Vietnam, Bengal, Africal and some other countries. We warmly weclome the delegation from Ezeagu Goverment of Nigeria visit our factory in 2017, they are long-time partner of our company.

To meet customer's demand,we have: 1.Advanced R&D staff, 2.Professional transport team, 3.High-quality engineering installtion team, 4.Professional talented technicians group, 5.International sales department:6 person, 6.Domestic sales:15 person, 7.QC team.
