high temperature High Temp ETFE Insulated Electrical Wire Manufacturer
About ETFE Insulated Electrical Wire
1. Excellent mechanical strength and toughness
2. Good resistance to heat and chemicals
3. High specific dielectric strength
4. Oil, flame, and radiation resistance
Application:
1. In the electronic industry, it can be used for temperature compensation wire, low temperature resistance wire, high temperature heating wire, aging resistance wire and flame retardant wire.
2. In household appliance industry, it can be used for internal wiring of air conditioner, microwave oven, electronic disinfection cabinet, computer rice cooker, electronic hot water bottle, electric heater, electric oven, electric frying pan, lamps and lanterns, etc.
Properties

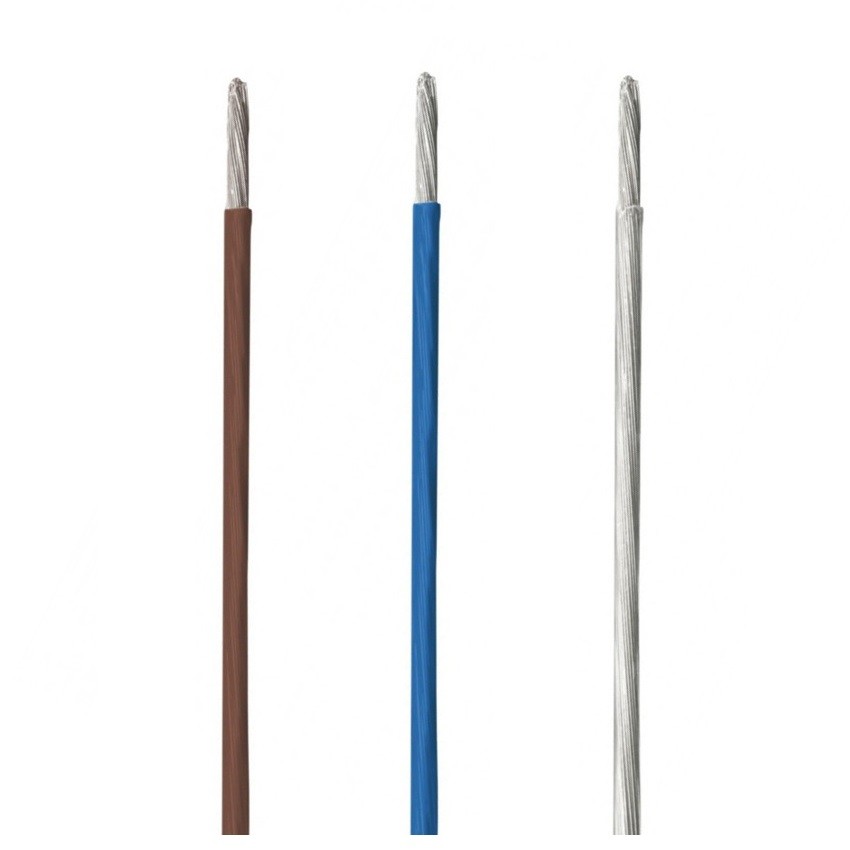

1. Insulation: ETFE insulation
2. Conductor: Tinned copper wire(Solid or Stranded)
3. Operating temperature :-65℃~+150℃
4. Rated voltage :AC600V or below
5. Insulation resistance(20 ℃) : not less than 100 m Ω. Km
6. Voltage test (AC) : insulation wire 2200V/1min, shielding wire 1500V/30S no breakdown
7. Color: red, yellow, blue, white, black, transparent, brown, green, yellow and green
| Wire gauge | Section area (mm2) |
Conductor construction piece/diameter (mm) |
Insulation thickness (mm) |
Reference OD (mm) |
Max. Conductor resistance at 20℃ (Ω/Km) |
| 28awg | 0.08mm2 | 7/0.12 | 0.15 | 0.66 | 239 |
| 26awg | 0.14mm2 | 7/0.16 | 0.15 | 0.78 | 239 |
| 24awg | 0.2mm2 | 7/0.2 | 0.15 | 0.9 | 150 |
| 22awg | 0.4/0.3mm2 | 19/0.16 | 0.15 | 1.1 | 94.2 |
| 20awg | 0.6/0.5mm2 | 19/0.2 | 0.15 | 1.3 | 32.4 |
| 18awg | 1mm2 | 19/0.26 | 0.2 | 1.7 | 20.4 |
| 16awg | 1.2mm2 | 19/0.28 | 0.2 | 1.8 | 16.6 |
| 14awg | 2mm2 | 19/0.36 | 0.33 | 2.46 | 10 |
| 12awg | 3mm2 | 37/0.32 | 0.33 | 2.9 | 6.63 |
| 10awg | 5mm2 | 37/0.4 | 0.33 | 3.46 | 4.13 |
