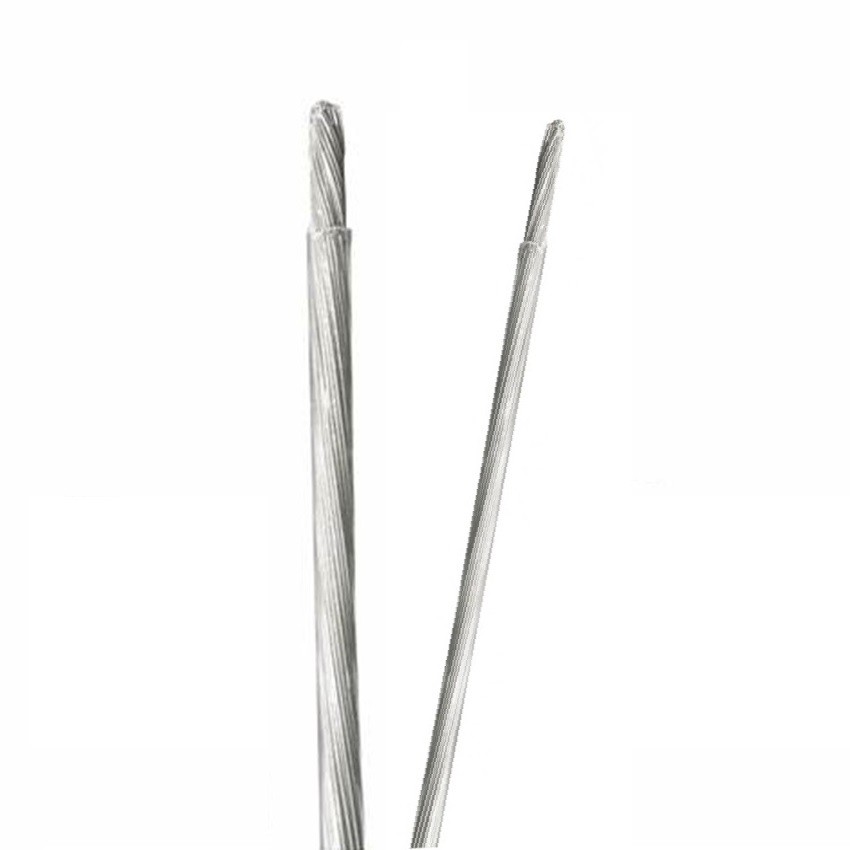

Transparent Etfe Insulated Copper Wire,18 Gague high temperature Coated Wire
About ETFE high temperature Wire
1. With excellent flame retardant, aging resistance, long service life
2. Excellent electrical insulation performance, high voltage resistance, low high-frequency loss, no moisture absorption, high insulation resistance.
3. Excellent corrosion resistance, almost insoluble in any organic solvent, oil resistance, strong acid, strong alkali, strong oxidant.
Application
The etfe high temperature wire can be used for all kinds of aircraft, spacecraft, armored vehicles, ships or internal wiring of appliance or electronic equipment.
Properties
1. Insulation: ETFE insulated
2. Conductor: Tined copper wire(Solid or Stranded)
3. Operating temperature :-65~+150 degree
4. Rated voltage :AC 600V or below
5. Insulation resistance(20 ℃) : not less than 100 m Ω. Km
6. Voltage test (AC) : insulation wire 2200V/1min, shielding wire 1500V/30S no breakdown
7. Color: red, yellow, blue, white, black, transparent, brown, green, yellow and green
| Wire gauge | Section area (mm2) |
Conductor construction piece/diameter (mm) |
Insulation thickness (mm) |
Reference OD (mm) |
Max. Conductor resistance at 20℃ (Ω/Km) |
| 28awg | 0.08mm2 | 7/0.12 | 0.15 | 0.66 | 239 |
| 26awg | 0.14mm2 | 7/0.16 | 0.15 | 0.78 | 239 |
| 24awg | 0.2mm2 | 7/0.2 | 0.15 | 0.9 | 150 |
| 22awg | 0.4/0.3mm2 | 19/0.16 | 0.15 | 1.1 | 94.2 |
| 20awg | 0.6/0.5mm2 | 19/0.2 | 0.15 | 1.3 | 32.4 |
| 18awg | 1mm2 | 19/0.26 | 0.2 | 1.7 | 20.4 |
| 16awg | 1.2mm2 | 19/0.28 | 0.2 | 1.8 | 16.6 |
| 14awg | 2mm2 | 19/0.36 | 0.33 | 2.46 | 10 |
| 12awg | 3mm2 | 37/0.32 | 0.33 | 2.9 | 6.63 |
| 10awg | 5mm2 | 37/0.4 | 0.33 | 3.46 | 4.13 |
