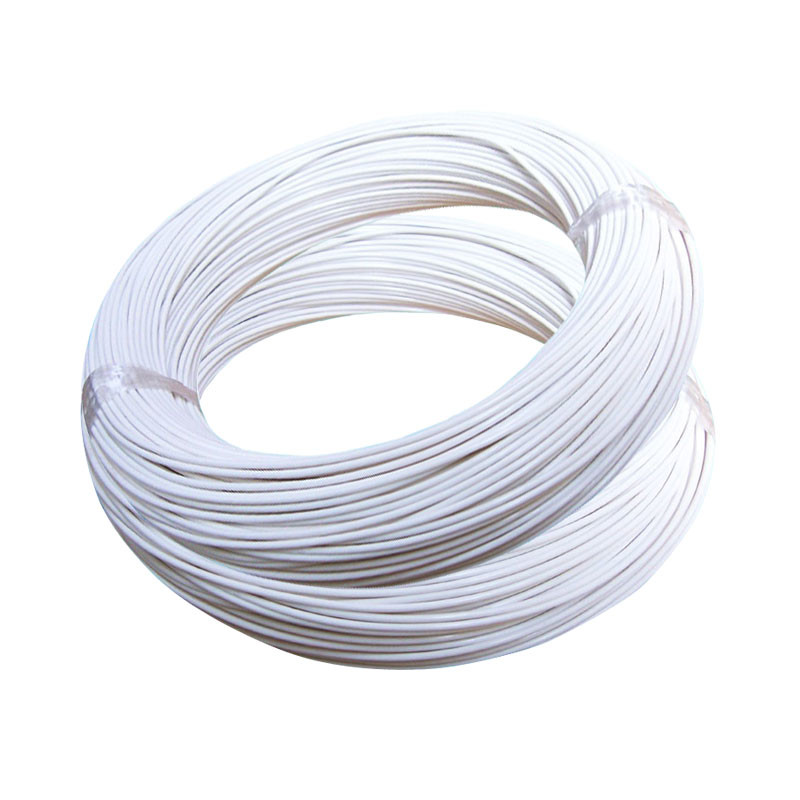

White High Temperature high temperature Tinned Copper ETFE Stranded Wire
Application:
In household appliance industry, it can be used for internal wiring.
In the electronic industry, it can be used for temperature compensation wire, low temperature resistance wire, high temperature heating wire, aging resistance wire and flame retardant wire.
ETFE Wire Features:
1. Excellent electric characteristics,mechanical strength heat resistance, chemical resistance, and flame resistance, low temperature characteristics.
2. High specific dielectric strength
3. Small diameter saves space
4. Excellent corrosion resistance, almost insoluble in any organic solvent, oil resistance, strong acid, strong alkali, strong oxidant.
Properties:
Insulation: Etfe Insulated
Conductor Type: Stranded or Solid
Core Number: Single Core
Conductor Material: Tinned Plated Copper or Bare Copper
Operating Temperature: -65 Degree ~ +150 Degree
Voltage Rating: AC 600V
Conductor:Tinned Plated Copper
Insulation Resistance(at 20℃): ≥100MΩ.km
Color: Red, Purple, Green, Brown, Grey, Blue, Orange, White, Yellow, Black and etc..
| Cross-section area (mm²) |
Conductor (mm) |
Reference outerdiameter (mm) |
Reference weight kg/km |
Max.DC resistance at 20℃ (Ω/Km) |
| FF40-1 | FF40-1 | |||
| 0.14 | 19/0.1 | 1.02 | 2.66 | 136.0 |
| 0.2 | 19/0.12 | 1.14 | 3.82 | 90.4 |
| 0.4/0.3 | 19/0.16 | 1.32 | 5.48 | 53.1 |
| 0.6/0.5 | 19/0.2 | 1.52 | 7.98 | 32.4 |
| 0.75 | 19/0.23 | 1.70 | 9.99 | 24.6 |
| 1.0 | 19/0.26 | 1.80 | 11.70 | 20.4 |
| 1.2 | 19/0.28 | 2.01 | 14.80 | 16.6 |
| 1.5 | 19/0.32 | 2.25 | 18.20 | 12.7 |
| 2.0 | 19/0.36 | 2.36 | 22.20 | 10.0 |
| 2.5 | 37/0.3 | 2.78 | 30.40 | 7.43 |
| 3.0 | 37/0.32 | 2.90 | 33.60 | 6.63 |
| 4.0 | 37/0.37 | 3.38 | 45.40 | 4.88 |
| 5.0 | 37/0.4 | 3.53 | 52.20 | 4.13 |
| 6.0 | 37/0.45 | 4.05 | 65.60 | 3.30 |
