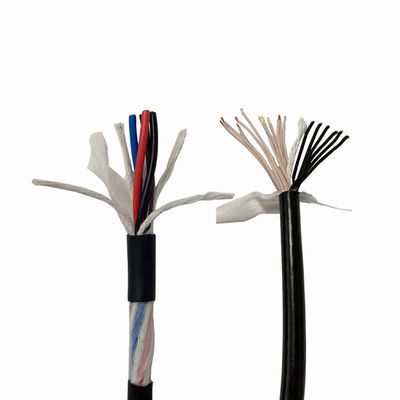

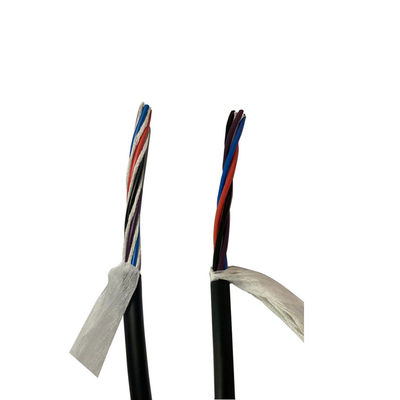

Custom Super flexible 4 Core TRVV PVC Sheath Drag Chain Cable
Application
The cable is specially designed for the need of high bend bending and continuous motion,It's widely use for industrial electronic systems, storage, equipment, robot CNC machine tools, mechanical automation and drive systems, for high flexible towchain system power supply, high-speed signal transmission.
It is bending resistance, torsion resistance, bending resistance, shallow water resistance, oil resistance, uv resistance, weather resistance, cold resistance, wear resistance, can bear heavy mechanical external forces, with strong flexural resistance.
Structure:
1. Conductor: multi-strand oxygen free copper wire with high bending strength
2. Insulation: special PVC compound
3. Core structure: Wire core stranding with small pitch, wrapped in non-woven fabric
4. Shielding:Tinned copper wire
5. Jacket: special PVC compound
Properties
1. Working voltage:300/500V
2. Insulation resistance:20MOhm x KM
3. Bending radius: Mobile installation 7.5 x cable diameter
4. Fixed installation 4 x cable diameter
5. Temperature range: Mobile installation 0℃ to +70℃
6. Fixed installation -40℃ to +80℃
|
Model |
Specification mm2 |
Outer Diameter mm |
Wire core mm |
Conductor structure mm |
| TRVV | 2*0.2 | 4.4 | 1.4 | 40/0.08 |
| TRVV | 2*0.3 | 4.6 | 1.6 | 60/0..08 |
| TRVV | 2*0.5 | 5.6 | 1.9 | 100/0.08 |
| TRVV | 2*0.75 | 6.4 | 2.2 | 150/0.08 |
| TRVV | 2*1 | 7.2 | 2.5 | 200/0.08 |
| TRVV | 2*1.5 | 8 | 2.9 | 300/0.08 |
| TRVV | 2*2.5 | 10 | 3.6 | 500/0.08 |
| TRVV | 3*0.2 | 4.8 | 1.4 | 40/0.08 |
| TRVV | 3*0.3 | 5.2 | 1.6 | 60/0..08 |
| TRVV | 3*0.5 | 6 | 1.9 | 100/0.08 |
| TRVV | 3*0.75 | 7.2 | 2.2 | 150/0.08 |
| TRVV | 3*1 | 7.8 | 2.5 | 200/0.08 |
| TRVV | 3*1.5 | 9 | 2.9 | 300/0.08 |
| TRVV | 3*2.5 | 10.6 | 3.6 | 500/0.08 |
| TRVV | 4*0.2 | 5 | 1.4 | 40/0.08 |
| TRVV | 4*0.3 | 5.4 | 1.6 | 60/0..08 |
| TRVV | 4*0.5 | 6.6 | 1.9 | 100/0.08 |
| TRVV | 4*0.75 | 7.8 | 2.2 | 150/0.08 |
| TRVV | 4*1 | 8.6 | 2.5 | 200/0.08 |
| TRVV | 4*1.5 | 9.8 | 2.9 | 300/0.08 |
| TRVV | 4*2.5 | 11.3 | 3.6 | 500/0.08 |
| TRVV | 5*0.2 | 5.4 | 1.4 | 40/0.08 |
| TRVV | 5*0.3 | 6.2 | 1.6 | 60/0..08 |
| TRVV | 5*0.5 | 7.2 | 1.9 | 100/0.08 |
| TRVV | 5*0.75 | 8.5 | 2.2 | 150/0.08 |
| TRVV | 5*1.0 | 9.8 | 2.5 | 200/0.08 |
| TRVV | 5*1.5 | 10.6 | 2.9 | 300/0.08 |
| TRVV | 5*2.5 | 13.2 | 3.6 | 500/0.08 |
