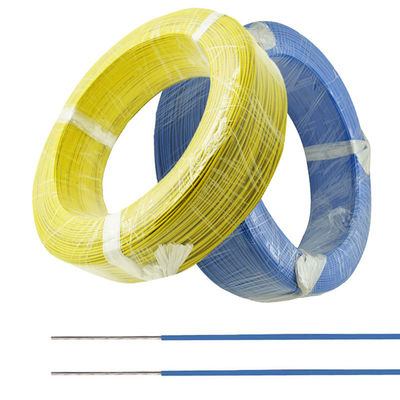

Single Core High Temperature high temperature ETFE Insulated Custom Wire
Application:
ETFE insulated wires widely applied in aviation, metallurgy and pertroleum industry as well as applied in other products such as: electronic instrument & device, electrical applicance, leads for transformer & electrical motor.
Features:
1. Small diameter saves space
2. Excellent low temperature characteristics
3. Excellent electric characteristics,mechanical strength heat resistance, chemical resistance, and flame resistance.
4. ETFE insulated wire offers a higher tensile and impact strength than PTFE as well as greater dielectric strength and radiation resistance.
5. Oil, flame, and radiation resistance
Properties:
Insulated: Etfe high temperature Insulated
Conductor: Tinned or Silver Plated Stranded Copper
Operating Temperature: -65℃ ~ +150/200℃
Voltage Rating: 600V or Below
Insulation Resistance(at 20℃): ≥100MΩ.km
Available Colors: Red, Green, Brown, Gray, Blue, White, Yellow, Black Violet and etc..
| Cross-section area (mm²) |
Conductor (mm) |
Reference Outer Diameter (mm) |
Reference weight kg/km |
Max.DC resistance at 20℃ (Ω/Km) |
| FF40-1 | FF40-1 | |||
| 0.14 | 19/0.1 | 1.02 | 2.66 | 136.0 |
| 0.2 | 19/0.12 | 1.14 | 3.82 | 90.4 |
| 0.4/0.3 | 19/0.16 | 1.32 | 5.48 | 53.1 |
| 0.6/0.5 | 19/0.2 | 1.52 | 7.98 | 32.4 |
| 0.75 | 19/0.23 | 1.70 | 9.99 | 24.6 |
| 1.0 | 19/0.26 | 1.80 | 11.70 | 20.4 |
| 1.2 | 19/0.28 | 2.01 | 14.80 | 16.6 |
| 1.5 | 19/0.32 | 2.25 | 18.20 | 12.7 |
| 2.0 | 19/0.36 | 2.36 | 22.20 | 10.0 |
| 2.5 | 37/0.3 | 2.78 | 30.40 | 7.43 |
| 3.0 | 37/0.32 | 2.90 | 33.60 | 6.63 |
| 4.0 | 37/0.37 | 3.38 | 45.40 | 4.88 |
| 5.0 | 37/0.4 | 3.53 | 52.20 | 4.13 |
| 6.0 | 37/0.45 | 4.05 | 65.60 | 3.30 |
