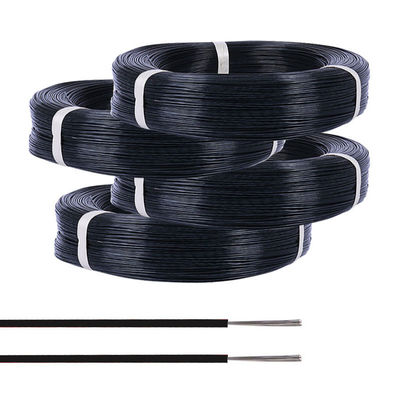

24AWG High Temperature Resistant ETFE Insulated Hook-up Wire
About ETFE wire
It has the characteristics of temperature resistance, cold resistance, wear resistance, radiation resistance, flame retardant, anti-interference etc.
1. suitable for wiring in electronic equipment which has a tendency to build up and retain heat, and in environments where they will be exposed to oil or chemicals, such as in chemical plants or for application in industrial robots.
2. For aerospace, weapons, ships and electronic industry and other instrument wire connection.
3. Lead wires of small coils and relays, etc.
4. Wiring for movable components subject to bending or flexure
Insulated: ETFE high temperature Insulated
Core Number: Single Core or Multicores
Conductor: Tinned / Silver Plated Stranded Copper
Operating Temperature: -65℃ ~ +150 / 200℃
Voltage Rating: 600V or Below
Insulation Resistance(at 20℃): ≥100MΩ.km
Available 10 Colors: Red, White, Green, Brown, Grey, Blue, Yellow, Black, Purple and etc..
|Reference Outer Diameter
|Max.DC resistance at 20℃
