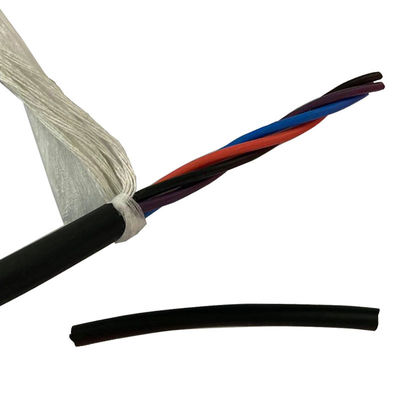

Multicores PVC Insulated Bending Resistance TRVV Drage Chain Cable
Application:
TRVV is mainly used in industrial electronic systems, automatic generation lines, automation equipment, storage equipment, robots, robot arms, fire control systems, CNC machine tools, engraving machines, laser machines, crane chain systems and metallurgical industry equipment and occasions.
Features:
1. Oil resistance
2. Resistance to bending
3. High flexible
4. Wear-resisting
5. Flame retardant
Electrical properties:
Working voltage: 300/500V
Insulation resistance: 20MOhm x KM
Minimum bending radius: Mobile installation: 7.5 x cable diameter (< 4.0mm2); Fixed installation: 4 x cable diameter
Temperature range: Mobile installation 0℃ to +70℃; Fixed installation -40℃ to +80℃
|
Model |
Specification mm2 |
Outer Diameter mm |
Wire core mm |
Conductor structure mm |
| TRVV | 2*0.2 | 4.4 | 1.4 | 40/0.08 |
| TRVV | 2*0.3 | 4.6 | 1.6 | 60/0..08 |
| TRVV | 2*0.5 | 5.6 | 1.9 | 100/0.08 |
| TRVV | 2*0.75 | 6.4 | 2.2 | 150/0.08 |
| TRVV | 2*1 | 7.2 | 2.5 | 200/0.08 |
| TRVV | 2*1.5 | 8 | 2.9 | 300/0.08 |
| TRVV | 2*2.5 | 10 | 3.6 | 500/0.08 |
| TRVV | 3*0.2 | 4.8 | 1.4 | 40/0.08 |
| TRVV | 3*0.3 | 5.2 | 1.6 | 60/0..08 |
| TRVV | 3*0.5 | 6 | 1.9 | 100/0.08 |
| TRVV | 3*0.75 | 7.2 | 2.2 | 150/0.08 |
| TRVV | 3*1 | 7.8 | 2.5 | 200/0.08 |
| TRVV | 3*1.5 | 9 | 2.9 | 300/0.08 |
| TRVV | 3*2.5 | 10.6 | 3.6 | 500/0.08 |
| TRVV | 4*0.2 | 5 | 1.4 | 40/0.08 |
| TRVV | 4*0.3 | 5.4 | 1.6 | 60/0..08 |
| TRVV | 4*0.5 | 6.6 | 1.9 | 100/0.08 |
| TRVV | 4*0.75 | 7.8 | 2.2 | 150/0.08 |
| TRVV | 4*1 | 8.6 | 2.5 | 200/0.08 |
| TRVV | 4*1.5 | 9.8 | 2.9 | 300/0.08 |
| TRVV | 4*2.5 | 11.3 | 3.6 | 500/0.08 |
| TRVV | 5*0.2 | 5.4 | 1.4 | 40/0.08 |
| TRVV | 5*0.3 | 6.2 | 1.6 | 60/0..08 |
| TRVV | 5*0.5 | 7.2 | 1.9 | 100/0.08 |
| TRVV | 5*0.75 | 8.5 | 2.2 | 150/0.08 |
| TRVV | 5*1.0 | 9.8 | 2.5 | 200/0.08 |
| TRVV | 5*1.5 | 10.6 | 2.9 | 300/0.08 |
| TRVV | 5*2.5 | 13.2 | 3.6 | 500/0.08 |
