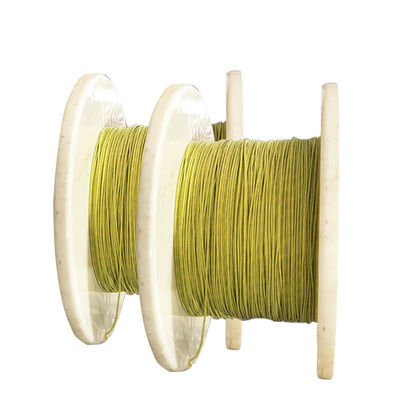

ETFE Insulation Tinned Silver Stranded Copper Internal Wire Heat Resistant

100m
MOQ
USD0.1~3/M
Price
ETFE Insulation Tinned Silver Stranded Copper Internal Wire Heat Resistant
Features Gallery Product Description Request A Quote
Features
Specifications
Features: Heat Resistance
Insulated Materials: ETFE Insulated
Working Temperature: -65℃~150℃
Colors: Red, White, Yellow, Gray, Transparent, Violet, Green, Blue, Black
Core Number: Single Core Or Multi Cores
Wire Gauge: 10~28AWG
Conductor Material: Tinned Plated Or Silver Plated Copper
Rated Voltage: AC 300V And Below
Sample: Free Supplied If Available In Stock
Customized Product: Yes
High Light:

ETFE Insulation Stranded Copper Internal Wire

,

Tinned Stranded Copper Internal Wire

,

Heat Resistant 28AWG ETFE Insulated Wire

Basic Infomation
Place of Origin: China
Brand Name: SANCO
Certification: ISO9001
Model Number: FF40-1
Payment & Shipping Terms
Packaging Details: Cable tray or Packing in roll with carton box
Delivery Time: 3~8days
Supply Ability: 250000M/Per Month
Product Description

Heat Resistant ETFE Insulation Tinned/ Silver Stranded Copper Internal Wire



Usage:

Suitable for wiring in electronic equipment which has a tendency to build up and retain heat, and in environments where they will be exposed to oil or chemicals, such as in chemical plants or for application in industrial robots.



Feather:

Excellent electrical and mechanical characteristic, and thermal and chemical resistance





Properties of ETFE Wire

Operating Temperature: -65 to +150℃

Voltage Rating: AC 300V and below

Insulated Material: ETFE Insulated

Conductor Type: Stranded

Conductor Material: Tinned Plated or Silver Plated Copper

Available Colors: Red, White, Yellow, Purple, Transparent, Violet, Green, Gray, Blue, Orange, Black...

Insulation Resistance(20℃): ≥100MΩ.km



ETFE Insulation Tinned Silver Stranded Copper Internal Wire Heat Resistant 0



Cross-section area
(mm²)
Conductor
(mm)
Reference outerdiameter
(mm)
Reference weight
kg/km
Max.DC resistance at 20
(Ω/Km)
FF40-1 FF40-1
0.14 19/0.1 1.02 2.66 136.0
0.2 19/0.12 1.14 3.82 90.4
0.4/0.3 19/0.16 1.32 5.48 53.1
0.6/0.5 19/0.2 1.52 7.98 32.4
0.75 19/0.23 1.70 9.99 24.6
1.0 19/0.26 1.80 11.70 20.4
1.2 19/0.28 2.01 14.80 16.6
1.5 19/0.32 2.25 18.20 12.7
2.0 19/0.36 2.36 22.20 10.0
2.5 37/0.3 2.78 30.40 7.43
3.0 37/0.32 2.90 33.60 6.63
4.0 37/0.37 3.38 45.40 4.88
5.0 37/0.4 3.53 52.20 4.13
6.0 37/0.45 4.05 65.60 3.30



ETFE Insulation Tinned Silver Stranded Copper Internal Wire Heat Resistant 1

ETFE Insulation Tinned Silver Stranded Copper Internal Wire Heat Resistant 2
