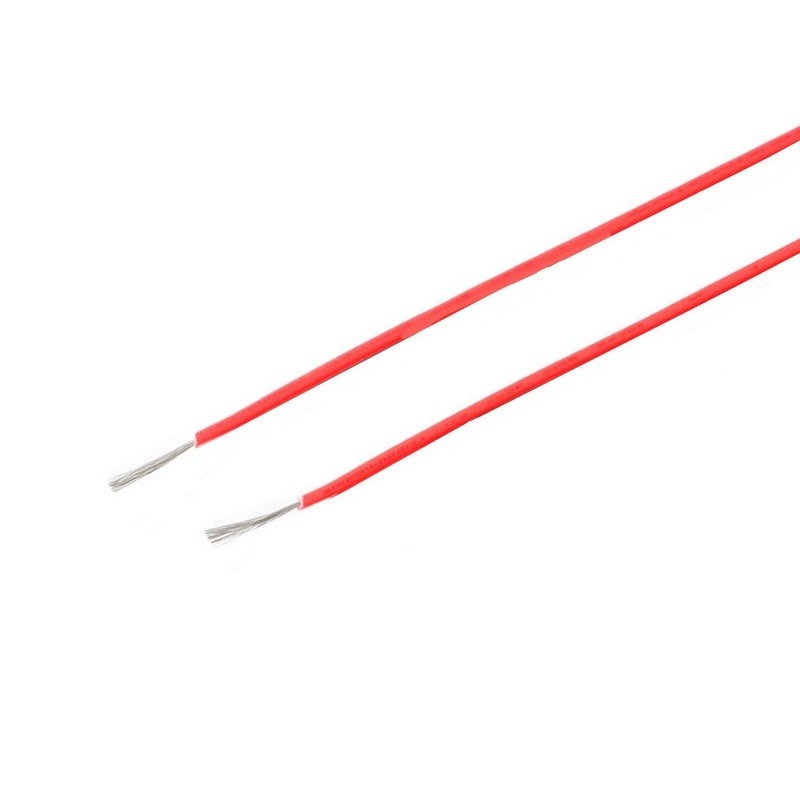

High Temperature 30 AWG ETFE Insulated Wire Manufacturer
Application
1. Aerospace
2. Electronic Applications
3. High-energy radiation environments
About ETFE wire
1. Excellent mechanical strength and toughness
2. Good resistance to heat and chemicals
3. High specific dielectric strength
4. Oil, flame, and radiation resistance
Properties
1. Insulation: ETFE insulation
2. Conductor: Tinned copper wire(Solid or Stranded)
3. Operating temperature :-65℃~+150℃
4. Rated voltage :AC600V or below
5. Insulation resistance(20 ℃) : not less than 100 m Ω. Km
6.Voltage test (AC) : insulation wire 2200V/1min, shielding wire 1500V/30S no breakdown
7. Color: red, yellow, blue, white, black, transparent, brown, green, yellow and green
| Wire gauge | Section area (mm2) |
Conductor construction piece/diameter (mm) |
Insulation thickness (mm) |
Reference OD (mm) |
Max. Conductor resistance at 20℃ (Ω/Km) |
| 28awg | 0.08mm2 | 7/0.12 | 0.15 | 0.66 | 239 |
| 26awg | 0.14mm2 | 7/0.16 | 0.15 | 0.78 | 239 |
| 24awg | 0.2mm2 | 7/0.2 | 0.15 | 0.9 | 150 |
| 22awg | 0.4/0.3mm2 | 19/0.16 | 0.15 | 1.1 | 94.2 |
| 20awg | 0.6/0.5mm2 | 19/0.2 | 0.15 | 1.3 | 32.4 |
| 18awg | 1mm2 | 19/0.26 | 0.2 | 1.7 | 20.4 |
| 16awg | 1.2mm2 | 19/0.28 | 0.2 | 1.8 | 16.6 |
| 14awg | 2mm2 | 19/0.36 | 0.33 | 2.46 | 10 |
| 12awg | 3mm2 | 37/0.32 | 0.33 | 2.9 | 6.63 |
| 10awg | 5mm2 | 37/0.4 | 0.33 | 3.46 | 4.13 |
Noted:Specification and core no. are not limited to above regulation,they could be customized.
