ETFE Hook Up Wire 20 22 Gauge Single Core Electric Wire

100m
MOQ
Negotiation
Price
ETFE Hook Up Wire 20 22 Gauge Single Core Electric Wire
Features Gallery Product Description Request A Quote
Features
Specifications
Features: High Temperature Resistance
Application: Internal Wiring
Insulation Materials: ETFE Insulated
Operating Temperature: -65~+150℃
Conductor Materials: Tinned Copper
Standard Color: 10 Colors Or As Requirements
Wire Gauge: 30 AWG ~10 AWG
Voltage Rating: AC 600V
Customized Wire: Available As Per Technical Datasheet
After-sales: Lifelong Maintenance
High Light:

22 Gauge ETFE Hook Up Wire

,

Single Core ETFE Hook Up Wire

,

AC 600V ETFE Insulated Wire

Basic Infomation
Place of Origin: China
Brand Name: SANCO
Certification: ISO9001
Model Number: FF40-1
Payment & Shipping Terms
Packaging Details: Cable tray or Packing in roll with carton box
Delivery Time: 3~8days
Supply Ability: 250000M/Per Month
Product Description

ETFE Hook Up Wire 20 22 Gauge Single Core Electric Wire



About ETFE wire

ETFE is the strongest fluoroplastic. While maintaining the good heat resistance, chemical resistance and electrical insulation properties of PTFE, it has greatly improved radiation resistance and mechanical properties. The tensile strength can reach 50MPa, which is close to poly 2 times that of tetrafluoroethylene



Application:The ETFE insulated wire suitable for wiring in electronic equipment which has a tendency to build up and retain heat, and in environments where they will be exposed to oil or chemicals, such as in chemical plants or for application in industrial robots



Properties

1. Nominal Voltage: 600V
2. Temperature Range: -65ºC to 150ºC
3. Conductor: Tinned copper
4. Insulator: ETFE Insulated
5. O.D.Tolerance :±0.10mm
6. Color:black-brown-red-orange-yellow-green-blue-violet-gray-white-green/yellow.ect



ETFE Hook Up Wire 20 22 Gauge Single Core Electric Wire 0

Wire gauge Section area
(mm2)
Conductor construction
piece/diameter
(mm)
Insulation thickness
(mm)
Reference OD
(mm)
Max. Conductor resistance at 20
(Ω/Km)
28 awg 0.08mm2 7/0.12 0.15 0.66 239
26 awg 0.14mm2 7/0.16 0.15 0.78 239
24 awg 0.2mm2 7/0.2 0.15 0.9 150
22 awg 0.4/0.3mm2 19/0.16 0.15 1.1 94.2
20 awg 0.6/0.5mm2 19/0.2 0.15 1.3 32.4
18 awg 1mm2 19/0.26 0.2 1.7 20.4
16 awg 1.2mm2 19/0.28 0.2 1.8 16.6
14 awg 2mm2 19/0.36 0.33 2.46 10
12 awg 3mm2 37/0.32 0.33 2.9 6.63
10 awg 5mm2 37/0.4 0.33 3.46 4.13

Noted:Specification and core no. are not limited to above regulation,they could be customized.

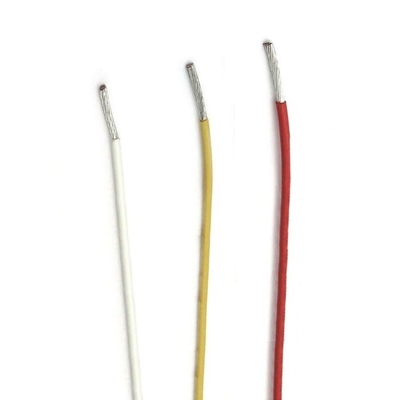

ETFE Hook Up Wire 20 22 Gauge Single Core Electric Wire 1

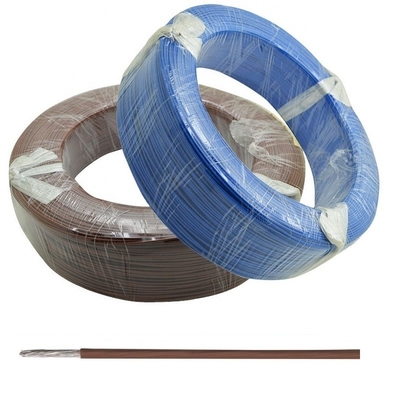

ETFE Hook Up Wire 20 22 Gauge Single Core Electric Wire 2
