ETFE Tefzel Insulated Tin Plated Wire 150 Degree Temperature Resistant

ETFE Tefzel Insulated Tin Plated Wire 150 Degree Temperature Resistant
Features Gallery Product Description Request A Quote
Features: Heat Resistance, Oil, Flame, And Radiation Resistance
Insulation Material: ETFE Insulated
Working Temperature: -65~150℃
Color: Grey, White, Yellow, Red, Violet, Green, Blue, Black
Core Number: Single Core Or Multicores
Wire Gauge: 14, 16, 18, 20, 22, 24, 26, 28, 30 AWG...
Conductor Conductor: Tinned Plated Copper
Rated Voltage: AC 600V And Below
Shielding: Optional
Customized Product: Available As Per Drawing Or Sample
High Light:

ETFE Insulated Tin Plated Wire


Tefzel Insulated Tin Plated Wire


150Deg Temperature Resistant Tinned Wire

Basic Infomation
Place of Origin: China
Brand Name: SANCO
Certification: ISO9001
Model Number: FF40-1
Payment & Shipping Terms
Packaging Details: Cable tray or Packing in roll with carton box
Delivery Time: 3~8days
Supply Ability: 250000M/Per Month
Product Description

150 Degree Temperature Resistant ETFE Tefzel Insulated Tinned Plated Wire



1. Small diameter saves space

2. Excellent low temperature characteristics
3. Excellent electric characteristics,mechanical strength heat resistance, chemical resistance, and flame resistance.
4. ETFE insulated wire offers a higher tensile and impact strength than PTFE as well as greater dielectric strength and radiation resistance.

5. Oil, flame, and radiation resistance



Properties of ETFE Wire

Operating Temperature: -65 +150

Voltage Rating: AC 600V and below

Insulated: ETFE Insulated

Conductor Material: Tinned or Silver Plated copper

Conductor Type: Stranded or Solid

Core Number: Single Core or Multicores

Insulation Resistance(20℃): ≥100MΩ.km

Available Colors: White, Yellow, Red, Purple, Green, Brown, Grey, Blue, Orange, Black...

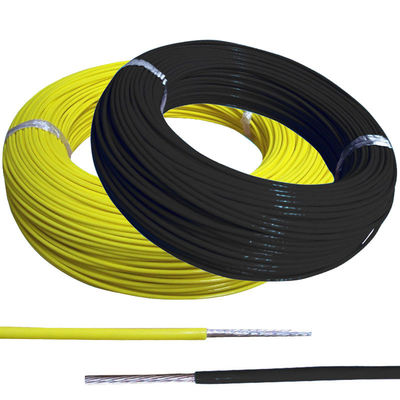

ETFE Tefzel Insulated Tin Plated Wire 150 Degree Temperature Resistant 0


Cross-section area
Reference outerdiameter
Reference weight
Max.DC resistance at 20
FF40-1 FF40-1
0.14 19/0.1 1.02 2.66 136.0
0.2 19/0.12 1.14 3.82 90.4
0.4/0.3 19/0.16 1.32 5.48 53.1
0.6/0.5 19/0.2 1.52 7.98 32.4
0.75 19/0.23 1.70 9.99 24.6
1.0 19/0.26 1.80 11.70 20.4
1.2 19/0.28 2.01 14.80 16.6
1.5 19/0.32 2.25 18.20 12.7
2.0 19/0.36 2.36 22.20 10.0
2.5 37/0.3 2.78 30.40 7.43
3.0 37/0.32 2.90 33.60 6.63
4.0 37/0.37 3.38 45.40 4.88
5.0 37/0.4 3.53 52.20 4.13
6.0 37/0.45 4.05 65.60 3.30

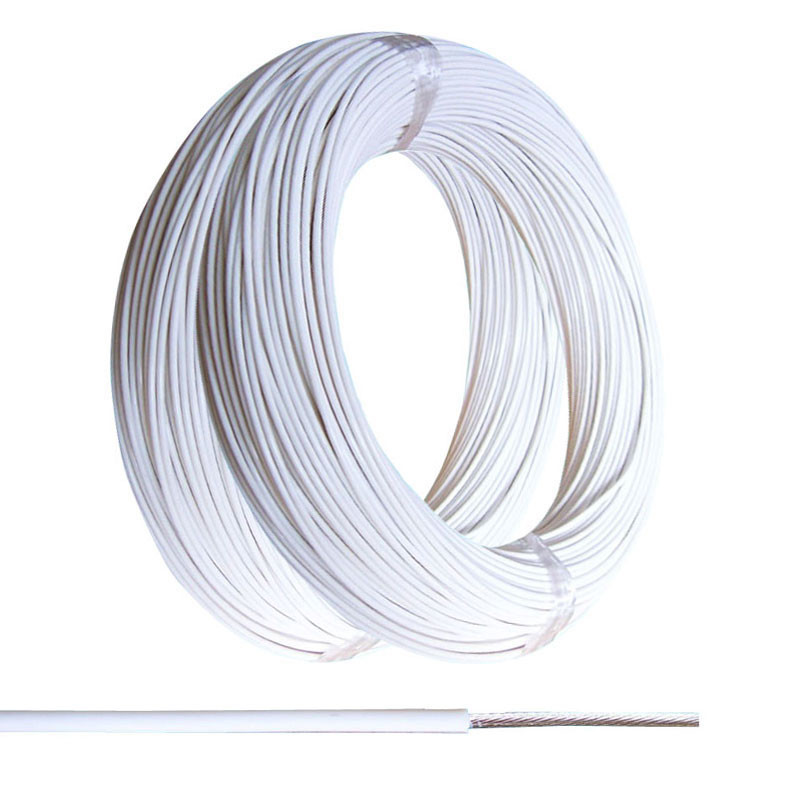

ETFE Tefzel Insulated Tin Plated Wire 150 Degree Temperature Resistant 1

ETFE Tefzel Insulated Tin Plated Wire 150 Degree Temperature Resistant 2


1).Q:Are you a manufacturer or trading company?

A:We are a professional manufacturer,research,development and sales of military and consumer cable wire and cable compound.The company is located in Hunan Province,China

2).Q:What is your company's strengths?

A:We are a stable wire and cable supplier of China's aerospace and military,21 years experience,cable compounds produced by ourselves,This is how we keep superior quality and competitive offers for global valued customers.

3).Q:How do you guarantee your product quality?

A:Quality is our priority,we treat quality control as the first most important thing from the very beginning to the very end.In design,materials procurement,manufacturing semi-finished products testing,finished product inspection such as strick control to ensure product quality.

4).Q:What's the warranty of your products?

A:We provide 1 year complete warranty service,If the products have quality problems,We plant to replace or return unconditionally.

5).Q:How can I get the samples?

A: We can make the sample order for you. And if the sample qty is small and available in our stock, we can provide you by free, but the freight should be absorbed by your side.
