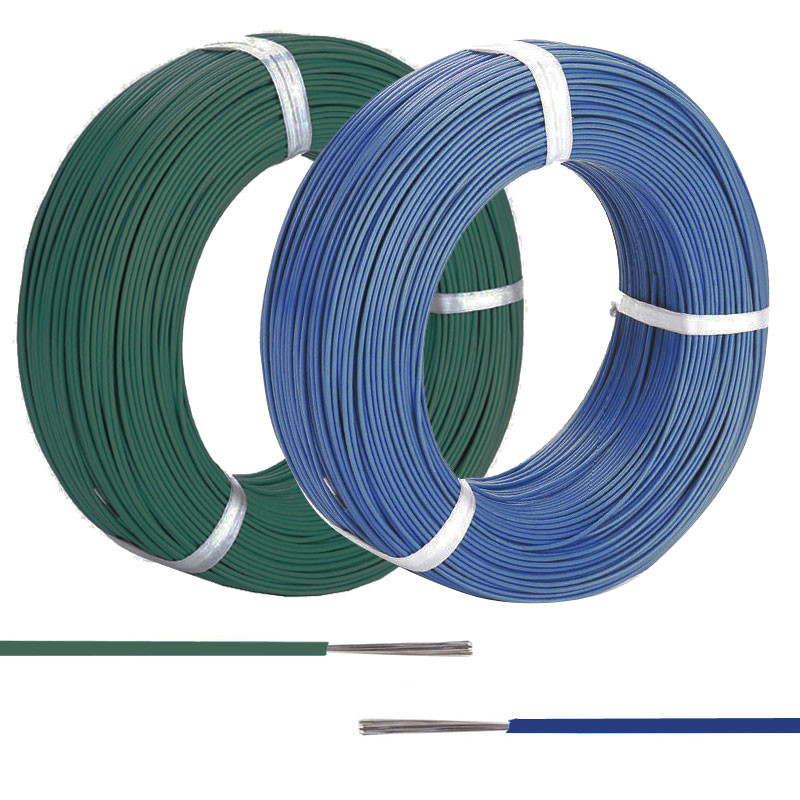

20 Gauge ETFE Tefzel Insulation 150 Degree Tinned Plated Stranded Copper Wire
About tefzel wire
1. Excellent mechanical strength and toughness
2. Good resistance to heat and chemicals
3. High specific dielectric strength
4. Oil, flame, and radiation resistance
Properties of ETFE Wire
Operating Temperature: -65℃ to +150℃
Voltage Rating: AC 600V and Below
Insulated Materail: ETFE Insulated
Conductor Material: Tinned Pated Copper
Conductor Type: Stranded
Insulation Resistance(20℃): ≥100MΩ.km
Available Colors: Black, White, Yellow, Red, Viloet, Green, Brown, Gray, Blue, Orange...
| Cross-section area (mm²) |
Conductor (mm) |
Reference outerdiameter (mm) |
Reference weight kg/km |
Max.DC resistance at 20℃ (Ω/Km) |
| FF40-1 | FF40-1 | |||
| 0.14 | 19/0.1 | 1.02 | 2.66 | 136.0 |
| 0.2 | 19/0.12 | 1.14 | 3.82 | 90.4 |
| 0.4/0.3 | 19/0.16 | 1.32 | 5.48 | 53.1 |
| 0.6/0.5 | 19/0.2 | 1.52 | 7.98 | 32.4 |
| 0.75 | 19/0.23 | 1.70 | 9.99 | 24.6 |
| 1.0 | 19/0.26 | 1.80 | 11.70 | 20.4 |
| 1.2 | 19/0.28 | 2.01 | 14.80 | 16.6 |
| 1.5 | 19/0.32 | 2.25 | 18.20 | 12.7 |
| 2.0 | 19/0.36 | 2.36 | 22.20 | 10.0 |
| 2.5 | 37/0.3 | 2.78 | 30.40 | 7.43 |
| 3.0 | 37/0.32 | 2.90 | 33.60 | 6.63 |
| 4.0 | 37/0.37 | 3.38 | 45.40 | 4.88 |
| 5.0 | 37/0.4 | 3.53 | 52.20 | 4.13 |
| 6.0 | 37/0.45 | 4.05 | 65.60 | 3.30 |
RFQ:
1).Q:Are you a manufacturer or trading company?
A:We are a professional manufacturer,research,development and sales of military and consumer cable wire and cable compound.The company is located in Hunan Province,China
2).Q:What is your company's strengths?
A:We are a stable wire and cable supplier of China's aerospace and military,21 years experience,cable compounds produced by ourselves,This is how we keep superior quality and competitive offers for global valued customers.
3).Q:How do you guarantee your product quality?
A:Quality is our priority,we treat quality control as the first most important thing from the very beginning to the very end.In design,materials procurement,manufacturing semi-finished products testing,finished product inspection such as strick control to ensure product quality.
4).Q:What's the warranty of your products?
A:We provide 1 year complete warranty service,If the products have quality problems,We plant to replace or return unconditionally.
5).Q:How can I get the samples?
A: We can make the sample order for you. And if the sample qty is small and available in our stock, we can provide you by free, but the freight should be absorbed by your side.
