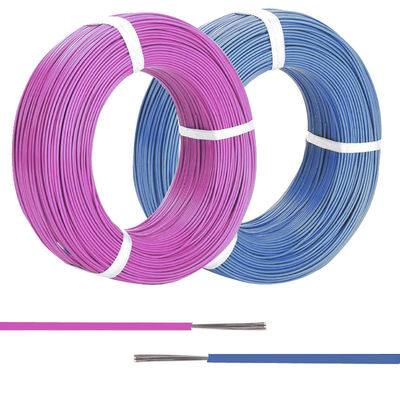

High Temperature Extruded ETFE Tefzel Wire, 300V Tinned Plated Stranded Copper Cable

100m
MOQ
USD0.1~3/M
Price
High Temperature Extruded ETFE Tefzel Wire, 300V Tinned Plated Stranded Copper Cable
Features Gallery Product Description Request A Quote
Features
Specifications
Features: Good Resistance To Heat And Chemicals
Insulation Material: ETFE Insulated
Working Temperature: -65~150℃
Color: Black, White, Purple, Yellow, Red, Gray, Green, Blue, Orange...
Core Number: 1 Core, 2 Cores, 3 Cores, 4 Cores, 5 Cores
Wire Gauge: 8 ~ 28 AWG
Conductor Materials: Tinned Or Silver Plated Copper
Rated Voltage: AC 600V And Below
Customized Product: Yes
Basic Infomation
Place of Origin: China
Brand Name: SANCO
Certification: ISO9001
Model Number: FF40-1
Payment & Shipping Terms
Packaging Details: Cable tray or Packing in roll with carton box
Delivery Time: 3~8days
Supply Ability: 250000M/Per Month
Product Description

High Temperature Extruded ETFE Tefzel Wire, 300V Tinned Plated Stranded Copper Cable



About tefzel wire

1. Excellent mechanical strength and toughness
2. Good resistance to heat and chemicals
3. High specific dielectric strength
4. Oil, flame, and radiation resistance





Properties of ETFE Wire

Operating Temperature: -65 to +150

Voltage Rating: AC 600V and Below

Insulated Materail: ETFE Insulation

Conductor Material: Tinned or Silver Pated Copper

Conductor Type: Stranded or Solid

Insulation Resistance(20℃): ≥100MΩ.km

Available Colors: Black, White, Yellow, Red, Purple, Green, Brown, Grey, Blue, Orange...



High Temperature Extruded ETFE Tefzel Wire, 300V Tinned Plated Stranded Copper Cable 0





Cross-section area
(mm²)
Conductor
(mm)
Reference outerdiameter
(mm)
Reference weight
kg/km
Max.DC resistance at 20
(Ω/Km)
FF40-1 FF40-1
0.14 19/0.1 1.02 2.66 136.0
0.2 19/0.12 1.14 3.82 90.4
0.4/0.3 19/0.16 1.32 5.48 53.1
0.6/0.5 19/0.2 1.52 7.98 32.4
0.75 19/0.23 1.70 9.99 24.6
1.0 19/0.26 1.80 11.70 20.4
1.2 19/0.28 2.01 14.80 16.6
1.5 19/0.32 2.25 18.20 12.7
2.0 19/0.36 2.36 22.20 10.0
2.5 37/0.3 2.78 30.40 7.43
3.0 37/0.32 2.90 33.60 6.63
4.0 37/0.37 3.38 45.40 4.88
5.0 37/0.4 3.53 52.20 4.13
6.0 37/0.45 4.05 65.60 3.30



High Temperature Extruded ETFE Tefzel Wire, 300V Tinned Plated Stranded Copper Cable 1

High Temperature Extruded ETFE Tefzel Wire, 300V Tinned Plated Stranded Copper Cable 2

RFQ:

1).Q:Are you a manufacturer or trading company?

A:We are a professional manufacturer,research,development and sales of military and consumer cable wire and cable compound.The company is located in Hunan Province,China

2).Q:What is your company's strengths?

A:We are a stable wire and cable supplier of China's aerospace and military,21 years experience,cable compounds produced by ourselves,This is how we keep superior quality and competitive offers for global valued customers.

3).Q:How do you guarantee your product quality?

A:Quality is our priority,we treat quality control as the first most important thing from the very beginning to the very end.In design,materials procurement,manufacturing semi-finished products testing,finished product inspection such as strick control to ensure product quality.

4).Q:What's the warranty of your products?

A:We provide 1 year complete warranty service,If the products have quality problems,We plant to replace or return unconditionally.

5).Q:How can I get the samples?

A: We can make the sample order for you. And if the sample qty is small and available in our stock, we can provide you by free, but the freight should be absorbed by your side.
