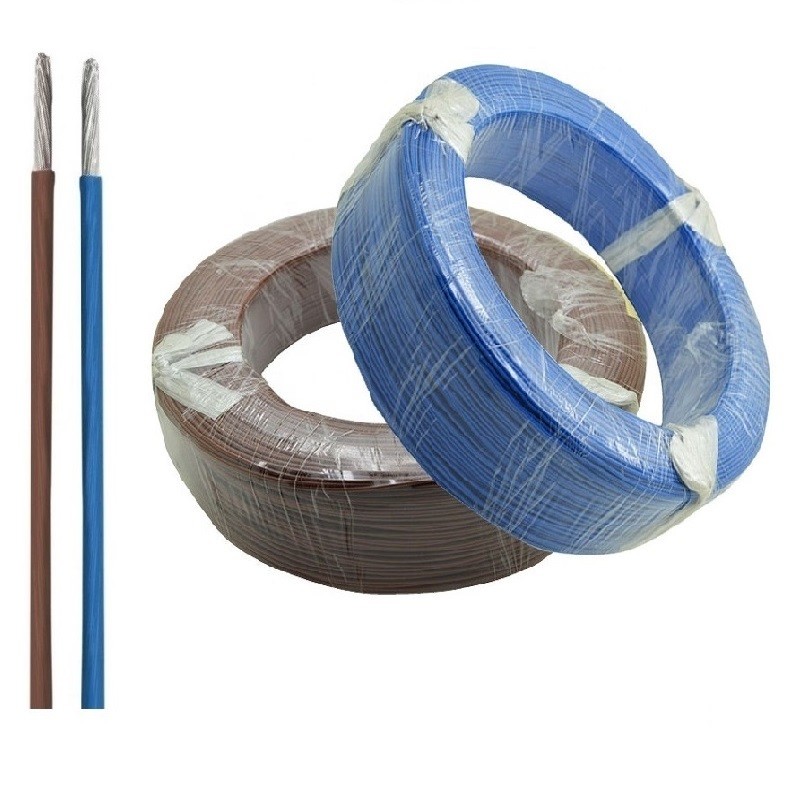

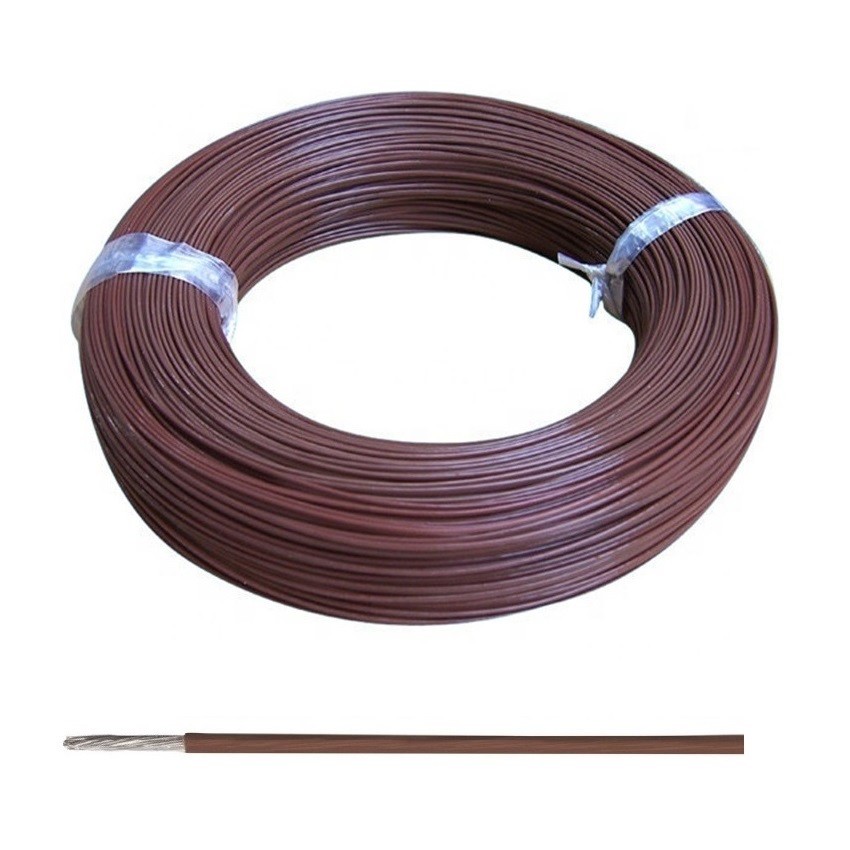

Tinned Coated 22 AWG ETFE Electric Wire Manufacturer
What is ETFE electric wire
ETFE electric wire is extruded and covered with etfe resin over tinned coated annealed copper wire.
1. Excellent corrosion resistance, almost insoluble in any organic solvent, oil resistance, strong acid, strong alkali, strong oxidant.
2. Excellent electrical insulation performance, high voltage resistance, low high-frequency loss, no moisture absorption, high insulation resistance.
3. With excellent flame retardant, aging resistance, long service life
Application of ETFE electric wire
1. Aviation Wiring
2. Aerospace Wiring
3. Electronics Wiring
4. Medical Wiring
5. Appliance Wiring
6. Lighting Industry
7. Military Applications
8. Oil and Gas Industry Applications
9. Chemical Industry Applications
Properties
1. Insulation: ETFE insulation
2. Conductor: Tinned copper wire(Solid or Stranded)
3. Operating temperature :-65℃~+150℃
4. Rated voltage :AC600V or below
5. Insulation resistance(20 ℃) : not less than 100 m Ω. Km
6.Voltage test (AC) : insulation wire 2200V/1min, shielding wire 1500V/30S no breakdown

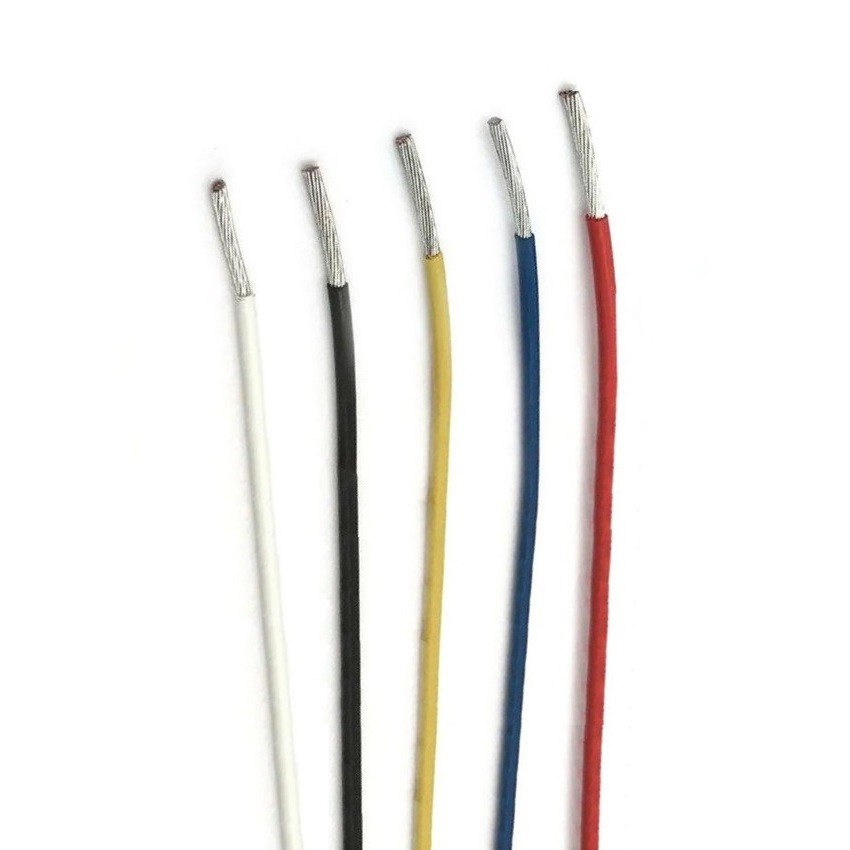

7. Color: red, yellow, blue, white, black, transparent, brown, green, yellow and green
AWG | No. of conductor. | Diameter | Thickness of insulator | Over diameter |
NO/mm | mm | mm | mm | |
32 awg | 7/0.08 | 0.24 | 0.2 | 0.4 |
30 awg | 1/0.254 | 0.254 | 0.15 | 0.55 |
28 awg | 1/0.32 | 0.32 | 0.18 | 0.67 |
26 awg | 7/0.16 | 0.48 | 0.23 | 0.92 |
19/0.1 | 0.5 | 0.23 | 0.96 | |
24 awg | 7/0.203 | 0.61 | 0.23 | 1.07 |
19/0.12 | 0.6 | 0.23 | 1.06 | |
22 awg | 7/0.254 | 0.76 | 0.23 | 1.22 |
19/0.16 | 0.8 | 0.23 | 1.26 | |
20 awg | 7/0.31 | 0.94 | 0.23 | 1.4 |
19/0.19 | 0.96 | 0.23 | 1.42 | |
18 awg | 7/0.39 | 1.17 | 0.23 | 1.63 |
19/0.235 | 1.18 | 0.23 | 1.64 | |
16 awg | 7/0.5 | 1.5 | 0.23 | 1.96 |
19/0.3 | 1.51 | 0.23 | 1.97 | |
14 awg | 19/0.37 | 1.86 | 0.3 | 2.46 |
12 awg | 19/0.47 | 2.35 | 0.3 | 2.95 |
10 awg | 37/0.43 | 3.1 | 0.3 | 3.70 |
Noted:Specification and core no. are not limited to above regulation,they could be customized.
