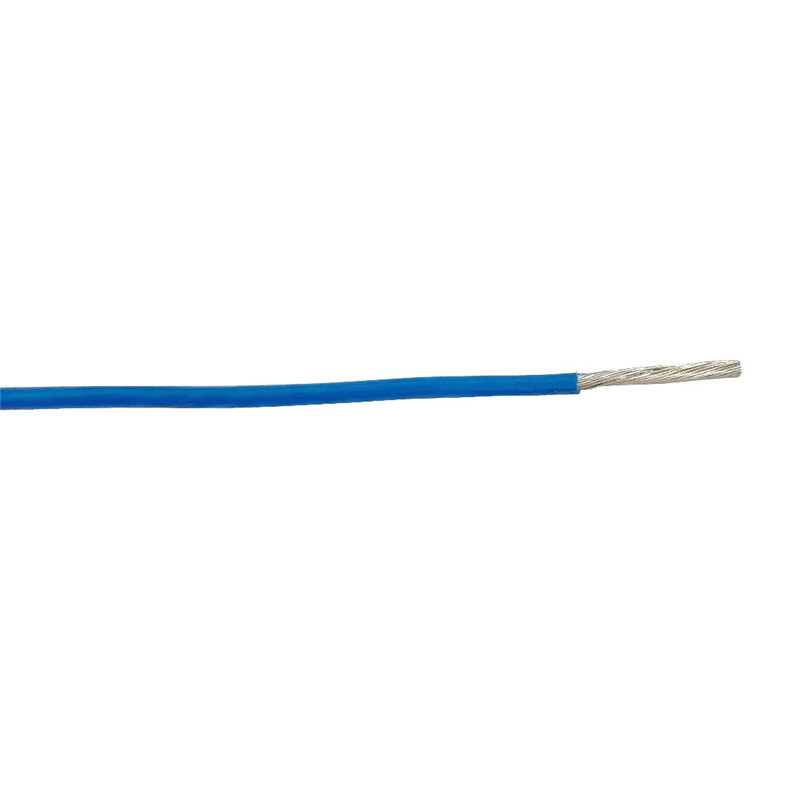

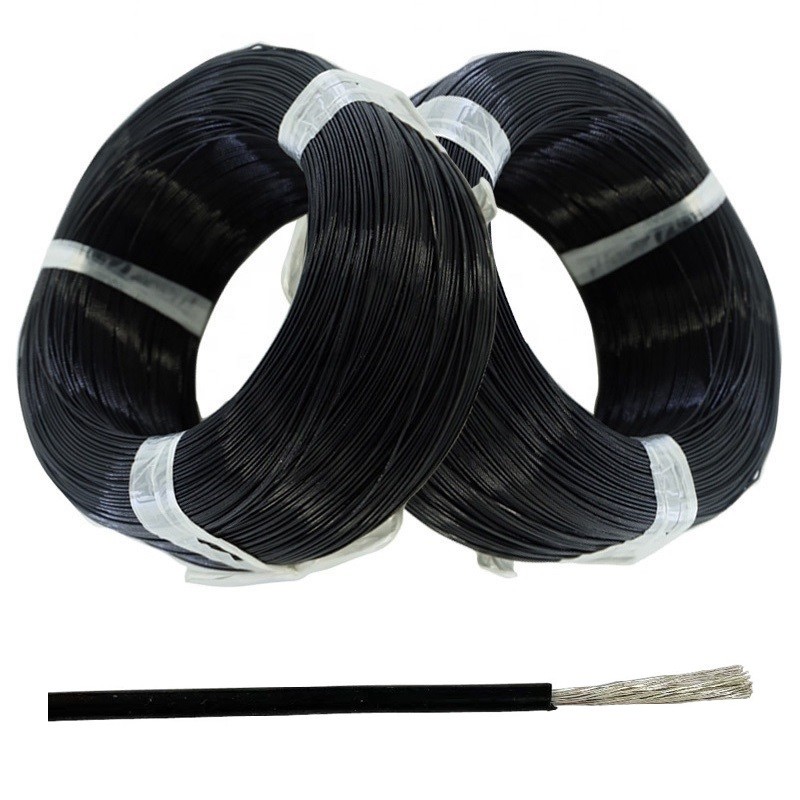

Supply AWG20 Tefzel Wire Insulation Etfe Electric Wire
What is ETFE Electric wire?
1. ETFE (ethylene tetrafluoroethylene) electric wire is another type of wire commonly used in various electrical and communication applications.
2. ETFE is a thermoplastic polymer that has excellent resistance to heat, cold, and chemicals.
3. ETFE electric wire is known for its durability, flexibility, and resistance to abrasion, high temperatures, and harsh environments. It is suitable for various industries, including aerospace, automotive, telecommunications, and industrial applications.
4. In addition, ETFE electric wire is lightweight and provides low-friction coating, making it ideal for applications where reducing weight and friction is critical.
5. Overall, ETFE electric wire is a reliable and high-performance choice for electrical wiring needs.
Properties
1. Insulation: ETFE insulation
2. Conductor: Tinned copper wire(Solid or Stranded)
3. Operating temperature :-65℃~+150℃
4. Rated voltage :AC600V or below
5. Insulation resistance(20 ℃) : not less than 100 m Ω. Km
6. Voltage test (AC) : insulation wire 2200V/1min, shielding wire 1500V/30S no breakdown

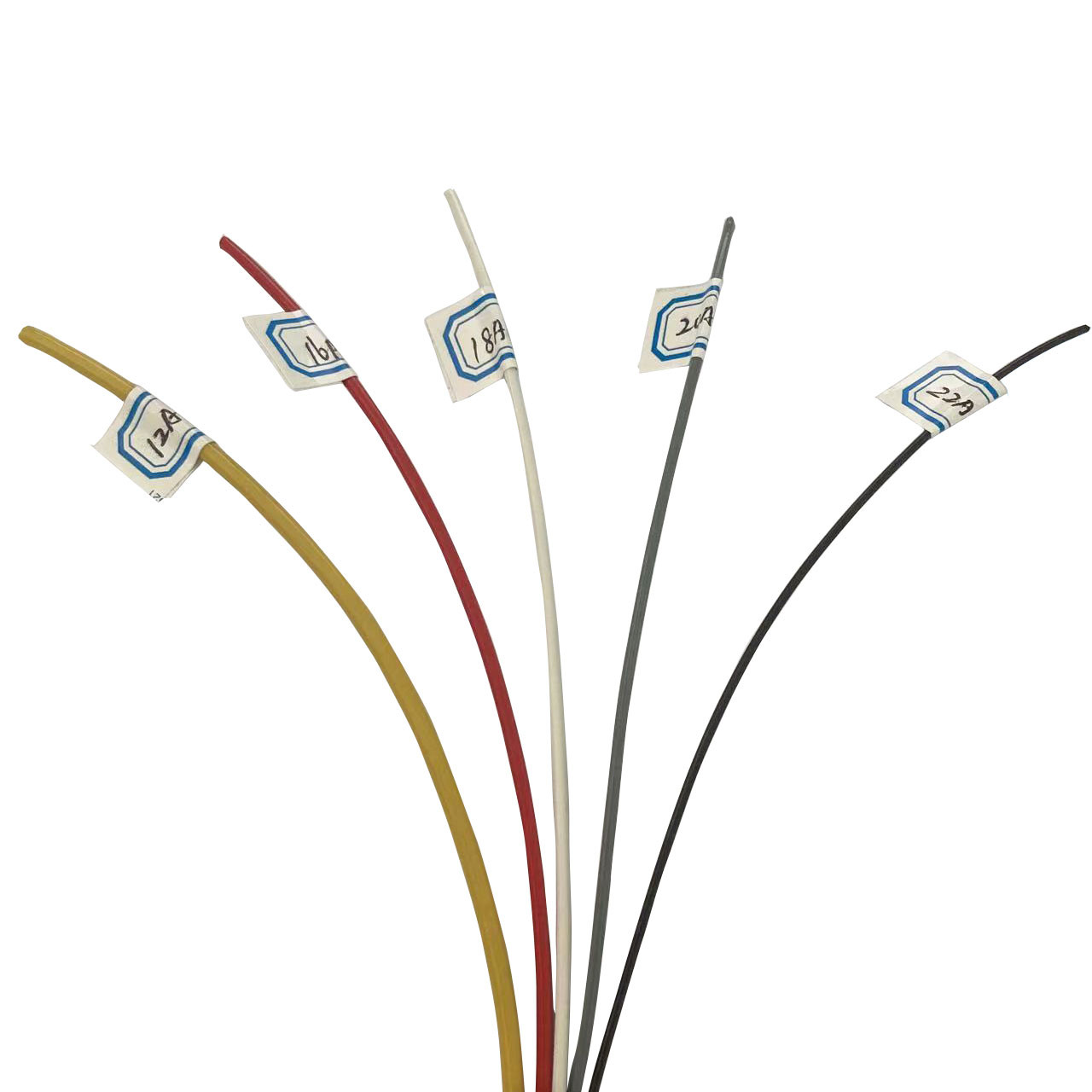

7. Color: red, yellow, blue, white, black, transparent, brown, green, yellow and green
| Wire gauge | Section area (mm2) |
Conductor construction piece/diameter (mm) |
Reference OD (mm) |
Max. Conductor resistance at 20℃ (Ω/Km) |
Reference weight kg/km |
||
| FF40-1 | FF40P11-1 | FF40-1 | FF40P11-1 | ||||
| 26awg | 0.14mm2 | 19/0.1 | 1.02 | 1.52 | 136 | 2.66 | 6.64 |
| 24awg | 0.2mm2 | 19/0.12 | 1.14 | 1.64 | 90.4 | 3.82 | 8.17 |
| 22awg | 0.4/0.3mm2 | 19/0.16 | 1.32 | 1.85 | 53.1 | 5.48 | 10.4 |
| 20awg | 0.6/0.5mm2 | 19/0.2 | 1.52 | 2.02 | 32.4 | 7.98 | 13.5 |
| - | 0.75mm2 | 19/0.23 | 1.7 | 2.2 | 24.6 | 9.99 | 16.1 |
| 18awg | 1mm2 | 19/0.26 | 1.8 | 2.3 | 20.4 | 11.7 | 18.1 |
| 16awg | 1.2mm2 | 19/0.28 | 2.01 | 2.51 | 16.6 | 14.8 | 21.8 |
| - | 1.5mm2 | 19/0.32 | 2.25 | 2.75 | 12.7 | 18.2 | 25.9 |
| 14awg | 2mm2 | 19/0.36 | 2.36 | 2.86 | 10 | 22.2 | 30.3 |
| - | 2.5mm2 | 37/0.37 | 2.78 | 3.31 | 7.43 | 30.4 | 39.9 |
| 12awg | 3mm2 | 37/0.32 | 2.9 | 3.43 | 6.63 | 33.6 | 43.4 |
| - | 4mm2 | 37/0.37 | 3.38 | 3.91 | 4.88 | 45.4 | 56.7 |
| 10awg | 5mm2 | 37/0.4 | 3.53 | 4.06 | 4.13 | 52.2 | 64 |
Noted:Specification and core no. are not limited to above regulation,they could be customized.
